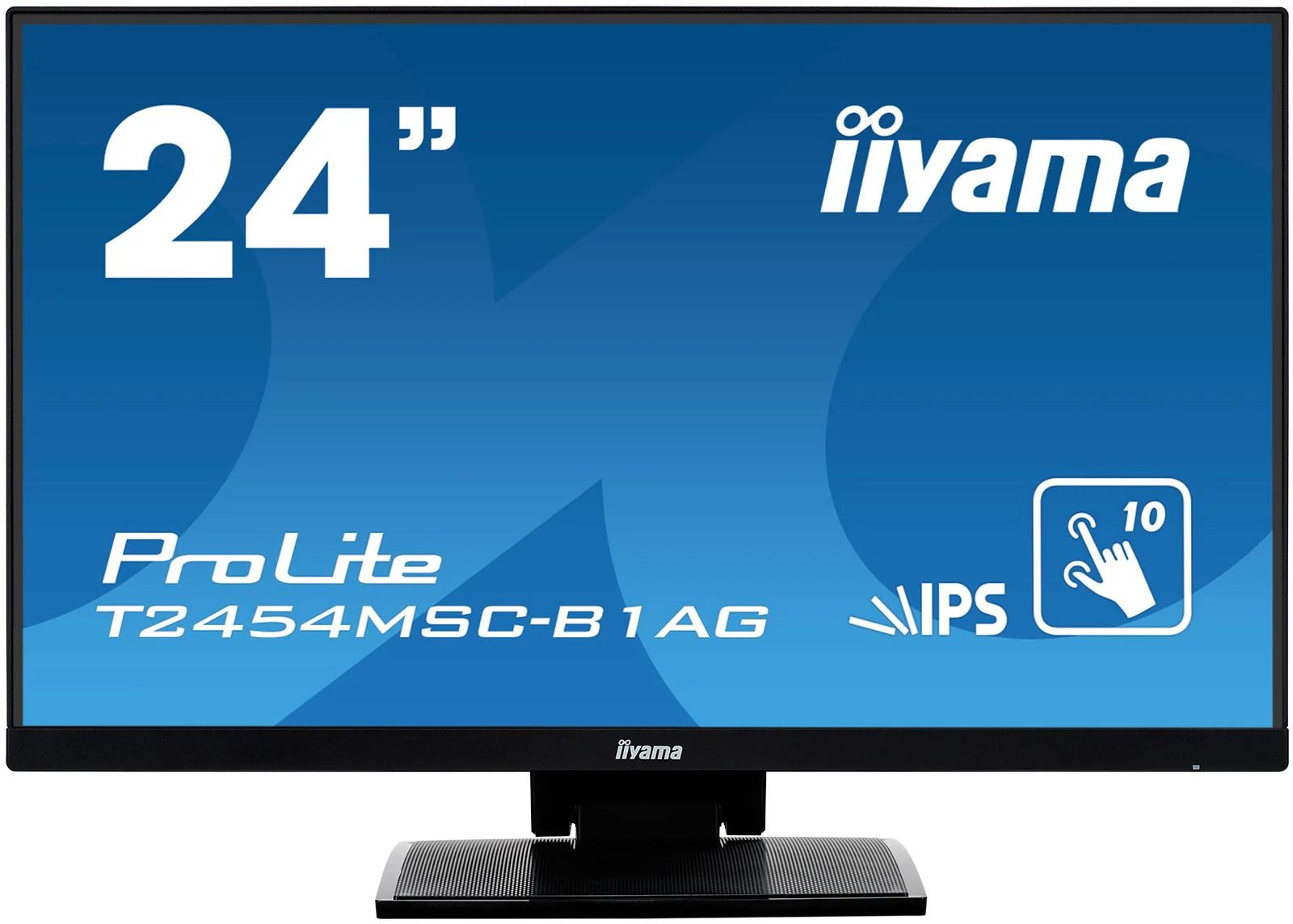

iiyama ProLite T2454MSC-B1AG Computer Monitor 60.5 cm (23.8") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black

Key Features

• Display Size: 23.8 Inches
• Display Resolution: 1920 x 1080
• Aspect Ratio: 16:09
• Display Type: LED
• Speakers: Built-in Speakers
• Camera: No Camera
• Touchscreen: Touchscreen

Overview

24” P-CAP 10pt touch screen featuring IPS panel technology and Anti Glare coating With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2454MSC-B1AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. The ProLite T2454MSC-B1AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations. TOUCH TECHNOLOGY - CAPACITIVE This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen. IPS IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it. AG COATING The Anti Glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks. SPEAKERS This LED monitor is equipped with two high quality stereo speakers. VESA VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.

Display
HDCP	Yes
Screen shape	Flat
Display number of colours	16.78 million colours
Native aspect ratio	16:9
HD type	Full HD
Display technology	LED
Contrast ratio (dynamic)	5000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.274 x 0.274 mm
Horizontal scan range	30 - 80 kHz
Vertical scan range	56 - 75 Hz
Aspect ratio	16:9
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Display resolution	1920 x 1080 pixels
Response time	4 ms
Display diagonal	60.5 cm (23.8")
Contrast ratio (typical)	1000:1
Touchscreen type	Multi-user
Touchscreen	Yes
Number of simultaneous touchpoints	10
Panel type	IPS
Display diagonal (metric)	60.5 cm
Touch technology	Multi-touch
Touchscreen technology	Projected capacitive system
LED backlight	Yes
Display brightness	250 cd/m²
Audio
Built-in speaker(s)	Yes
RMS rated power	4 W
Performance
Built-in speaker(s)	Yes
RMS rated power	4 W
Megapixel (approx.)	2.1 MP
Mean time between failures (MTBF)	30000 h
Built-in microphone	No
Built-in camera	No
AMD FreeSync	No
NVIDIA G-SYNC	No
Windows operating systems supported	Yes
Linux operating systems supported	Yes
OmniTapps Multitouch compatibility	No
Management features
Number of OSD languages	10
On Screen Display (OSD) languages	German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian
Plug and Play	Yes
Multimedia
Built-in speaker(s)	Yes
RMS rated power	4 W
Megapixel (approx.)	2.1 MP
Built-in microphone	No
Built-in camera	No
Design
Certification	CE, TÜV-Bauart, VCCI-B, EAC, ErP, WEEE, REACH, CB
Product colour	Black
International Protection (IP) code	IPX1
Mean time between failures (MTBF)	30000 h
Camera
Megapixel (approx.)	2.1 MP
Built-in camera	No
Ports & interfaces
Number of upstream ports	1
USB Type-A downstream ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDCP	Yes
Audio input	3.5mm
HDMI	Yes
USB Touch port	Yes
Technical details
Height (without stand)	32.2 cm
Depth (without stand)	4.65 cm
Width (without stand)	54 cm
Cable lock slot	Yes
Placement supported	Horizontal/Vertical
Mean time between failures (MTBF)	30000 h
HDMI	Yes
Display viewable area (HxV)	527.04 x 296.46 mm
Built-in microphone	No
Product colour	Black
Sustainability certificates	RoHS
Power supply type	AC
Weight (with stand)	5.5 kg
Touchscreen type	Multi-user
Touchscreen	Yes
Number of simultaneous touchpoints	10
Software
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Tilt angle range	-5 - 90°
Height adjustment	7 cm
Number of OSD languages	10
On Screen Display (OSD) languages	German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian
Plug and Play	Yes
Height adjustment	Yes
Cable lock slot type	Kensington
Tilt adjustment	Yes
Power
Power supply type	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	24 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	F
Energy consumption (SDR) per 1000 hours	20 kWh
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Packaging content
Quick start guide	Yes
Cables included	AC, HDMI, USB, VGA
Weight & dimensions
Height (without stand)	32.2 cm
Depth (without stand)	4.65 cm
Width (without stand)	54 cm
Width (with stand)	540.5 mm
Depth (with stand)	128 mm
Height (with stand)	388 mm
Weight (with stand)	5.5 kg
Sustainability
Sustainability certificates	RoHS
Packaging data
Quick start guide	Yes
Cables included	AC, HDMI, USB, VGA
Logistics data
Harmonized System (HS) code	85285210
Other features
Height (without stand)	32.2 cm
Depth (without stand)	4.65 cm
Width (without stand)	54 cm
Quick start guide	Yes
HDMI	Yes
Energy efficiency scale	A to G
Power supply type	AC
Dimensions (W x D x H) with stand	540.5 x 128 x 388 mm
Placement supported	Horizontal/Vertical
Mean time between failures (MTBF)	30000 h
Display viewable area (HxV)	527.04 x 296.46 mm
Touchscreen type	Multi-user
Touchscreen	Yes
Number of simultaneous touchpoints	10
Full HD	Yes
Certificates
Certification	CE, TÜV-Bauart, VCCI-B, EAC, ErP, WEEE, REACH, CB
