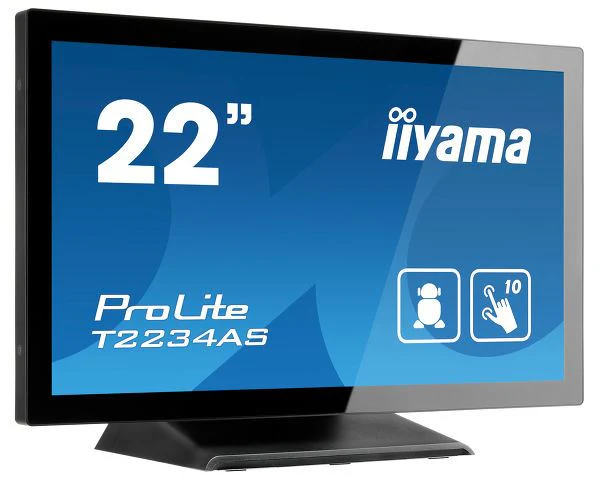

iiyama ProLite T2234AS-B1 Computer Monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD Touchscreen Multi-user Black

Key Features

• Display Size: 21.5 Inches
• Display Resolution: 1920 x 1080
• Aspect Ratio: 16:09
• Display Type:
• Speakers: Built-in Speakers
• Camera: No Camera
• Touchscreen: Touchscreen

Overview

22” PCAP 10pt touch screen with Android Connect and go with the ProLite T2234AS-B1, the all-in-one monitor solution for shops, retail or information desks. This 21.5” PCAP 10-point touchscreen with Android allows users to directly connect and operate the monitor from any device. The HDMI output makes it easy to connect a second customer-facing display for dynamic content and advertising. The robust screen comes with a rugged bezel and an IP65 rating, meaning the monitor is dust and water resistant from the front. Cables can be neatly tied with the special cable cover, so they cannot come loose or move around. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect interactive display for instore retail. Touch technology - Capacitive This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

Display
HDCP	Yes
Screen shape	Flat
Display number of colours	16.78 million colours
Native aspect ratio	16:9
HD type	Full HD
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.247 x 0.247 mm
Aspect ratio	16:9
Display resolution	1920 x 1080 pixels
Response time	8 ms
Display diagonal	54.6 cm (21.5")
Contrast ratio (typical)	1000:1
Surface hardness	7H
Touchscreen type	Multi-user
Touchscreen	Yes
Number of simultaneous touchpoints	10
Panel type	IPS
Display diagonal (metric)	55 cm
Touch technology	Multi-touch
Touchscreen technology	Projected capacitive system
LED backlight	Yes
Display brightness	305 cd/m²
Audio
Built-in speaker(s)	Yes
RMS rated power	4 W
Performance
Built-in speaker(s)	Yes
RMS rated power	4 W
Megapixel (approx.)	2.1 MP
Compatible memory cards	SD
Card reader integrated	Yes
Built-in microphone	No
Built-in camera	No
AMD FreeSync	No
NVIDIA G-SYNC	No
Operating system installed	Android
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Operating system version	8.1
Management features
Plug and Play	Yes
Network
Ethernet LAN (RJ-45) ports	1
Bluetooth	Yes
Bluetooth version	4.0
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi	Yes
Ethernet LAN	Yes
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
RMS rated power	4 W
Megapixel (approx.)	2.1 MP
Built-in microphone	No
Built-in camera	No
Design
Certification	CE, CU, cULus, CCC
Product colour	Black
International Protection (IP) code	IP65
Glass thickness	2.5 mm
Camera
Megapixel (approx.)	2.1 MP
Built-in camera	No
Ports & interfaces
USB Type-A downstream ports quantity	4
HDMI ports quantity	1
HDCP	Yes
HDMI	Yes
Compatible memory cards	SD
Card reader integrated	Yes
RS-232C	Yes
Bluetooth	Yes
Bluetooth version	4.0
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Technical details
Placement supported	Horizontal/Vertical
HDMI	Yes
Compatible memory cards	SD
Card reader integrated	Yes
Built-in microphone	No
Product colour	Black
Built-in processor	Yes
Power supply type	AC
Weight (with stand)	6.6 kg
Surface hardness	7H
Touchscreen type	Multi-user
Touchscreen	Yes
Number of simultaneous touchpoints	10
RS-232C	Yes
Software
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Ergonomics
Wall mountable	Yes
Panel mounting interface	100 x 100 mm
Tilt angle range	-5 - 90°
Plug and Play	Yes
Power
Power supply type	AC
Power consumption (standby)	0.5 W
Power consumption (typical)	25 W
AC adapter output voltage	12 V
Power management	Yes
Packaging content
Quick start guide	Yes
Cables included	AC
AC adapter included	Yes
Weight & dimensions
Width (with stand)	517.5 mm
Depth (with stand)	219 mm
Height (with stand)	351.5 mm
Weight (with stand)	6.6 kg
Thin Client
Operating system installed	Android
Processor frequency	1.8 GHz
Internal memory	2048 MB
Internal memory type	DDR3
Graphics card	Mail T760 MP4
eMMC capacity	16 GB
Packaging data
AC adapter included	Yes
Quick start guide	Yes
Cables included	AC
Logistics data
Harmonized System (HS) code	85285210
Other features
Bluetooth	Yes
Bluetooth version	4.0
Quick start guide	Yes
HDMI	Yes
Surface hardness	7H
Built-in processor	Yes
Power supply type	AC
AC adapter included	Yes
Placement supported	Horizontal/Vertical
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Power management	Yes
Touchscreen type	Multi-user
Touchscreen	Yes
Number of simultaneous touchpoints	10
Full HD	Yes
Certificates
Certification	CE, CU, cULus, CCC
