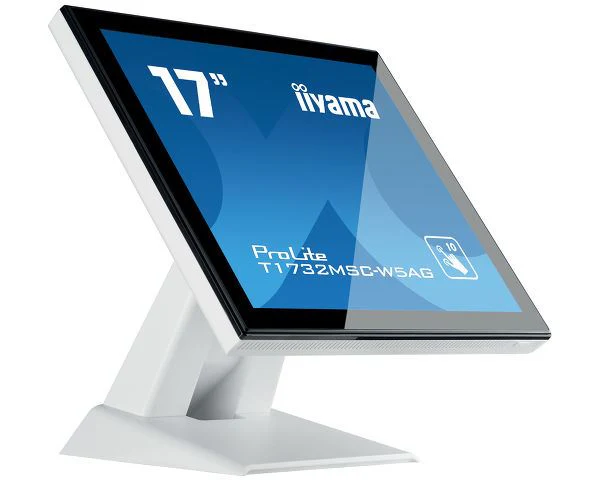

iiyama ProLite T1732MSC-W5AG Computer Monitor 43.2 cm (17") 1280 x 1024 pixels LED Touchscreen White
iiyama ProLite T1732MSC-W5AG Computer Monitor 43.2 cm (17") 1280 x 1024 pixels LED Touchscreen White
iiyama ProLite T1732MSC-W5AG Computer Monitor 43.2 cm (17") 1280 x 1024 pixels LED Touchscreen White
Key Features
- Display Size: 17 Inches
- Display Resolution: 1280 x 1024
- Aspect Ratio: 05:04
- Display Type: LED
- Speakers: Built-in Speakers
- Camera: No Camera
- Touchscreen: Touchscreen
Overview
The ProLite T1732MSC-W5AG 17" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the TouchScreen with an adjustable stand offering full 90 degree positioning angles. Menu Buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the TouchScreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours. Available in black and white. IP The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction. Scratch resistance Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
| Display | |
|---|---|
| HDCP | Yes |
| Screen shape | Flat |
| Display number of colours | 16.78 million colours |
| Native aspect ratio | 5:4 |
| Display technology | LED |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31.4 - 80 kHz |
| Vertical scan range | 56 - 75 Hz |
| Aspect ratio | 5:4 |
| Display resolution | 1280 x 1024 pixels |
| Response time | 5 ms |
| Display diagonal | 43.2 cm (17") |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen | Yes |
| Display diagonal (metric) | 43 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 215 cd/m² |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Megapixel (approx.) | 1.3 MP |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Number of simultaneous touchpoints (Windows 7) | 10 |
| Management features | |
| Plug and Play | Yes |
| Multimedia | |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Megapixel (approx.) | 1.3 MP |
| Design | |
| Certification | CB, CE, TÜV-Bauart, CU, cULus, VCCI |
| Product colour | White |
| International Protection (IP) code | IP54 |
| Camera | |
| Megapixel (approx.) | 1.3 MP |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| Technical details | |
| Height (without stand) | 32 cm |
| Depth (without stand) | 5.45 cm |
| Width (without stand) | 38.7 cm |
| Cable lock slot | Yes |
| HDMI | Yes |
| Product colour | White |
| Power supply type | AC |
| Weight (with stand) | 5.6 kg |
| Touchscreen | Yes |
| Software | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Ergonomics | |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | -5 - 90° |
| Plug and Play | Yes |
| Tilt adjustment | Yes |
| Power | |
| Power supply type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (standby) | 2 W |
| Power consumption (typical) | 20 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 12 kWh |
| Weight & dimensions | |
| Height (without stand) | 32 cm |
| Depth (without stand) | 5.45 cm |
| Width (without stand) | 38.7 cm |
| Weight (with stand) | 5.6 kg |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Other features | |
| Height (without stand) | 32 cm |
| Depth (without stand) | 5.45 cm |
| Width (without stand) | 38.7 cm |
| HDMI | Yes |
| Energy efficiency scale | A to G |
| Power supply type | AC |
| Touchscreen | Yes |
| Certificates | |
| Certification | CB, CE, TÜV-Bauart, CU, cULus, VCCI |
