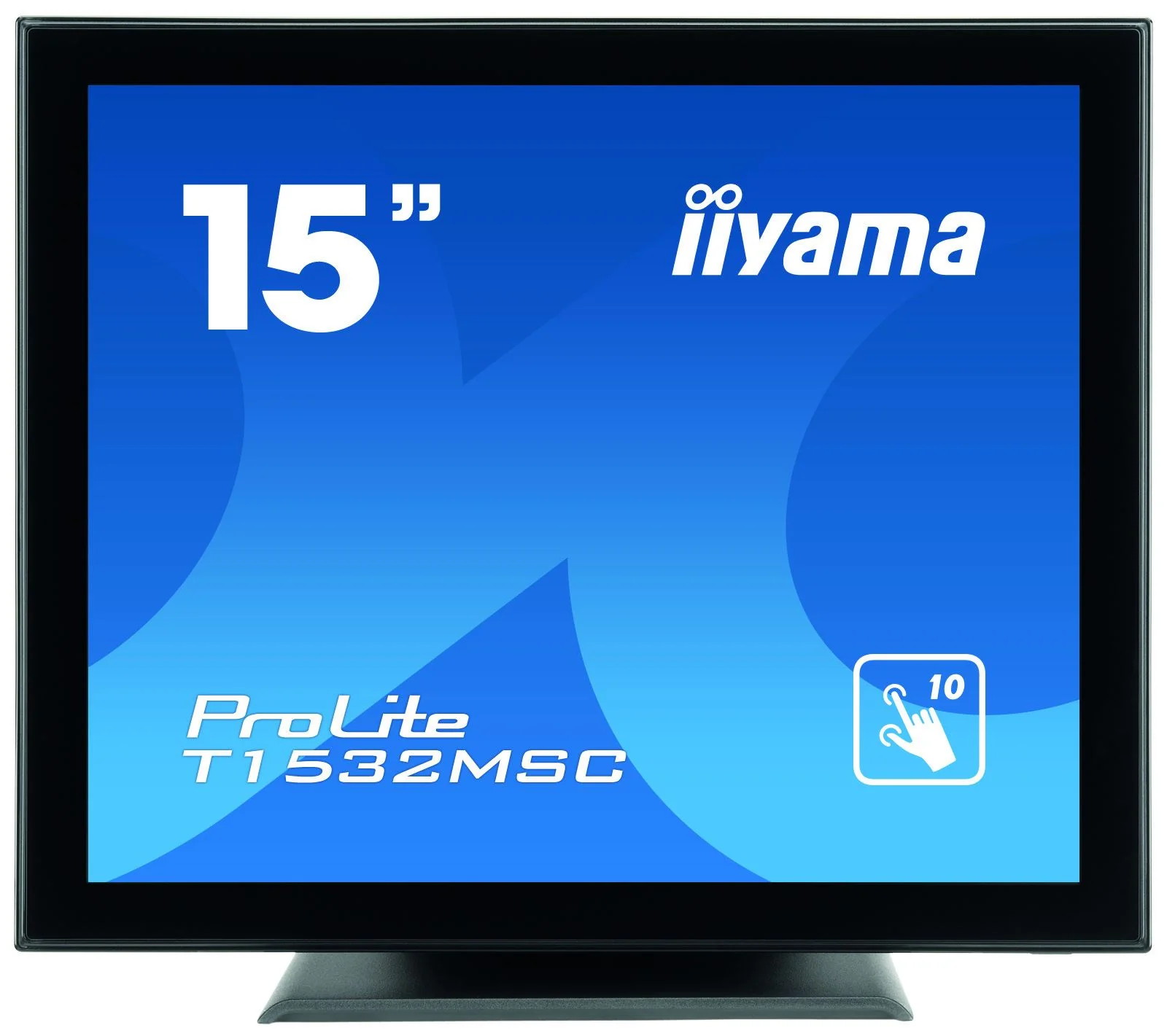

iiyama ProLite T1532MSC-B5AG Computer Monitor 38.1 cm (15") 1024 x 768 pixels LED Touchscreen Black

Key Features

• Display Size: 15 Inches
• Display Resolution: 1024 x 768
• Aspect Ratio: 04:03
• Display Type: LED
• Speakers: Built-in Speakers
• Camera: No Camera
• Touchscreen: Touchscreen

Overview

The ProLite T1532MSC 15" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The anti-glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the TouchScreen with an adjustable stand offering full 90 degree positioning angles. Menu buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the TouchScreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours. TOUCH TECHNOLOGY - CAPACITIVE This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen. AG COATING The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks. IP54 The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water. SCRATCH RESISTANCE Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched. SPEAKERS This LED monitor is equipped with two high quality stereo speakers.

Display
HDCP	Yes
Screen shape	Flat
Display number of colours	16.2 million colours
Native aspect ratio	4:3
Display technology	LED
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Pixel pitch	0.297 x 0.297 mm
Horizontal scan range	31.4 - 60 kHz
Vertical scan range	56 - 75 Hz
Aspect ratio	4:3
Separate H/V sync	Yes
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA)
Display resolution	1024 x 768 pixels
Response time	8 ms
Display diagonal	38.1 cm (15")
Contrast ratio (typical)	700:1
Touchscreen	Yes
Number of simultaneous touchpoints	10
Display diagonal (metric)	38 cm
Touchscreen technology	Projected capacitive system
Display brightness	315 cd/m²
Audio
Built-in speaker(s)	Yes
RMS rated power	2 W
Performance
Built-in speaker(s)	Yes
RMS rated power	2 W
AMD FreeSync	No
NVIDIA G-SYNC	No
Windows operating systems supported	Yes
Linux operating systems supported	Yes
OmniTapps Multitouch compatibility	No
Management features
Number of OSD languages	7
On Screen Display (OSD) languages	German, English, Spanish, French, Italian, Japanese
Plug and Play	Yes
Multimedia
Built-in speaker(s)	Yes
RMS rated power	2 W
Design
Certification	CB, CE, TÜV, CU, cULus, VCCI
Product colour	Black
International Protection (IP) code	IP54
Ports & interfaces
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
HDCP	Yes
Audio input	3.5mm
HDMI	Yes
USB Touch ports quantity	1
USB Touch port	Yes
Technical details
Cable lock slot	Yes
HDMI	Yes
Display viewable area (HxV)	304.1 x 228.1 mm
Product colour	Black
Power supply type	AC
Weight (with stand)	4.5 kg
Touchscreen	Yes
Number of simultaneous touchpoints	10
Software
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Tilt angle range	-5 - 90°
Number of OSD languages	7
On Screen Display (OSD) languages	German, English, Spanish, French, Italian, Japanese
Plug and Play	Yes
Cable lock slot type	Kensington
Tilt adjustment	Yes
Power
Power supply type	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	2 W
Power consumption (typical)	16 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	10 kWh
Power management	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Packaging content
Quick start guide	Yes
Cables included	AC, Audio (3.5mm), DisplayPort, HDMI, USB
Weight & dimensions
Width (with stand)	351 mm
Depth (with stand)	202 mm
Height (with stand)	306.5 mm
Weight (with stand)	4.5 kg
Packaging data
Quick start guide	Yes
Cables included	AC, Audio (3.5mm), DisplayPort, HDMI, USB
Logistics data
Harmonized System (HS) code	85285210
Other features
Quick start guide	Yes
HDMI	Yes
Energy efficiency scale	A to G
Power supply type	AC
Display viewable area (HxV)	304.1 x 228.1 mm
Power management	Yes
Touchscreen	Yes
Number of simultaneous touchpoints	10
Certificates
Certification	CB, CE, TÜV, CU, cULus, VCCI
