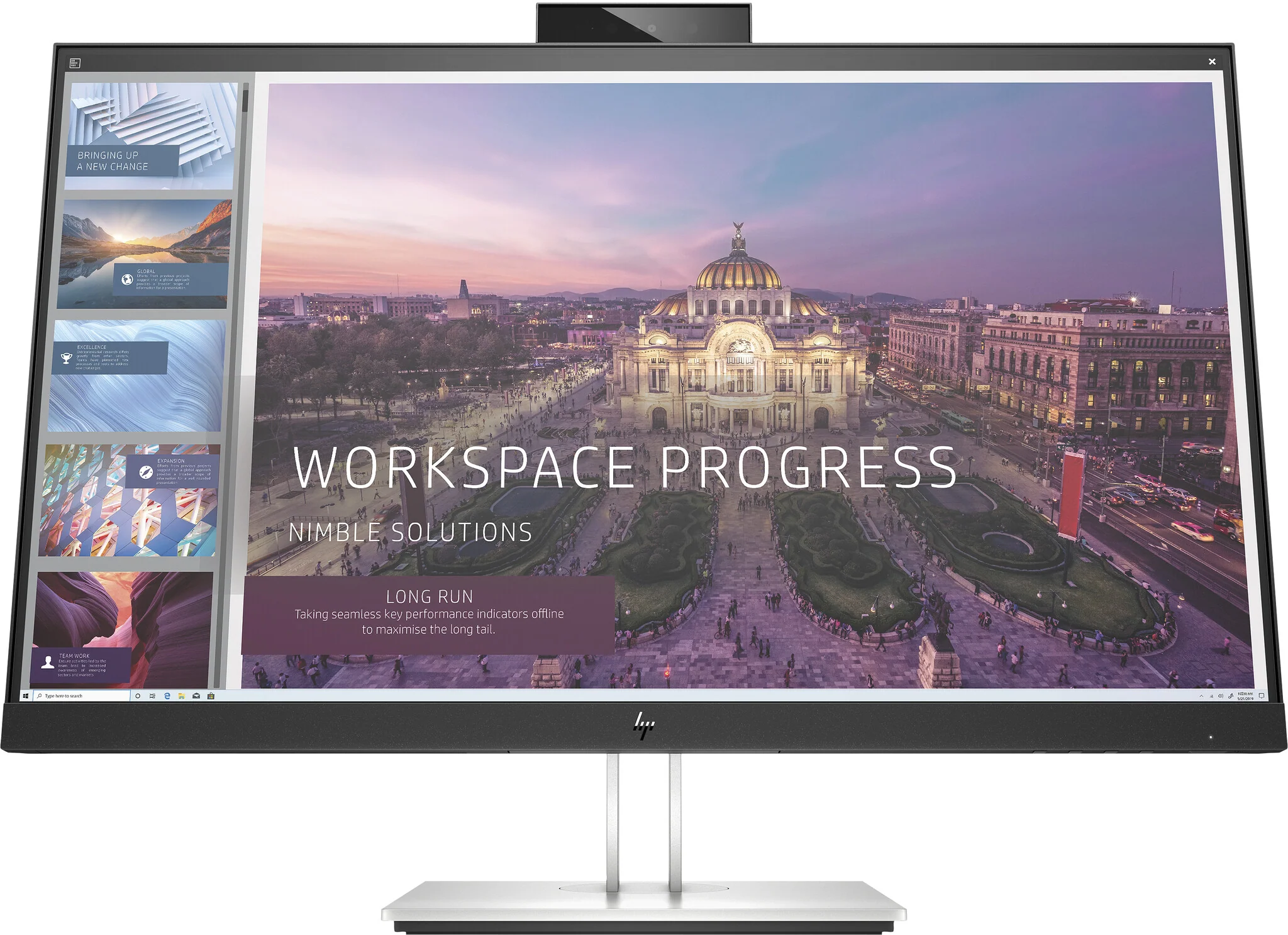

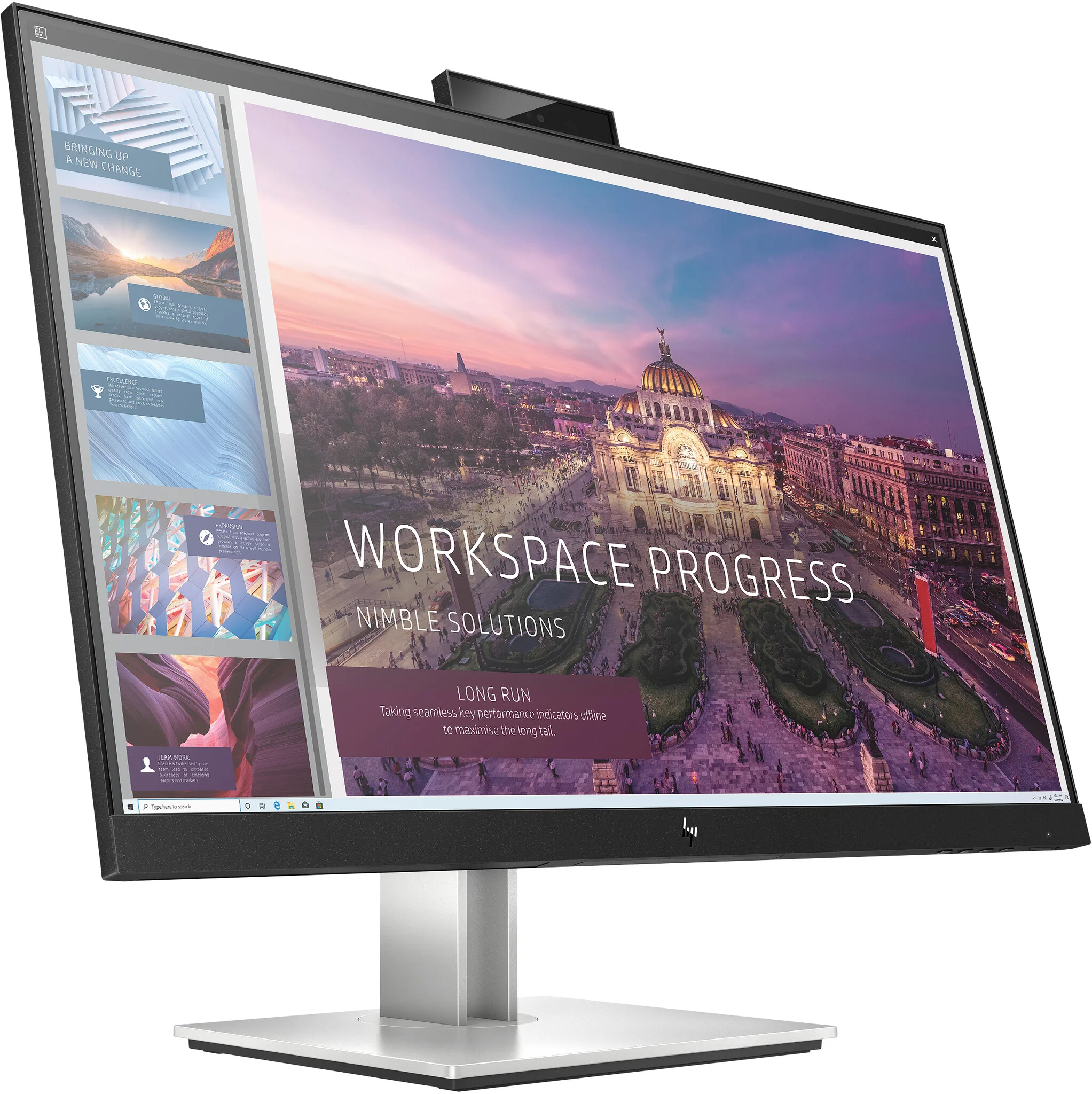

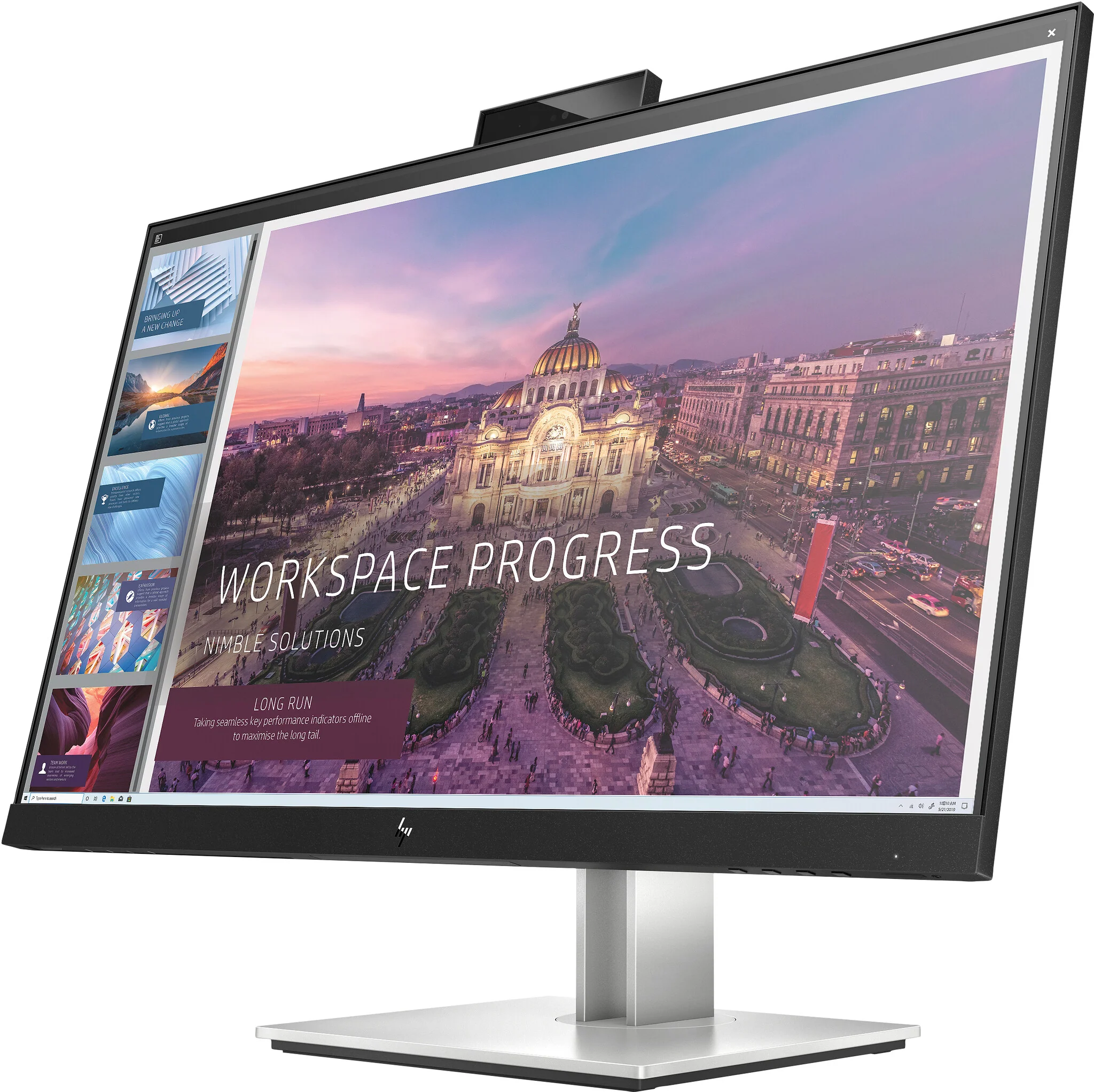

E24d G4 FHD USB-C Docking Monitor

Create the perfect productivity hub
Inspire joy on your desk with the clean connectivity of the HP E24d G4 FHD USB-C Docking Monitor. Add your everyday accessories at the display, then add your PC with just one USB-C® cable. Empower IT to remotely manage HP devices from anywhere on the network through RJ-45.

Drive your workspace from USB-C™
Connect, charge, and power your PC up to 100W through one USB-C™ cable, then embrace the easy connectivity of additional ports like USB and RJ-45. Expand to dual displays by daisy-chaining through DisplayPort™.

Manage deployments over a network
Help IT secure and remotely manage your deployed commercial HP PCs and the display with advanced network manageability features that include PXE Boot, LAN/WLAN switching, and WoL and MAC Address Pass-Through in all power states.

Simplify everyday tasks
Instantly turn on your display and laptop, even when the lid is closed, with a single button on the display. Login with your face and Windows Hello on the webcam with IR, or use it to videoconference.

Divide and conquer
Manage your display and make it work for you. HP Display Assistant allows you to quickly resize screen partitions so you can work in separate regions of the screen and helps deter theft by dimming a display that’s disconnected without approval.

Recyclable packaging
Support your recycling initiatives with 100% recyclable packaging that’s easily accepted by recycling facilities.

Ports for everything
Flexibly connect to your devices through DisplayPort™, HDMI, and 4 USB ports. Use upstream USB-C™ port for data, video, and up to 100W power delivery to your PC and downstream USB-C™ for data and power delivery up to 15W to your phone.

Take your PC off the desk

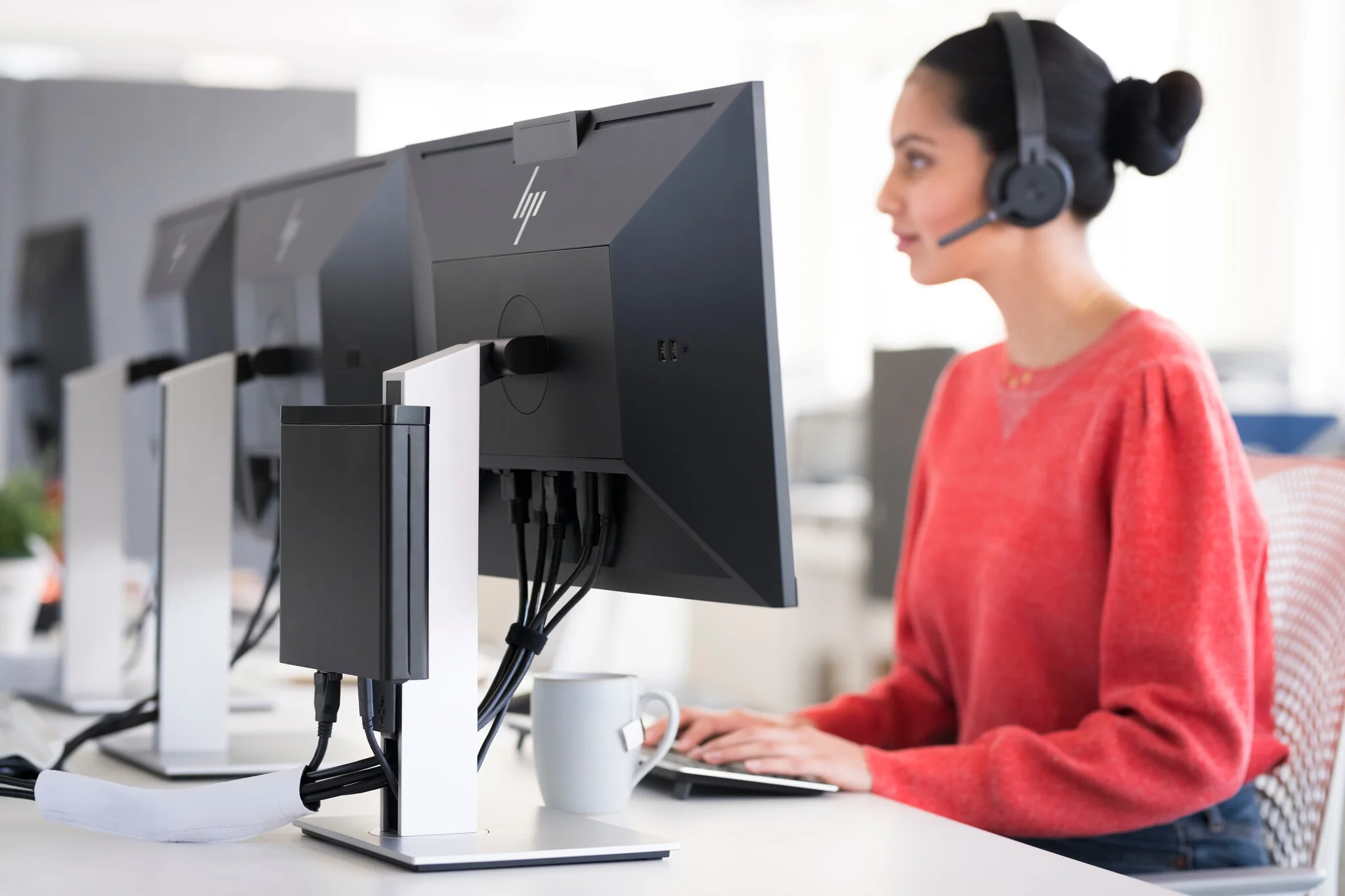

Clear your clutter by mounting your HP EliteDesk Mini Desktop PC directly behind the display and powering it through USB-C™. Or, lift the whole solution and mount it on a wall or arm.

Find your comfort zone
Work comfortably with adjustable tilt, height, and swivel settings. Use pivot rotation to conveniently customize portrait or landscape views on multiple displays.

Adjust your view
Keep your eyes comfortable through the workday with HP Eye Ease, our first built-in, always-on blue light filter that presents your vivid content with zero impact on your color accuracy, no OSD required.

Complete the picture
Customize a total solution with options like the HP S101 Speaker Bar8, which attaches easily to the lower bezel to add stereo audio at the display.

We have your back
Rest assured that this display has been vigorously tested for compatibility across HP PCs and workstations. It’s also supported by our three-year standard limited warranty. Extend your protection to cover accidents, next-business day needs, and more with optional HP Care Pack services.

Display
Colour gamut standard	NTSC
Colour gamut	72%
Digital vertical frequency	50 - 60 Hz
Digital horizontal frequency	30 - 80 kHz
Pixel pitch	0.274 x 0.274 mm
Viewing angle, vertical	178°
Viewing angle, horizontal	178°
Maximum refresh rate	60 Hz
Contrast ratio (dynamic)	5000000:1
Contrast ratio (typical)	1000:1
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Screen shape	Flat
Response time	5 ms
Display brightness (typical)	250 cd/m²
Panel type	IPS
HD type	Full HD
Touchscreen	No
Native aspect ratio	16:9
Display resolution	1920 x 1080 pixels
Display diagonal	60.5 cm (23.8")

Performance
HP segment	Business

Multimedia
Built-in microphone	Yes
Built-in camera	Yes

Design
Country of origin	China
Product colour	Black
Market positioning	Business

Ports & interfaces
Headphone out	Yes
DisplayPort version	1.2
DisplayPorts quantity	1
HDMI version	1.4
HDMI ports quantity	1
HDMI	Yes
USB Power Delivery up to	100 W
USB Power Delivery	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Type-C downstream ports quantity	1
USB Type-A downstream ports quantity	4
Number of USB Type-C upstream ports quantity	1
Number of upstream ports	1
USB upstream port type	USB Type-C
USB hub version	3.2 Gen 1 (3.1 Gen 1)
Built-in USB hub	Yes

Ergonomics
Plug and Play	Yes
On Screen Display (OSD)	Yes
Tilt angle range	-5 - 20°
Swivel angle range	0 - 30°
Swivelling	Yes
Pivot	Yes
Height adjustment	15 cm
Height adjustment	Yes
Cable lock slot	No
Panel mounting interface	100 x 100 mm
VESA mounting	Yes

Power
AC input voltage	100 - 240 V
Power consumption (max)	175 W
Power consumption (standby)	0.5 W
Power consumption (typical)	70 W
Energy consumption (SDR) per 1000 hours	18 kWh
Energy efficiency class (HDR)	Not available
Energy efficiency class (SDR)	E

Operational conditions
Operating relative humidity (H-H)	20 - 80%
Operating temperature (T-T)	5 - 35 °C

Packaging content
Cables included	DisplayPort, HDMI, USB Type-C

Weight & dimensions
Height (without stand)	323.3 mm
Depth (without stand)	48.5 mm
Width (without stand)	539.4 mm
Weight (with stand)	6.86 kg
Height (with stand)	486.4 mm
Depth (with stand)	206.8 mm
Width (with stand)	539.4 mm

Packaging data
Package weight	11 kg
Package height	438 mm
Package depth	269 mm
Package width	646 mm

Sustainability
European Product Registry for Energy Labelling (EPREL) code	298044
Sustainable technologies and materials	Arsenic-free display glass; Low halogen; Mercury-free display backlights

Logistics data
Harmonized System (HS) code	85285210

Brand-specific features
HP GTIN (EAN/UPC)	195697978920

Other features
Weight	6.86 kg
Height	323.3 mm
Width	539.4 mm
Depth	48.5 mm
