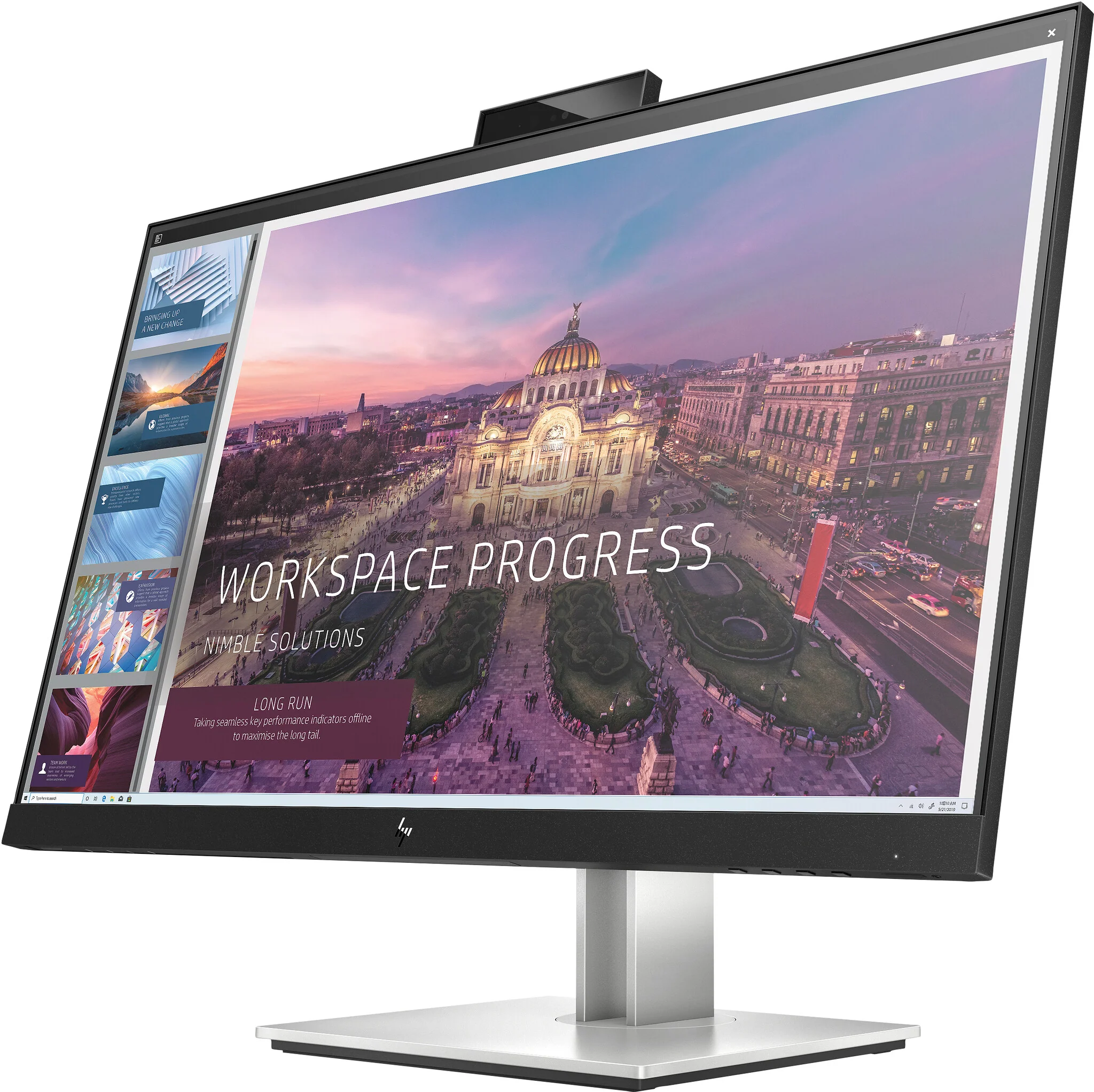

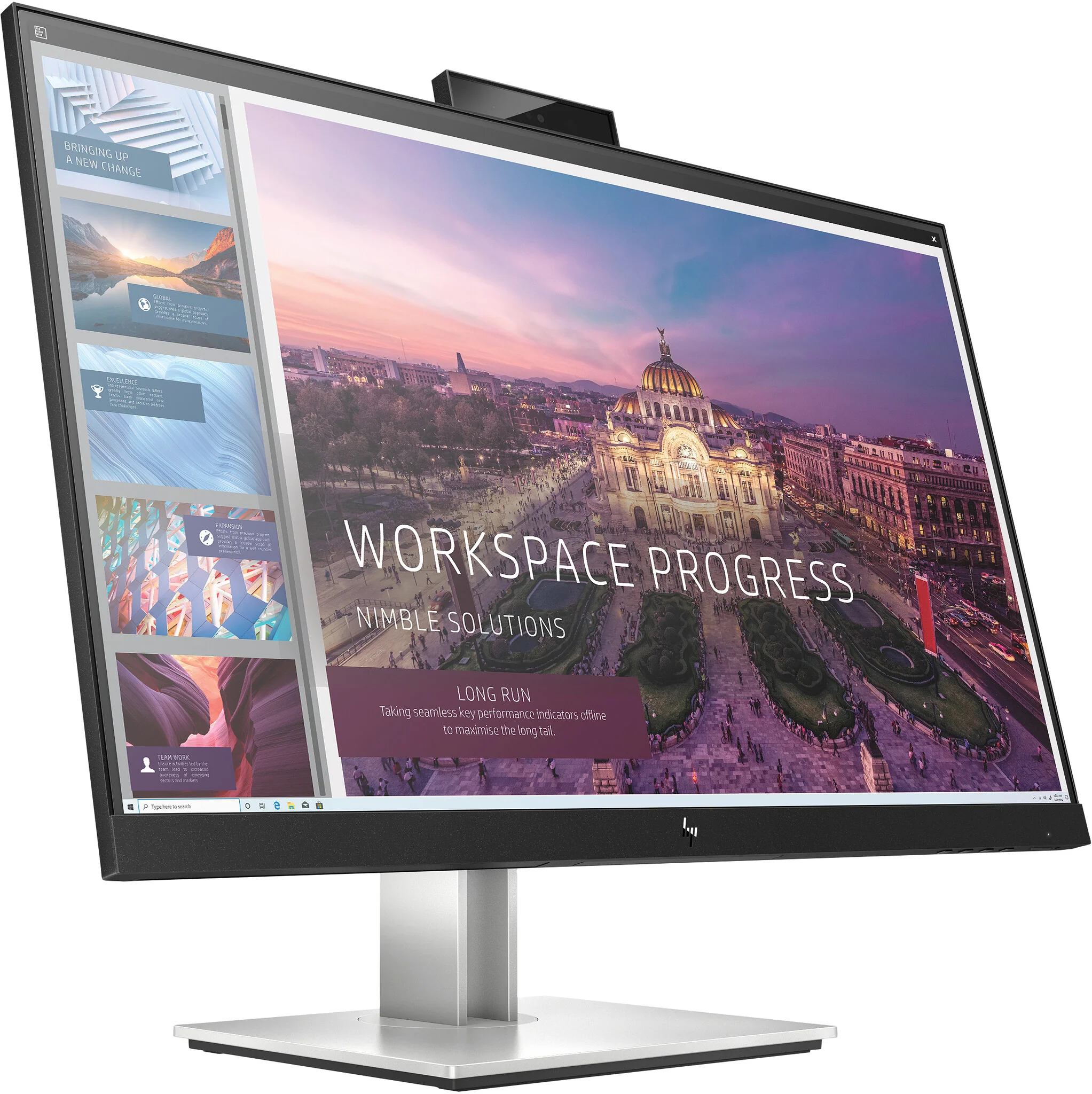

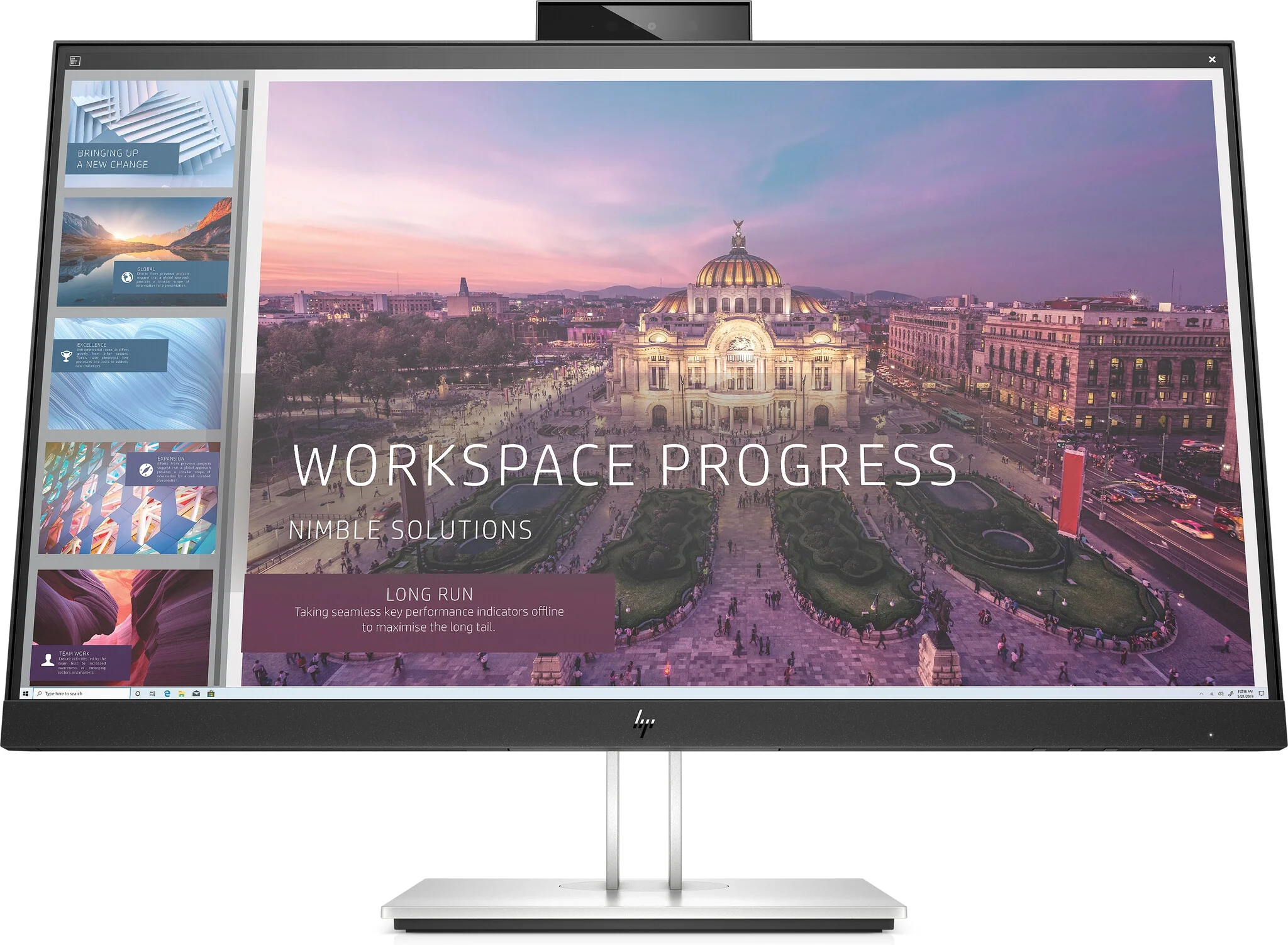

E24d G4 FHD USB-C Docking Monitor

Create the perfect productivity hub
Inspire joy on your desk with the clean connectivity of the HP E24d G4 FHD USB-C Docking Monitor. Add your everyday accessories at the display, then add your PC with just one USB-C® cable. Empower IT to remotely manage HP devices from anywhere on the network through RJ-45.

Drive your workspace from USB-C™
Connect, charge, and power your PC up to 100W through one USB-C™ cable, then embrace the easy connectivity of additional ports like USB and RJ-45. Expand to dual displays by daisy-chaining through DisplayPort™.

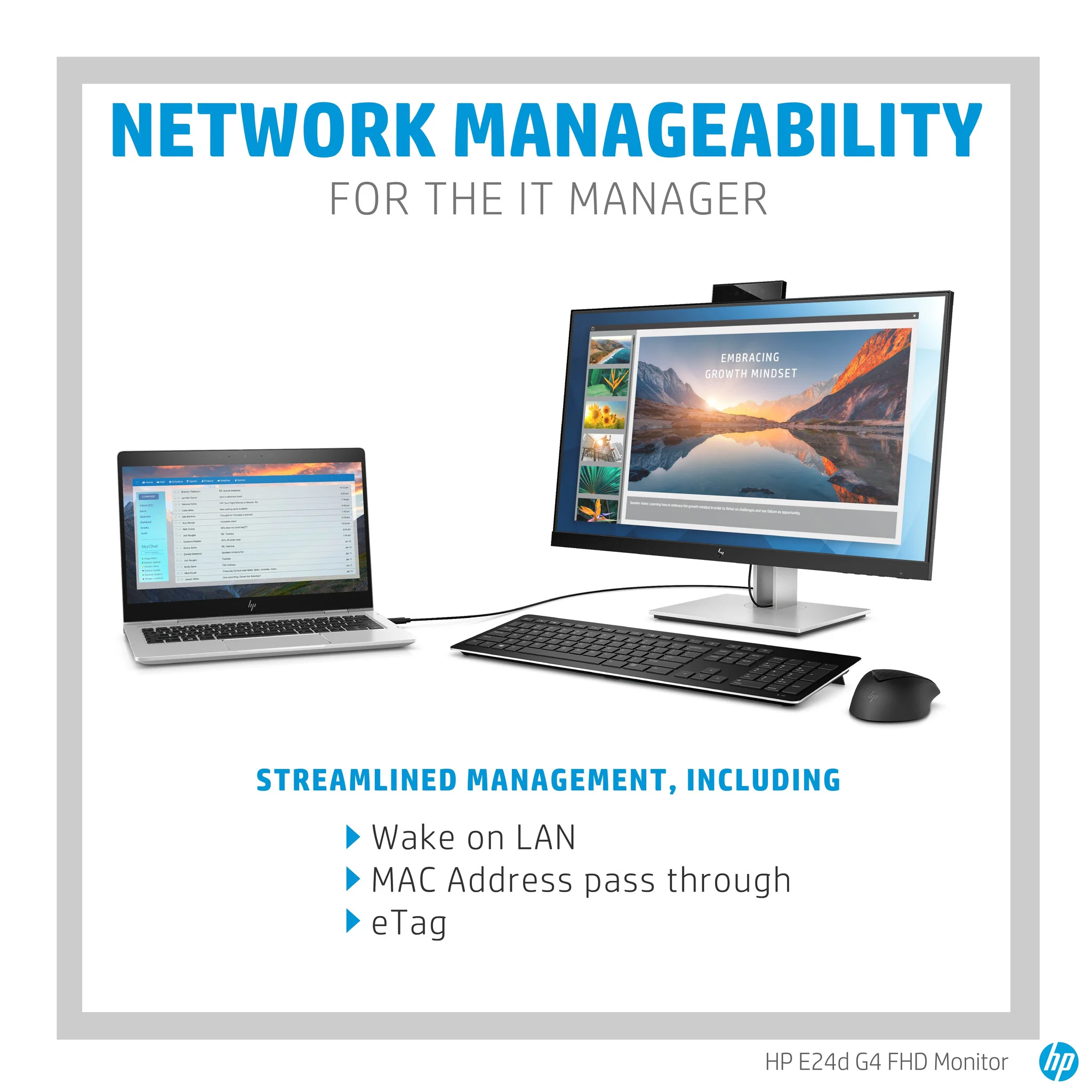

Manage deployments over a network
Help IT secure and remotely manage your deployed commercial HP PCs and the display with advanced network manageability features that include PXE Boot, LAN/WLAN switching, and WoL and MAC Address Pass-Through in all power states.

Simplify everyday tasks
Instantly turn on your display and laptop, even when the lid is closed, with a single button on the display. Login with your face and Windows Hello on the webcam with IR, or use it to video conference.

Divide and conquer
Manage your display and make it work for you. HP Display Assistant allows you to quickly resize screen partitions so you can work in separate regions of the screen and helps deter theft by dimming a display that’s disconnected without approval.

Recyclable packaging
Support your recycling initiatives with 100% recyclable packaging that’s easily accepted by recycling facilities.

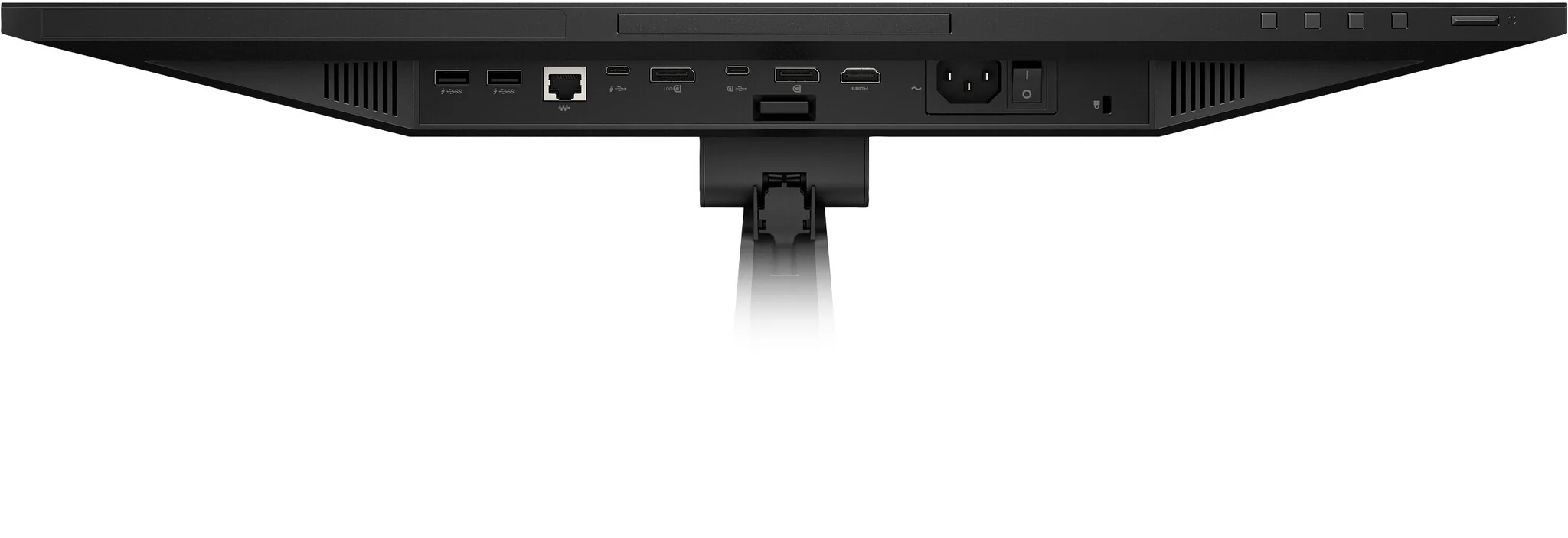

Ports for everything
Flexibly connect to your devices through DisplayPort™, HDMI, and 4 USB ports. Use upstream USB-C™ port for data, video, and up to 100W power delivery to your PC and downstream USB-C™ for data and power delivery up to 15W to your phone.

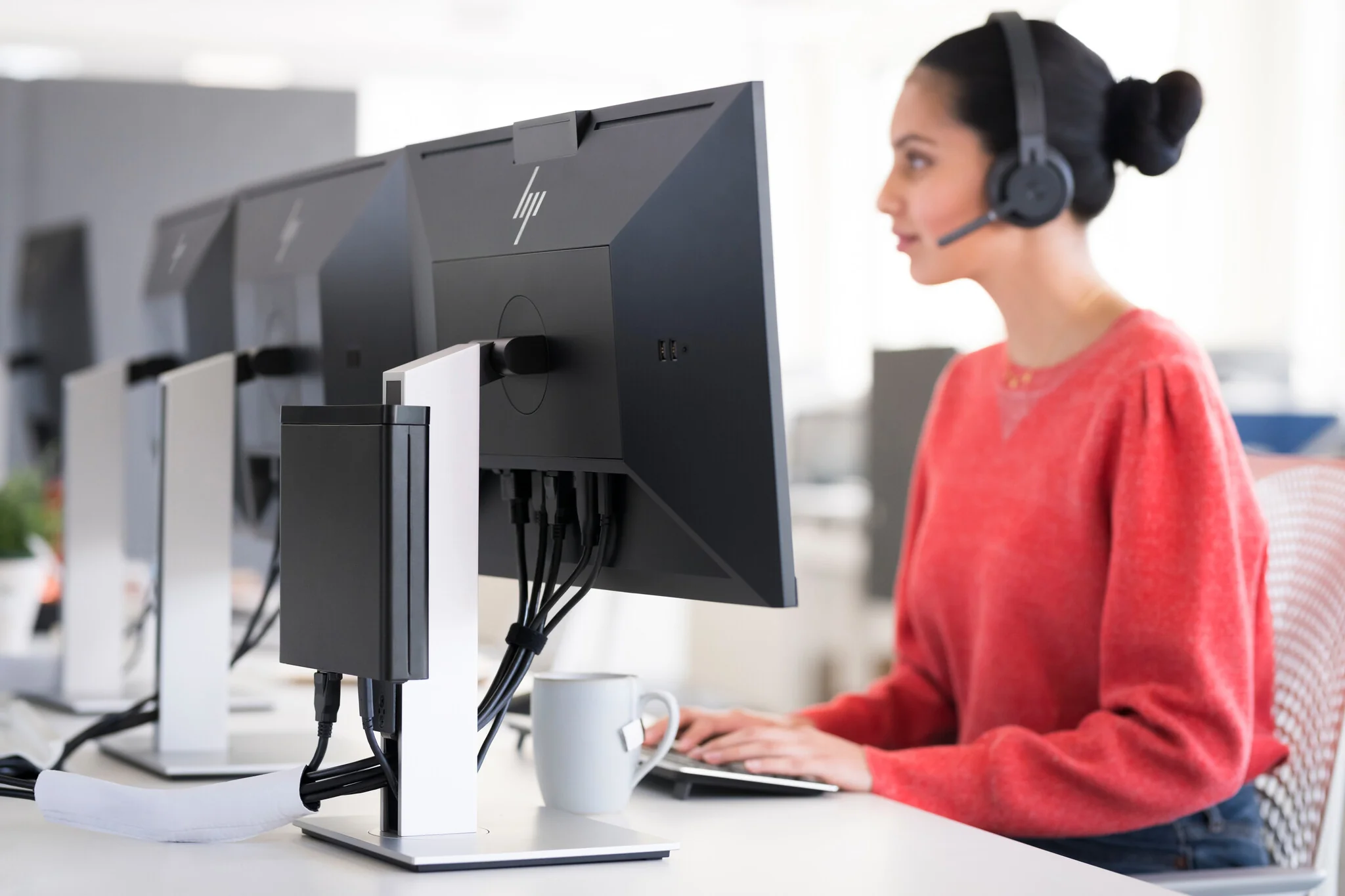

Take your PC off the desk
Clear your clutter by mounting your HP EliteDesk Mini Desktop PC directly behind the display and powering it through USB-C™. Or, lift the whole solution and mount it on a wall or arm.

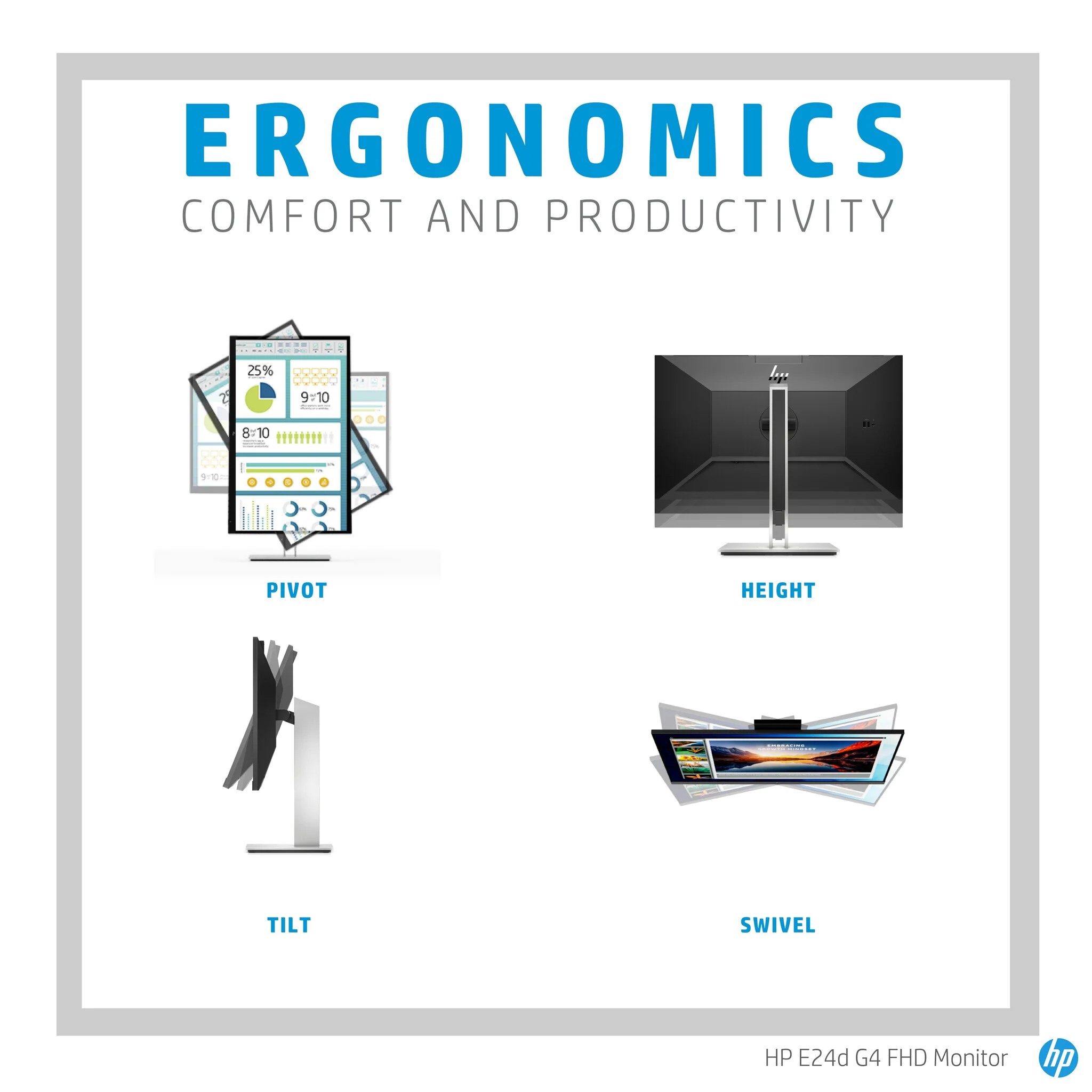

Find your comfort zone

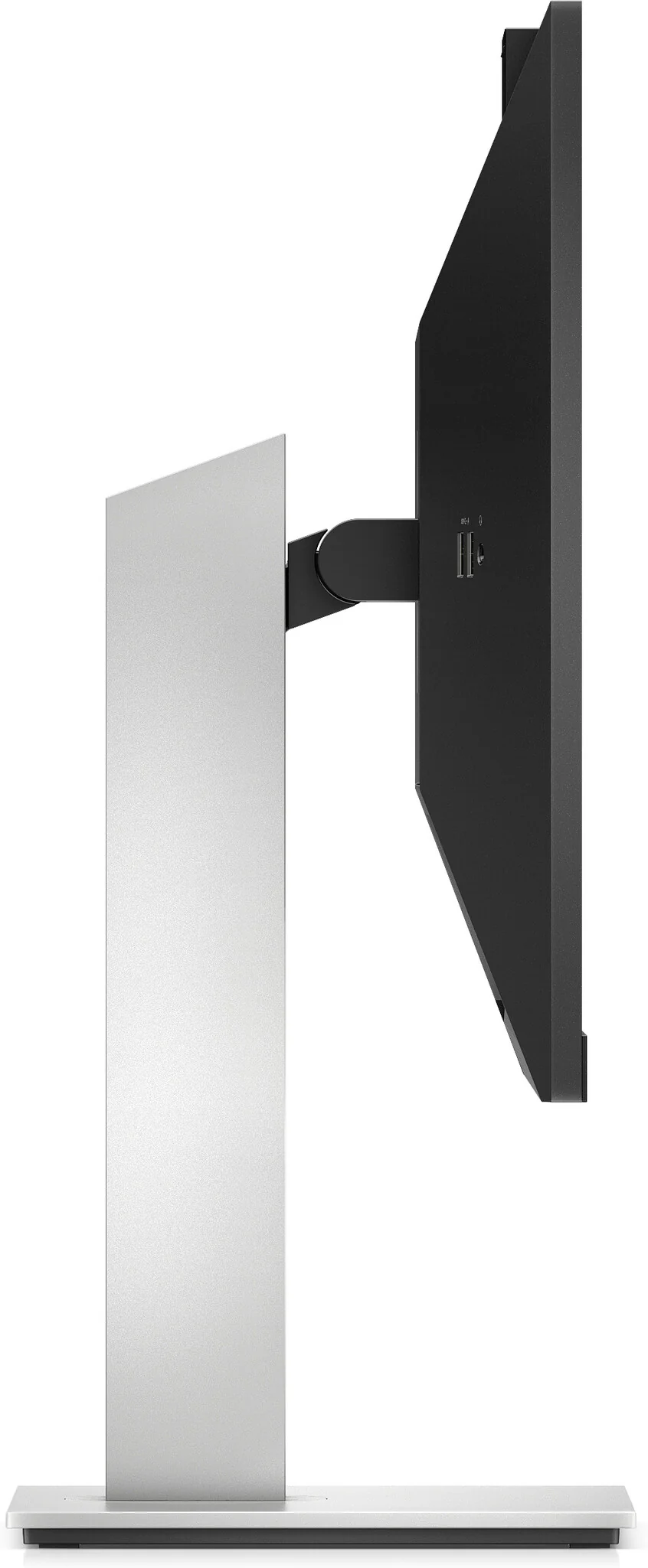

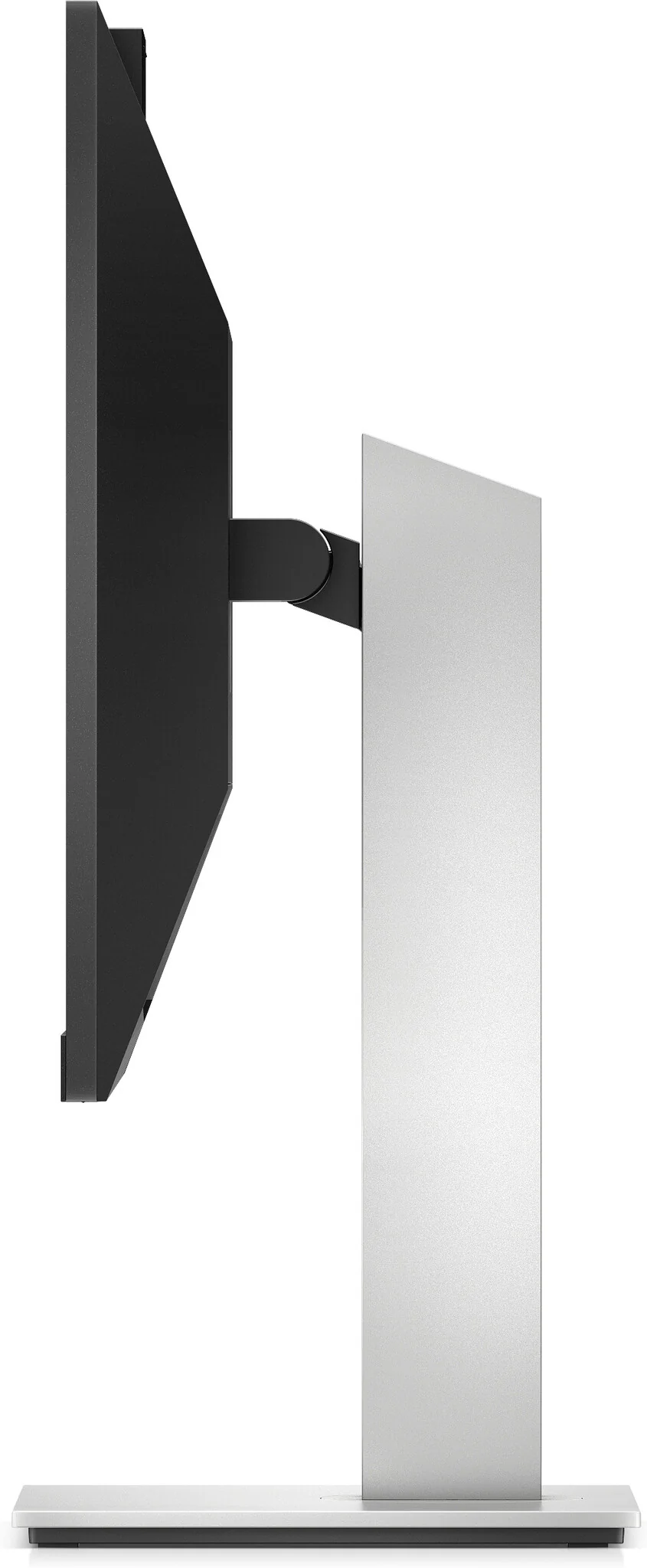

Work comfortably with adjustable tilt, height, and swivel settings. Use pivot rotation to conveniently customize portrait or landscape views on multiple displays.

Adjust your view
Keep your eyes comfortable through the workday with HP Eye Ease, our first built-in, always-on blue light filter that presents your vivid content with zero impact on your color accuracy, no OSD required.

Complete the picture
Customize a total solution with options like the HP S101 Speaker Bar8, which attaches easily to the lower bezel to add stereo audio at the display.

We have your back
Rest assured that this display has been vigorously tested for compatibility across HP PCs and workstations. It’s also supported by our three-year standard limited warranty. Extend your protection to cover accidents, next-business day needs, and more with optional HP Care Pack services.

Display
Colour gamut standard	NTSC
Colour gamut	72%
Pixel density	92 ppi
Pixel pitch	0.274 x 0.274 mm
Viewing angle, vertical	178°
Viewing angle, horizontal	178°
Maximum refresh rate	60 Hz
Contrast ratio (dynamic)	5000000:1
Contrast ratio (typical)	1000:1
Aspect ratio	16:9
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Screen shape	Flat
Response time	5 ms
Display brightness (typical)	250 cd/m²
Panel type	IPS
HD type	Full HD
Touchscreen	No
Display technology	LED
Native aspect ratio	16:9
Display resolution	1920 x 1080 pixels
Display diagonal	60.5 cm (23.8")

Performance
HP segment	Business

Design
Certification	Australië-Nieuw-Zeeland MEPS; BIS; BSMI; CB; CCC; CE CECP; CEL; cTUVus; EAC; E-standby; FCC; ISO 9241-307; KC; KCC; NOM; PSB; TÜV/GS; TÜV-S; VCCI; Vietnam MEPS; WEEE; ISC; Low Blue Light; California Energy Commission (CEC)
Product colour	Black, Silver
Market positioning	Business

Ports & interfaces
HDCP	Yes
DisplayPort version	1.2
DisplayPorts quantity	1
HDMI version	1.4
HDMI ports quantity	1
HDMI	Yes
DVI port	No
USB Type-C downstream ports quantity	1
USB Type-A downstream ports quantity	4
USB hub version	3.2 Gen 2 (3.1 Gen 2)
Built-in USB hub	Yes

Ergonomics
Swivel angle range	-30 - 30°
Swivelling	Yes
Pivot angle	-90 - 90°
Pivot	Yes
Height adjustment	15 cm
Height adjustment	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
VESA mounting	Yes

Power
Energy efficiency scale	A+++ to D
AC input voltage	100 - 240 V
Power consumption (standby)	0.5 W
Power consumption (typical)	70 W

Operational conditions
Operating relative humidity (H-H)	20 - 80%
Operating temperature (T-T)	5 - 35 °C

Packaging content
Cables included	AC, DisplayPort, HDMI, USB Type-C
Stand included	Yes

Weight & dimensions
Height (without stand)	32.3 mm
Depth (without stand)	4.85 mm
Width (without stand)	539.4 mm
Weight (with stand)	6.86 kg
Height (with stand)	20.7 mm
Depth (with stand)	48.6 mm
Width (with stand)	53.9 mm

Packaging data
Package type	Box
Package weight	11 kg
Package height	486.4 mm
Package depth	206.8 mm
Package width	539.4 mm

Sustainability
European Product Registry for Energy Labelling (EPREL) code	298044
Sustainable technologies and materials	Arsenic-free display glass; Low halogen; Mercury-free display backlights

Logistics data
Harmonized System (HS) code	85285210

Other features
Energy efficiency class (old)	A+
Height	323.3 mm
Width	539.4 mm
Depth	48.5 mm
