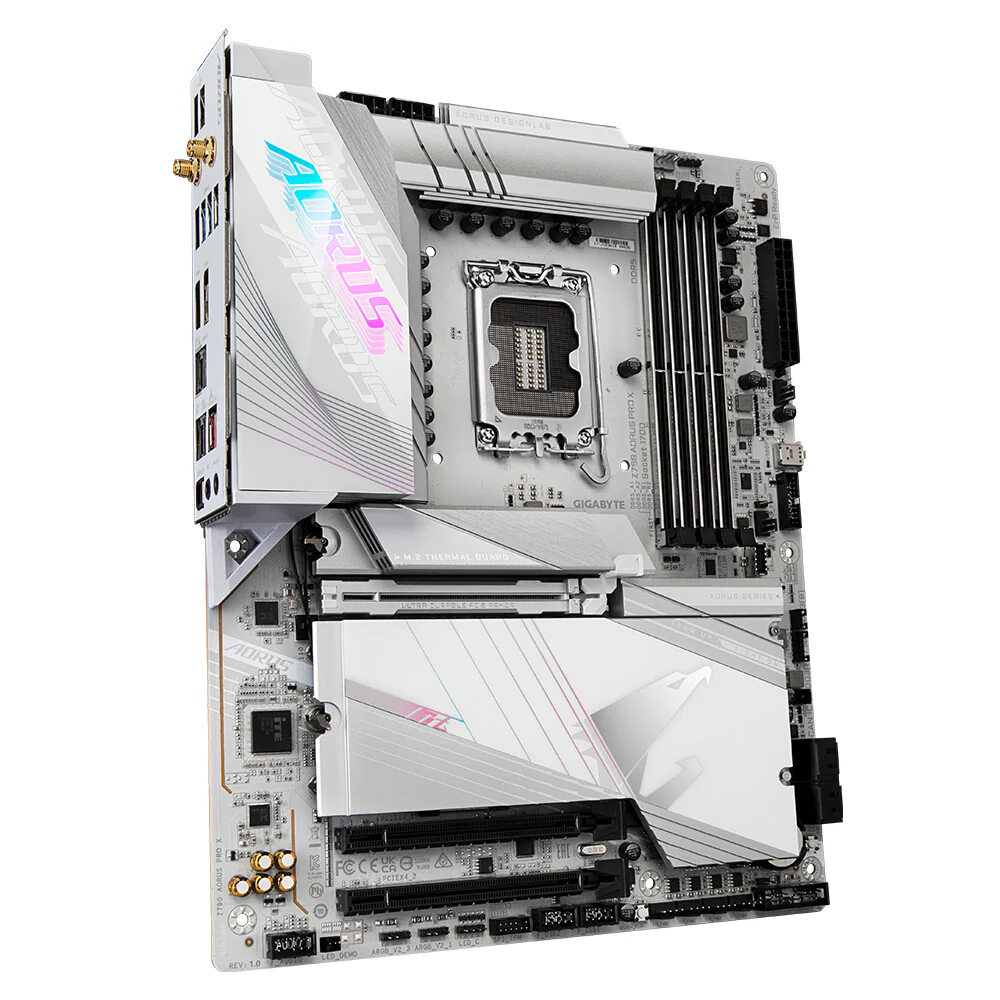

Gigabyte Z790 AORUS PRO X ATX motherboard - Intel Z790 LGA 1700
Intel Z790, 4 x DDR5, 8266 MHz, Wi-Fi 7, 1 x RJ-45, 1 x HDMI, ATX, Bluetooth 5.3
Introducing the GIGABYTE Z790 AORUS PRO X Motherboard offers an aesthetically all-white pleasing design. The stylish white motherboard supports the 13th Gen and the next-gen Intel Core processors, featuring an LGA 1700 socket. It delivers an advanced VRM design, efficient thermal management, PCIe 5.0 support, seamless DDR5 compatibility, and EZ-latch features for screwless installments. With its cutting-edge technology and user-friendly design, the AORUS PRO X Motherboard sets new standards for high-performance computing, ensuring optimal performance and easy maintenance for PC enthusiasts.
| Processor | |
|---|---|
| Maximum internal memory supported by processor | 192 GB |
| Supported processor sockets | LGA 1700 |
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 192 GB |
| Supported memory clock speed (max) | 8266 MHz |
| Supported memory clock speeds | 4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266 MHz |
| Non-ECC | Yes |
| ECC | Yes |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 9 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Discrete graphics support | Yes |
| DirectX version | 12.0 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| Thunderbolt headers | 2 |
| TPM connector | Yes |
| 12V power connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of chassis fan connectors | 6 |
| CPU fan connector | Yes |
| Number of EATX power connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2x2 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |

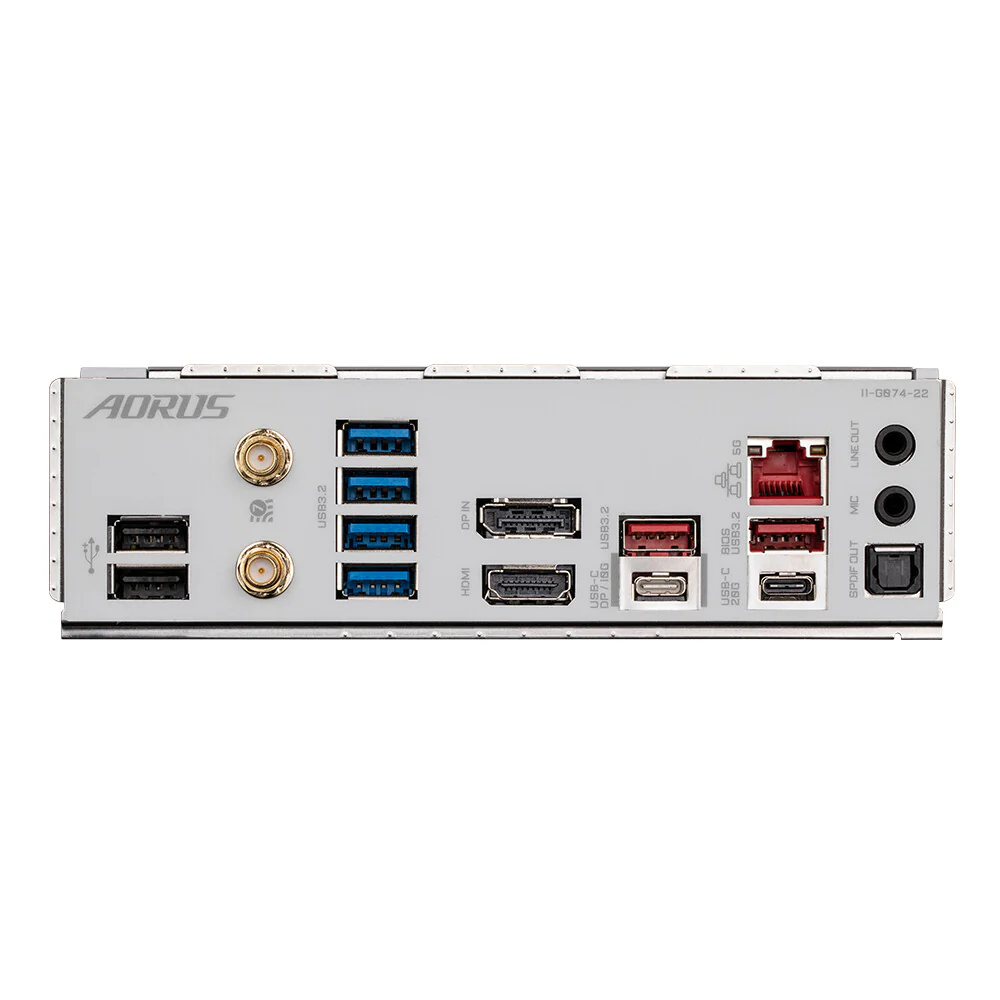

| Rear panel I/O ports | |
|---|---|
| WiFi-AP antenna jack | 2 |
| Thunderbolt ports quantity | 2 |
| Digital audio optical out | 1 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| LAN controller | Realtek RTL8126 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 11 x64 |
| PC health monitoring | Fan, Noise, Temperature, Voltage, Water cooling |
| Product colour | White |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC1220-VB |
| Motherboard chipset | Intel Z790 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 5 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| BIOS | |
|---|---|
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| ACPI version | 5.0 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Logistics data | |
|---|---|
| Country of origin | Taiwan |
| Products per shipping (inner) case | 1 pc(s) |
| Packaging data | |
|---|---|
| Package weight | 2.59 kg |
| Package height | 80 mm |
| Package depth | 270 mm |
| Package width | 335 mm |
| Battery | |
|---|---|
| Battery type | CR2032 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Weight & dimensions | |
|---|---|
| Height | 35 mm |
| Depth | 244 mm |
| Width | 305 mm |
| Packaging content | |
|---|---|
| Bundled software | Norton Internet SecurityLAN bandwidth management software |
| Cables included | SATA |
| Batteries included | Yes |
| Antenna included | Yes |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
