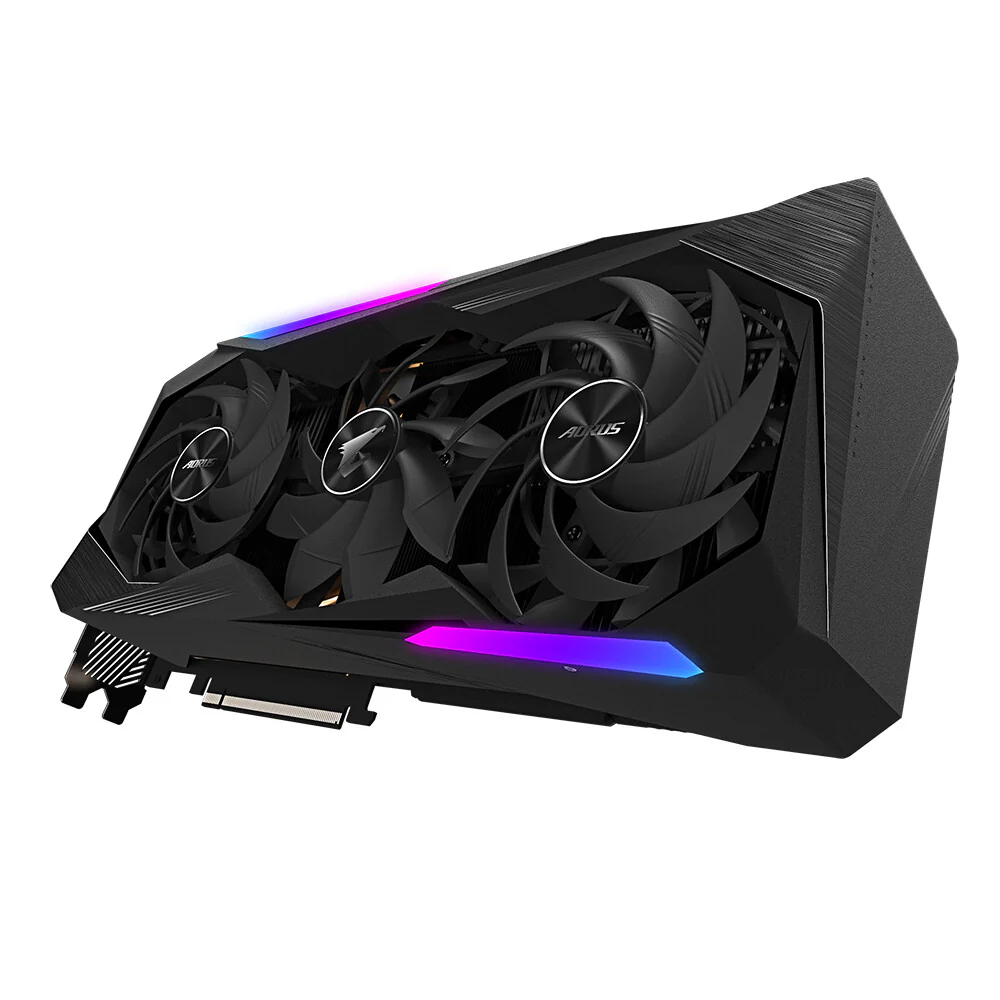

GeForce RTX 3070 Ti MASTER 8G, 8GB, GDDR6X, 256-bit, PCI Express 4.0 x16, 3x HDMI, 3x DP, 1x6-pin+2x 8-pin, 324x142x70 mm
DESIGN CONCEPT
In the AORUS dimension, everything is constructed digitally. The lighting and patterns are mapped onto the products with an efficient, free flowing style.
Welcome to the Digital Code Era.
MAX-COVERED COOLING
The MAX-Covered cooling features two 115mm and one 100mm unique blade stack fans with wind claw design and alternate spinning, so the air pressure can completely cover the heatsink.
LCD EDGE VIEW
The LCD monitor not only display graphics card information, but also various favorite texts, pictures and GIFs. You can also adjust lighting effects via RGB FUSION 2.0 software.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PERFORMANCE
GeForce RTX 3070 Ti with 8 GB memory and 608 GB/s memory bandwidth has 6144 CUDA Cores, 2nd gen ray tracing cores and 3rd gen tensor cores operating in parallel. It is the most suitable solution for those who are gaming, rendering, and developing A.I. technology.
EXCELLENCE
Excellent circuit design with the top-grade materials, not only maximizes the excellence of the GPU, but also maintains stable and long-life operation.
| Processor |
|---|
| FireStream |
No |
| Maximum displays per videocard |
4 |
| Processor frequency |
1875 MHz |
| CUDA cores |
6144 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 3070 Ti |
| Graphics processor family |
NVIDIA |
| Memory |
|---|
| Memory bandwidth (max) |
608 GB/s |
| Memory clock speed |
19000 MHz |
| Memory bus |
256 bit |
| Graphics card memory type |
GDDR6X |
| Discrete graphics card memory |
8 GB |
| Ports & interfaces |
|---|
| DisplayPort version |
1.4a |
| HDMI version |
2.1 |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
3 |
| Interface type |
PCI Express x16 4.0 |
| Performance |
|---|
| Dual Link DVI |
No |
| HDCP |
Yes |
| OpenGL version |
4.6 |
| DirectX version |
12 Ultimate |
| TV tuner integrated |
No |
| Design |
|---|
| Product colour |
Black |
| Illumination |
Yes |
| Illumination colour |
Multi |
| Number of fans |
3 fan(s) |
| Cooling type |
Active |
| Power |
|---|
| Supplementary power connectors |
1x 6-pin, 2x 8-pin |
| Minimum system power supply |
850 W |
| General |
|---|
| Product Family |
AORUS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Weight & dimensions |
|---|
| Height |
142 mm |
| Length |
324 mm |
| Packaging data |
|---|
| Package type |
Box |
| User guide |
Yes |
