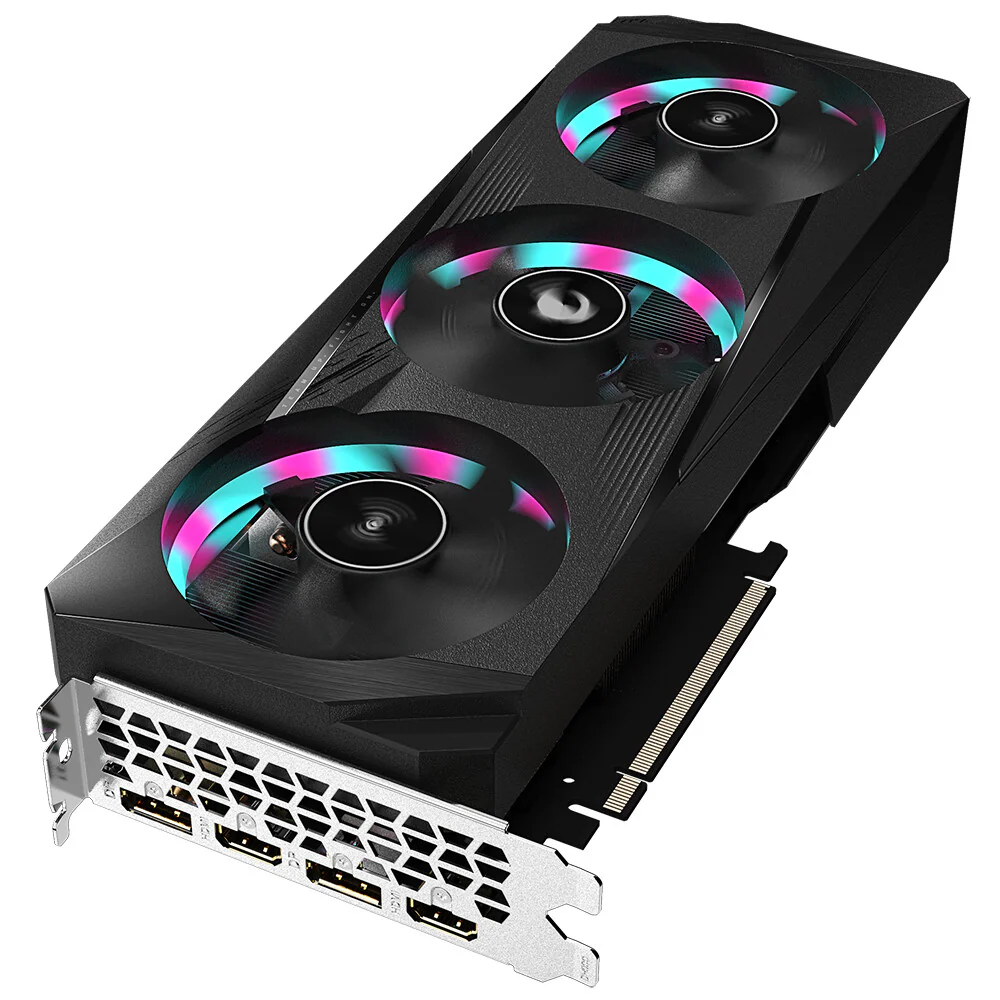

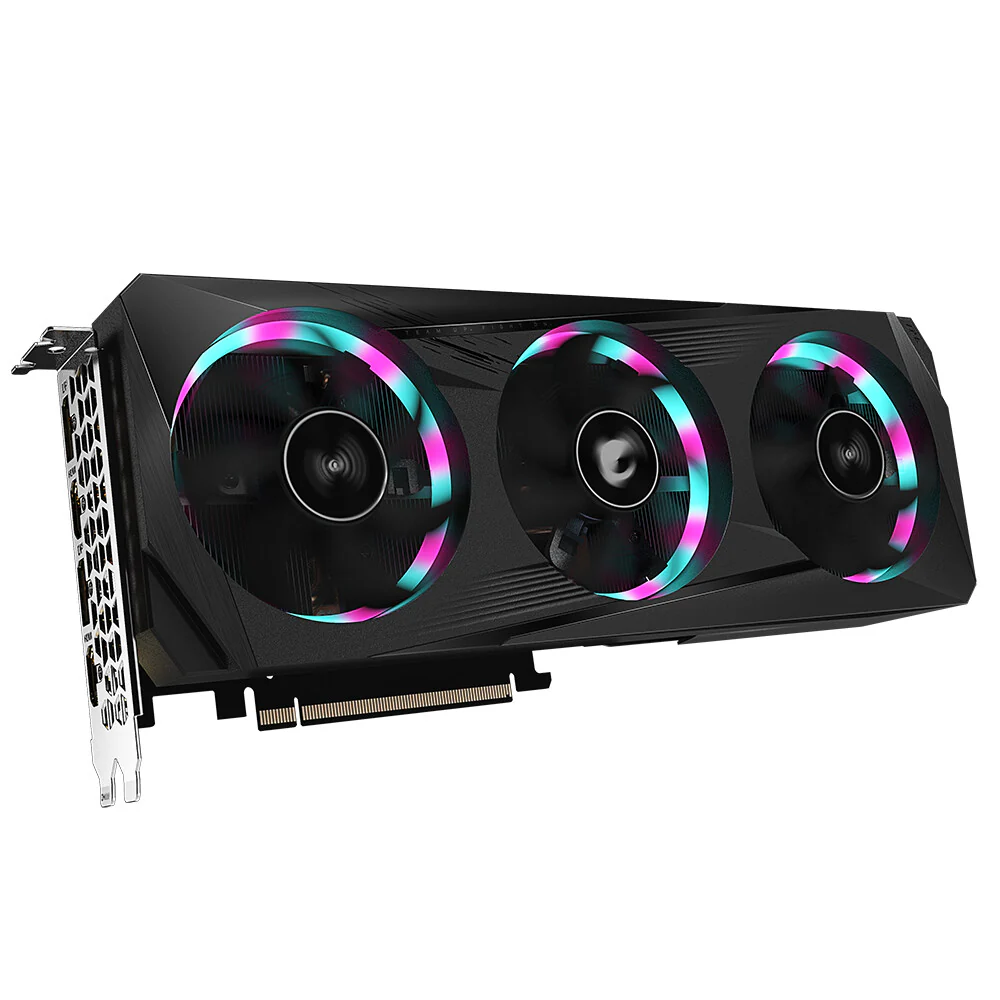

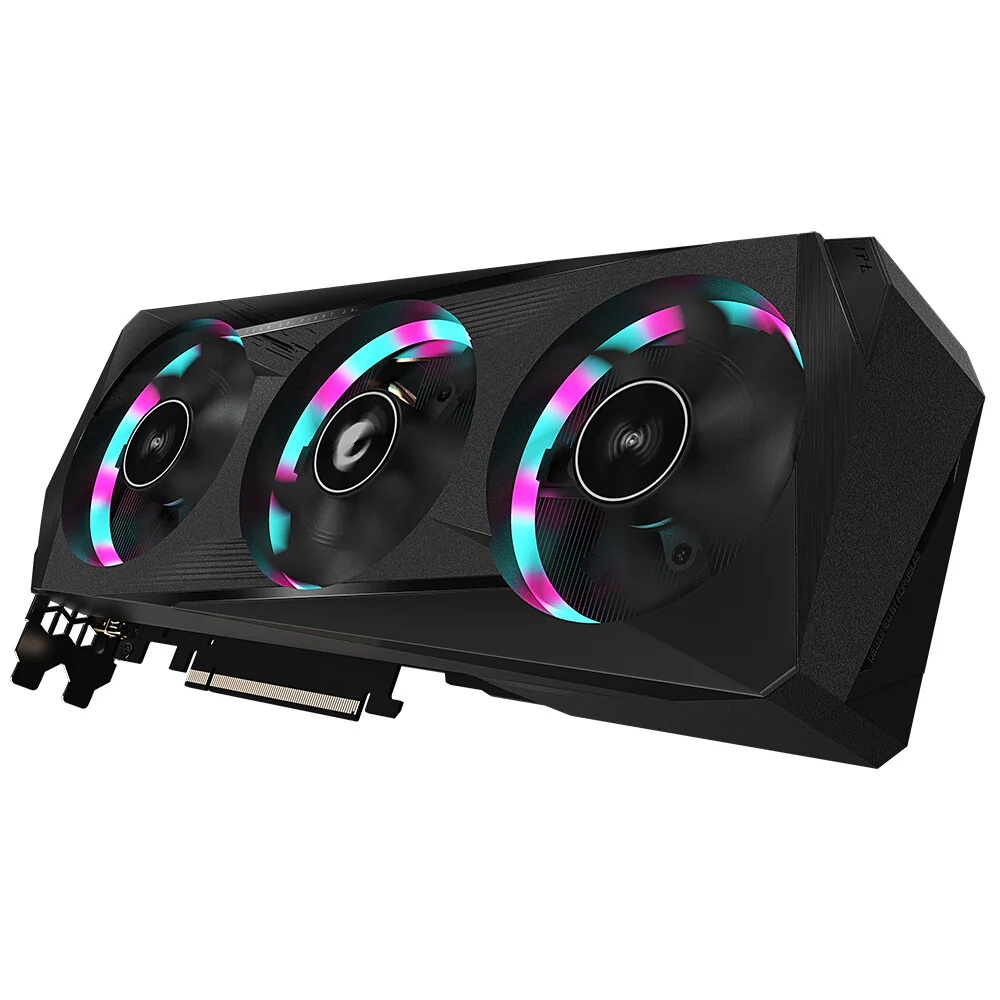

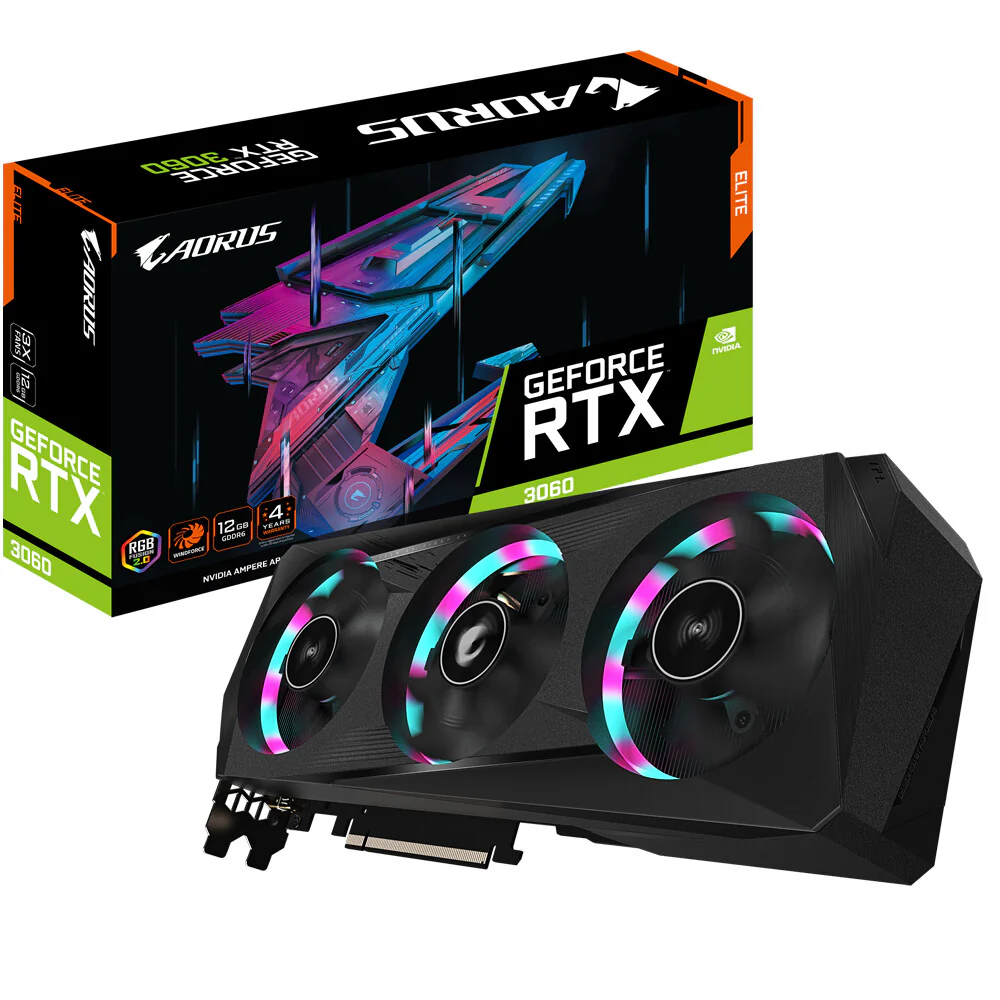

GIGABYTE AORUS ELITE (rev. 1.0) - NVIDIA 12 GB GDDR6 GeForce RTX 3060 graphics card
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PERFORMANCE
GeForce RTX 3060 with 12G memory and 360 GB/s memory bandwidth has 3584 CUDA Cores, 2nd gen ray tracing cores and 3rd gen tensor cores operating in parallel. It is the most suitable solution for those who are gaming, rendering, and developing A.I. technology.
EXCELLENCE
Excellent circuit design with the top-grade materials, not only maximizes the excellence of the GPU, but also maintains stable and long-life operation.
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor frequency | 1867 MHz |
| CUDA cores | 3584 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 3060 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 360 GB/s |
| Memory clock speed | 15000 MHz |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 12 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 2 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| NVIDIA 3D Vision | Yes |
| Dual Link DVI | No |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12.0 |
| PhysX | Yes |
| Design | |
|---|---|
| Product colour | Grey |
| Illumination | Yes |
| Illumination colour | Multi |
| Number of slots | 3 |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Fan diameter | 8 cm |
| Number of fans | 3 fan(s) |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 6-pin, 1x 8-pin |
| Minimum system power supply | 650 W |
| General | |
|---|---|
| Product Family | AORUS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Weight & dimensions | |
|---|---|
| Height | 117 mm |
| Length | 296 mm |
