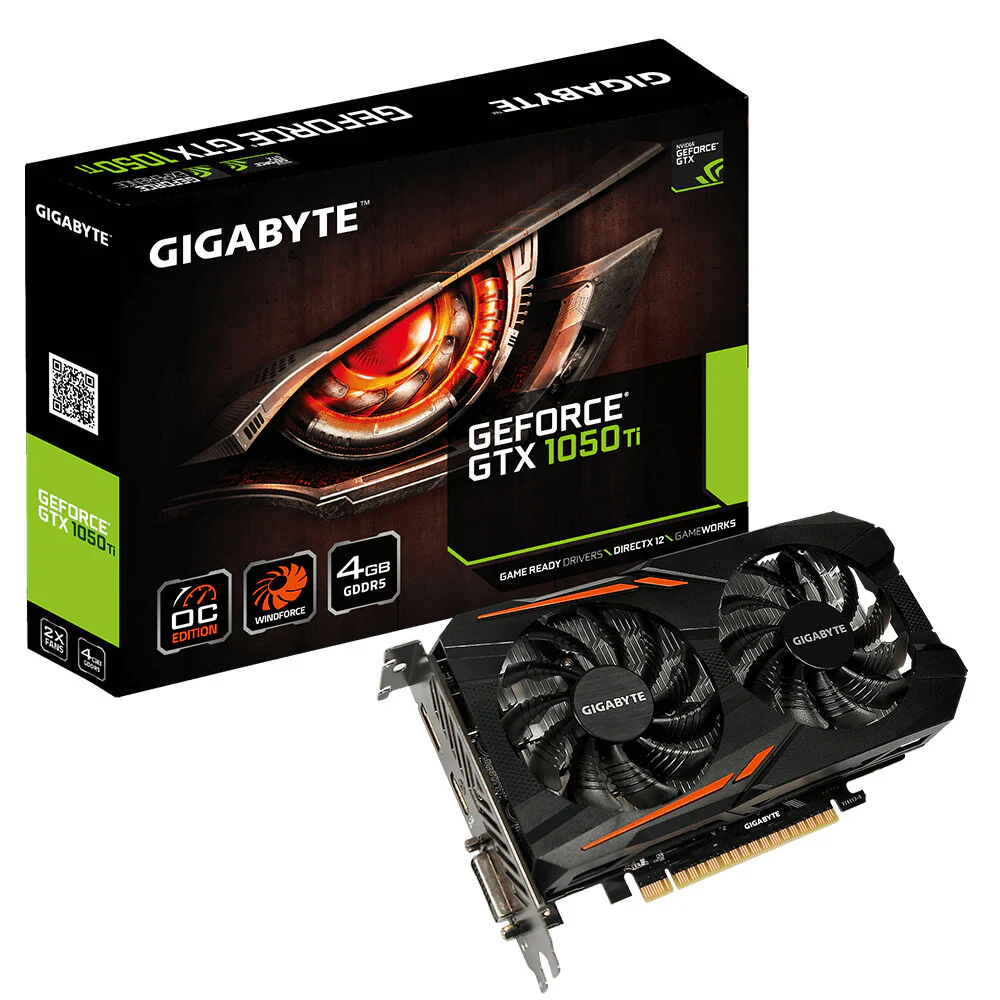

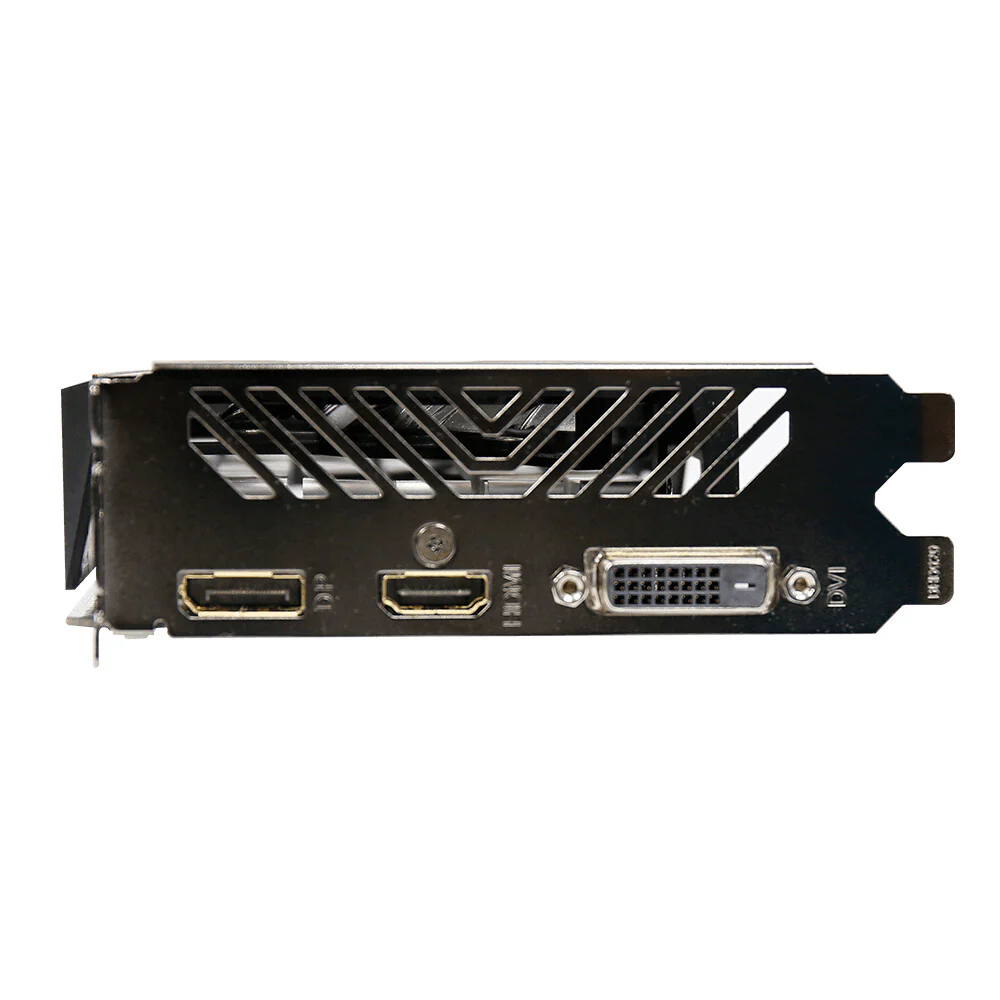

GeForce GTX 1050 Ti OC, 4GB GDDR5 128bit, 1341/1455 MHz, 16 nm, 7008 MHz, PCI-E 3.0 x 16, DVI-D, HDMI 2.0b, DisplayPort 1.4, 111 x 191 x 36 mm

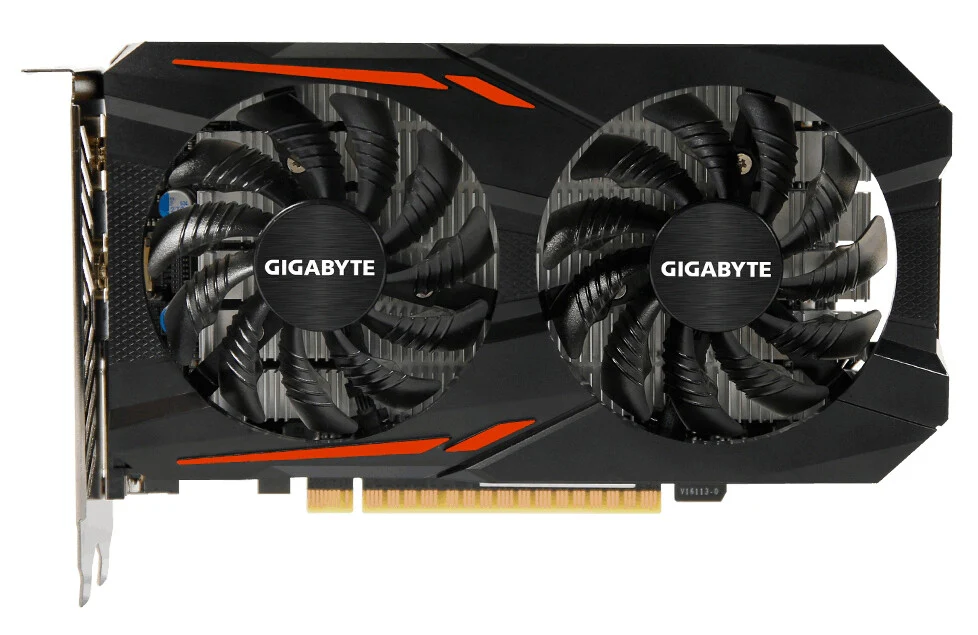

The WINDFORCE 2X cooling system features two 80mm unique blade fans and semi-passive 3D active fan together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
80mm Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.
3D Active Fan
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
One-click Super overclocking
With a simple click on XTREME engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.
Ultra Cooling
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
Low Power Loss
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
Longer Life
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
Intuitive XTREME Engine Utility
Clock speeds, voltage, fan performance, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.
| Processor |
|---|
| FireStream |
No |
| Maximum displays per videocard |
3 |
| Processor boost clock speed |
1455 MHz |
| Processor frequency |
1341 MHz |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce GTX 1050 Ti |
| Graphics processor family |
NVIDIA |
| Memory |
|---|
| Memory clock speed |
7008 MHz |
| Memory bus |
128 bit |
| Graphics card memory type |
GDDR5 |
| Discrete graphics card memory |
4 GB |
| Ports & interfaces |
|---|
| DisplayPort version |
1.4 |
| HDMI version |
2.0b |
| DVI-D ports quantity |
1 |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| Interface type |
PCI Express x16 3.0 |
| Performance |
|---|
| Full HD |
Yes |
| NVIDIA G-SYNC |
Yes |
| NVIDIA GameWorks VR |
Yes |
| Dual Link DVI |
Yes |
| OpenGL version |
4.5 |
| DirectX version |
12.0 |
| TV tuner integrated |
No |
| PhysX |
Yes |
| Design |
|---|
| Product colour |
Black |
| Number of slots |
2 |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Bracket height |
Full-Height (FH) |
| Number of fans |
2 fan(s) |
| Cooling technology |
GIGABYTE WINDFORCE 2X |
| Cooling type |
Active |
| Power |
|---|
| Minimum system power supply |
300 W |
| Weight & dimensions |
|---|
| Depth |
36 mm |
| Height |
111 mm |
| Length |
191 mm |
