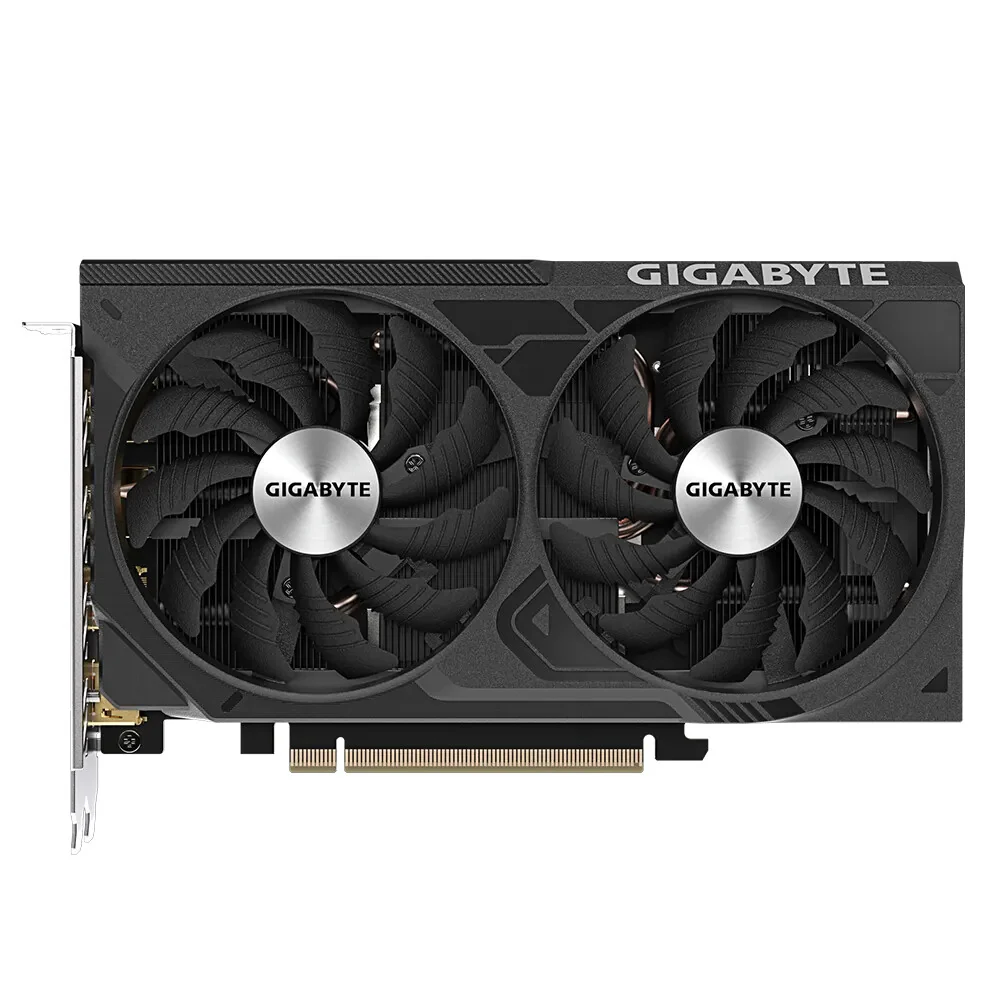

GeForce RTX 4060 Ti Windforce OC, 2535MHz, 16GB GDDR6, 128bit, PCI Express 4.0, 2 x HDMI, CUDA, DirectX 12 Ultimate, OpenGL 4.6
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure..
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate contact to ensure proper cooling.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
| Processor |
|---|
| Maximum displays per videocard |
4 |
| Processor boost clock speed (Gaming mode) |
2565 MHz |
| Processor frequency |
2535 MHz |
| CUDA cores |
4352 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 4060 Ti |
| Graphics processor family |
NVIDIA |
| Memory |
|---|
| Data transfer rate |
18 Gbit/s |
| Memory bus |
128 bit |
| Graphics card memory type |
GDDR6 |
| Discrete graphics card memory |
16 GB |
| Ports & interfaces |
|---|
| HDMI version |
2.1a |
| HDMI ports quantity |
2 |
| Interface type |
PCI Express 4.0 |
| Performance |
|---|
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Dual Link DVI |
No |
| OpenGL version |
4.6 |
| DirectX version |
12 Ultimate |
| TV tuner integrated |
No |
| Design |
|---|
| Product colour |
Black |
| Form factor |
Half-Height/Half-Length (HH/HL) |
| Number of fans |
2 fan(s) |
| Cooling technology |
GIGABYTE WINDFORCE 2X |
| Cooling type |
Active |
| Power |
|---|
| Supplementary power connectors |
1x 8-pin |
| Minimum system power supply |
500 W |
| Weight & dimensions |
|---|
| Depth |
201 mm |
| Height |
41 mm |
| Width |
120 mm |
| Packaging data |
|---|
| Package type |
Box |
