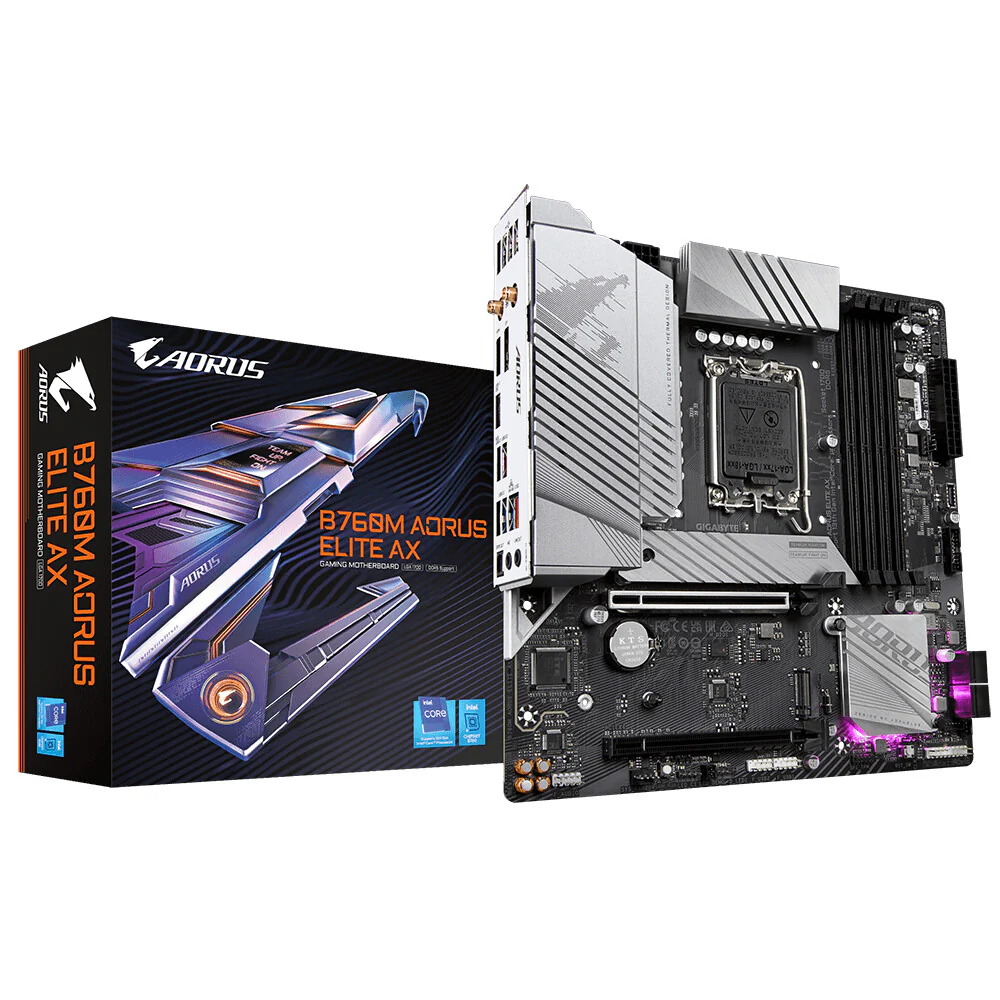

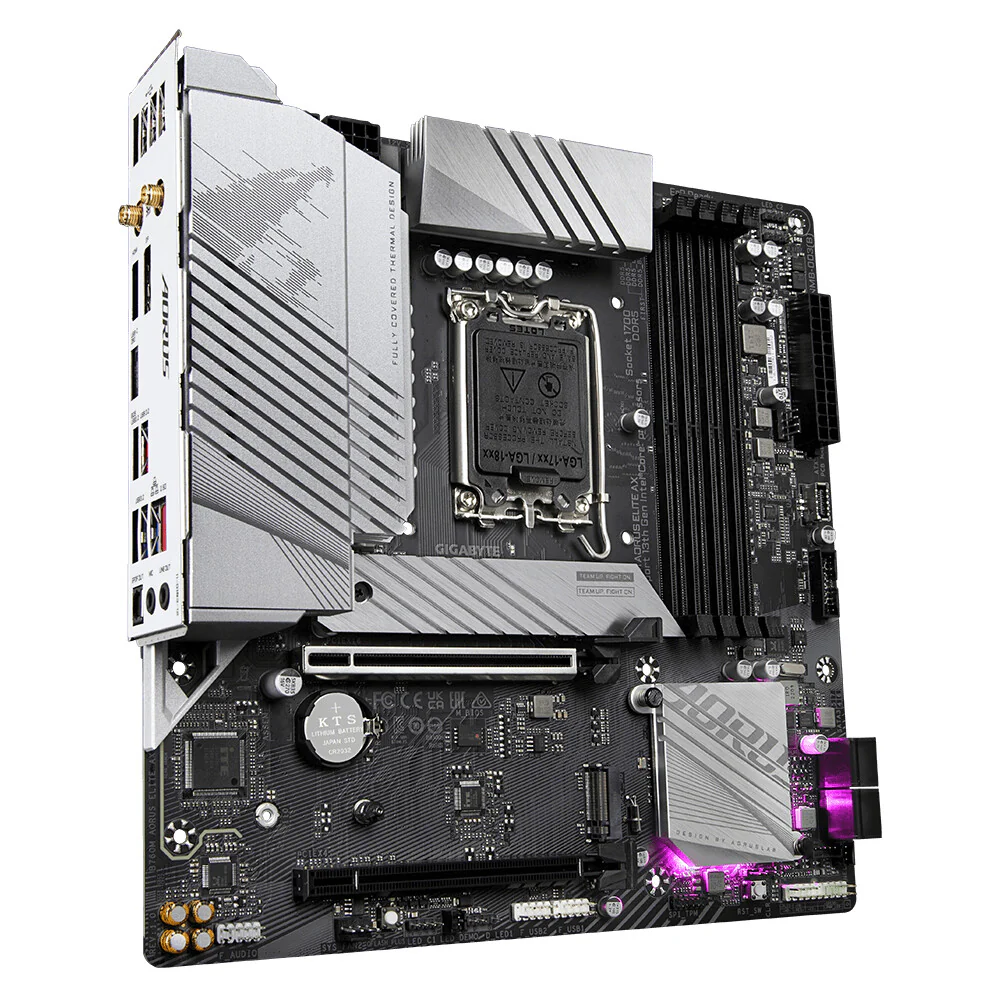

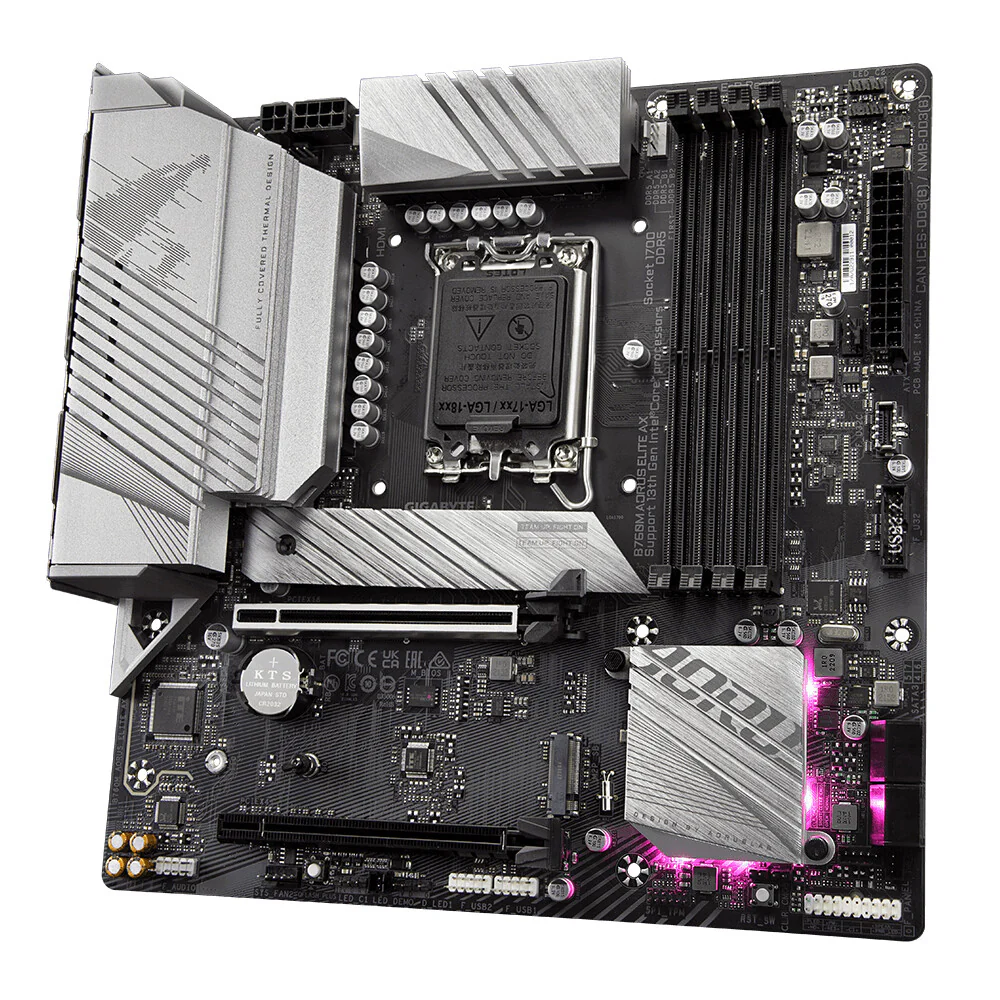

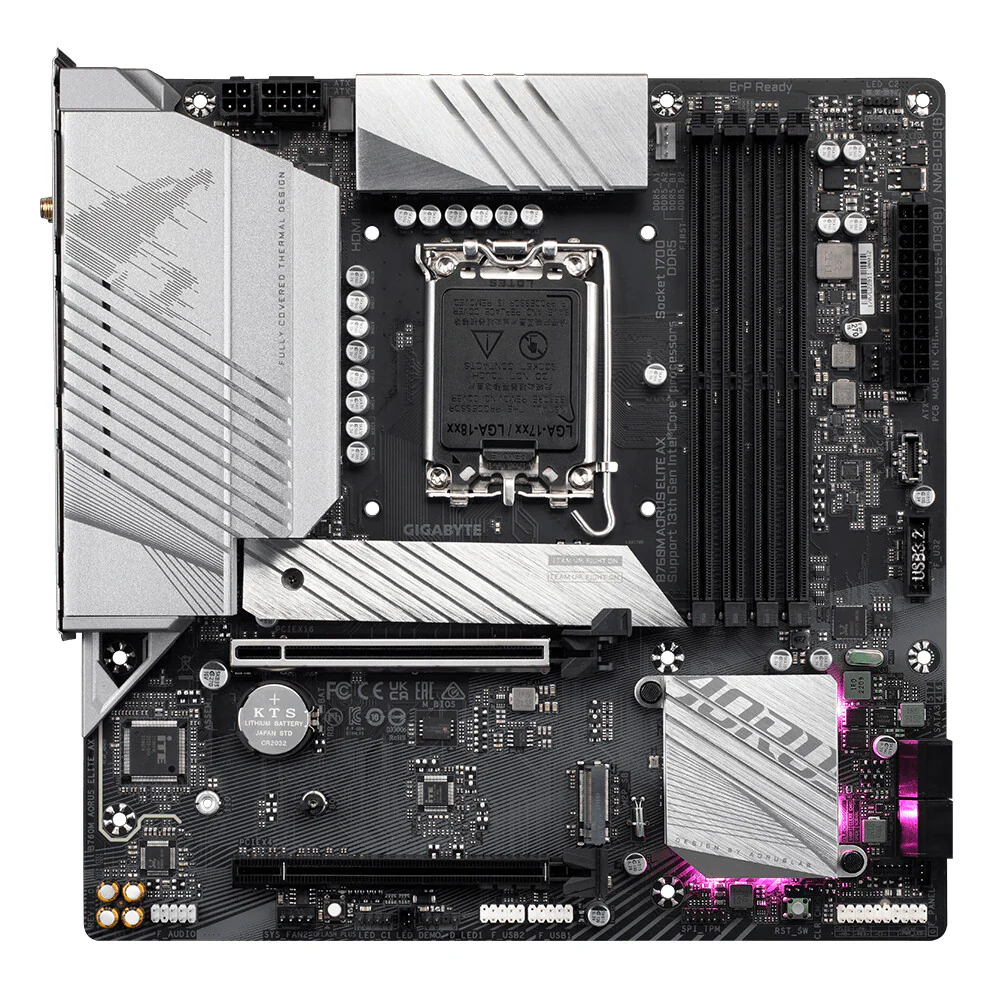

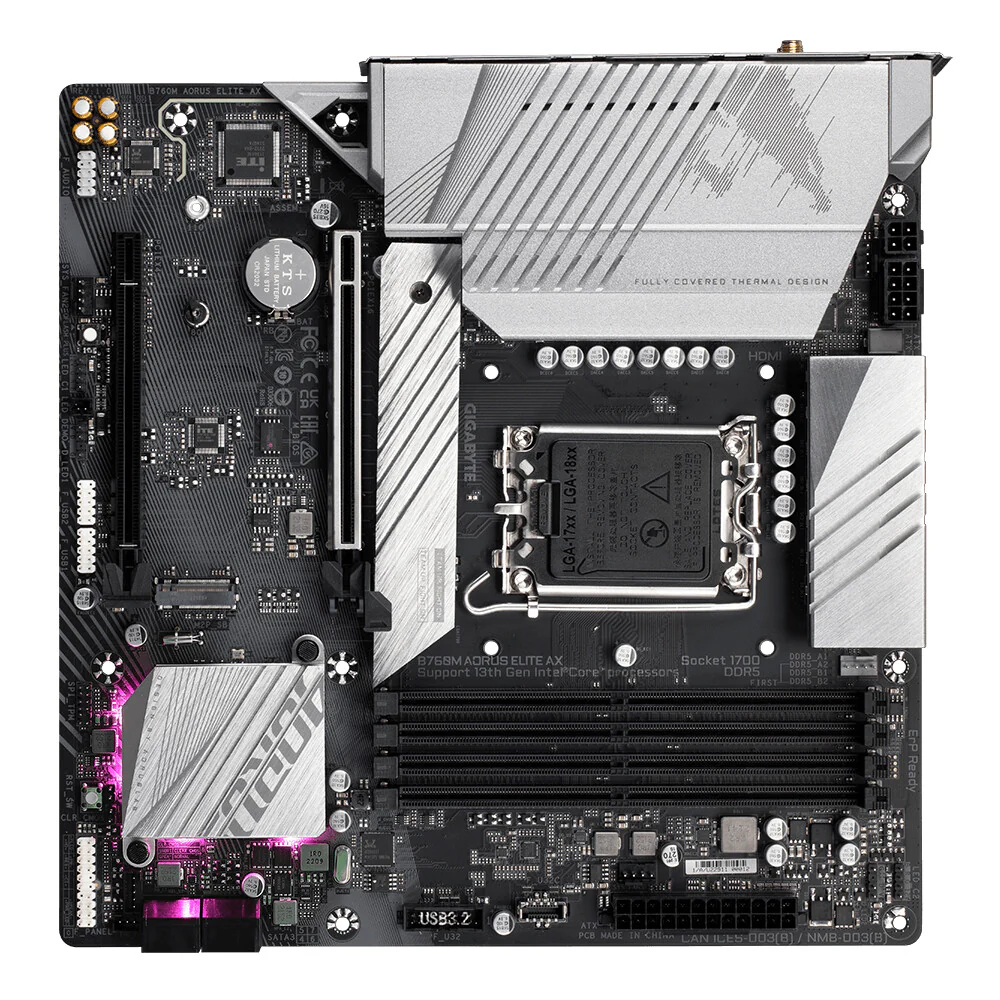

Gigabyte B760M AORUS ELITE AX Micro ATX motherboard - Intel B760 LGA 1700
Micro ATX, Socket LGA 1700, Intel B760 Chipset, 4 x DDR5 DIMM, AMI UEFI BIOS, Wi-Fi 6E (802.11ax), Bluetooth 5.3
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
| Processor | |
|---|---|
| Maximum internal memory supported by processor | 192 GB |
| Supported processor sockets | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 192 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB |
| Supported memory clock speed (max) | 7800 MHz |
| Supported memory clock speeds | 4000,4800,5300,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800 MHz |
| Non-ECC | Yes |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| DirectX version | 12.0 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| Parallel processing technology support | CrossFireX |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| Thunderbolt headers | 2 |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of chassis fan connectors | 3 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| S/PDIF out connector | Yes |
| Total number of SATA connectors | 4 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |

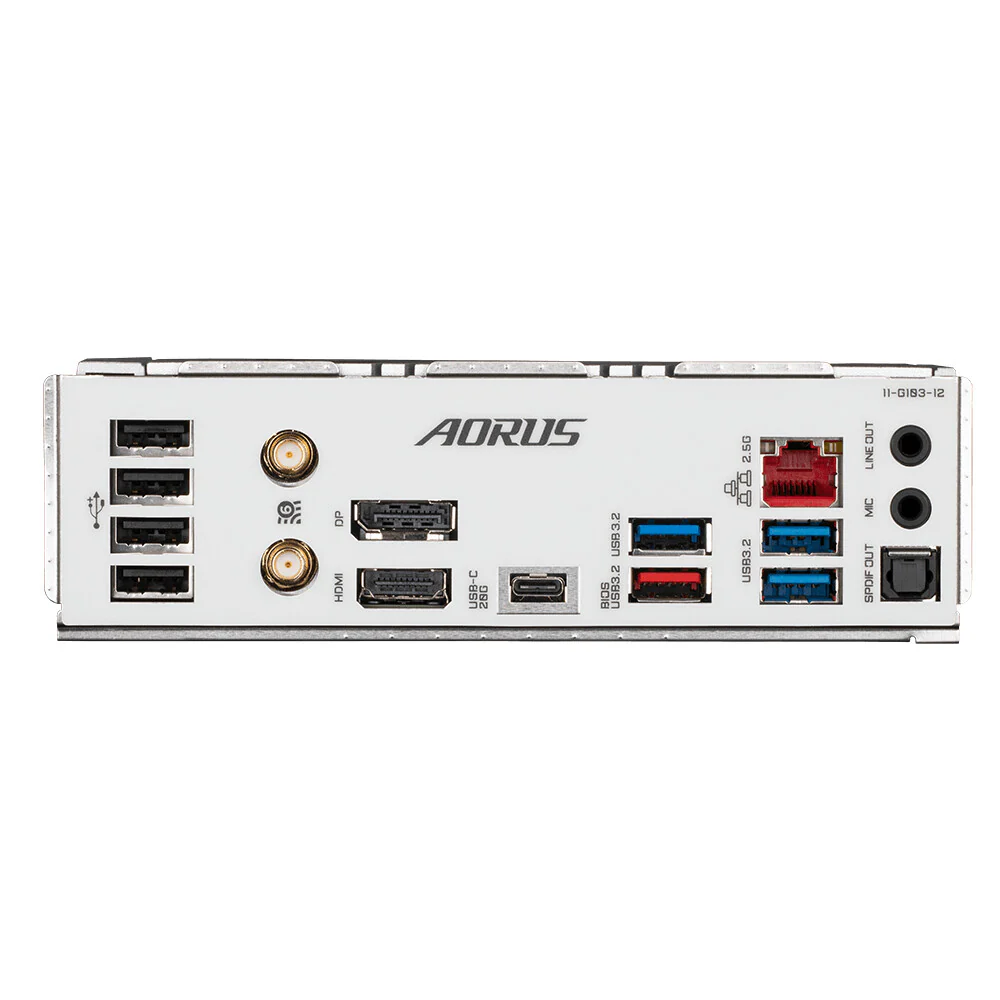

| Rear panel I/O ports | |
|---|---|
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 4 |
| Network | |
|---|---|
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Power source type | ATX |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel B760 Express |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
|---|---|
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS jumper | Yes |
| ACPI version | 5.0 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Logistics data | |
|---|---|
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Packaging data | |
|---|---|
| Package weight | 1.56 kg |
| Package height | 68 mm |
| Package depth | 268 mm |
| Package width | 270 mm |
| Battery | |
|---|---|
| Battery type | CR2032 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Weight & dimensions | |
|---|---|
| Height | 35 mm |
| Depth | 244 mm |
| Width | 244 mm |
| Packaging content | |
|---|---|
| Bundled software | Norton Internet Security |
| Cables included | SATA |
| Batteries included | Yes |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
$195.16
