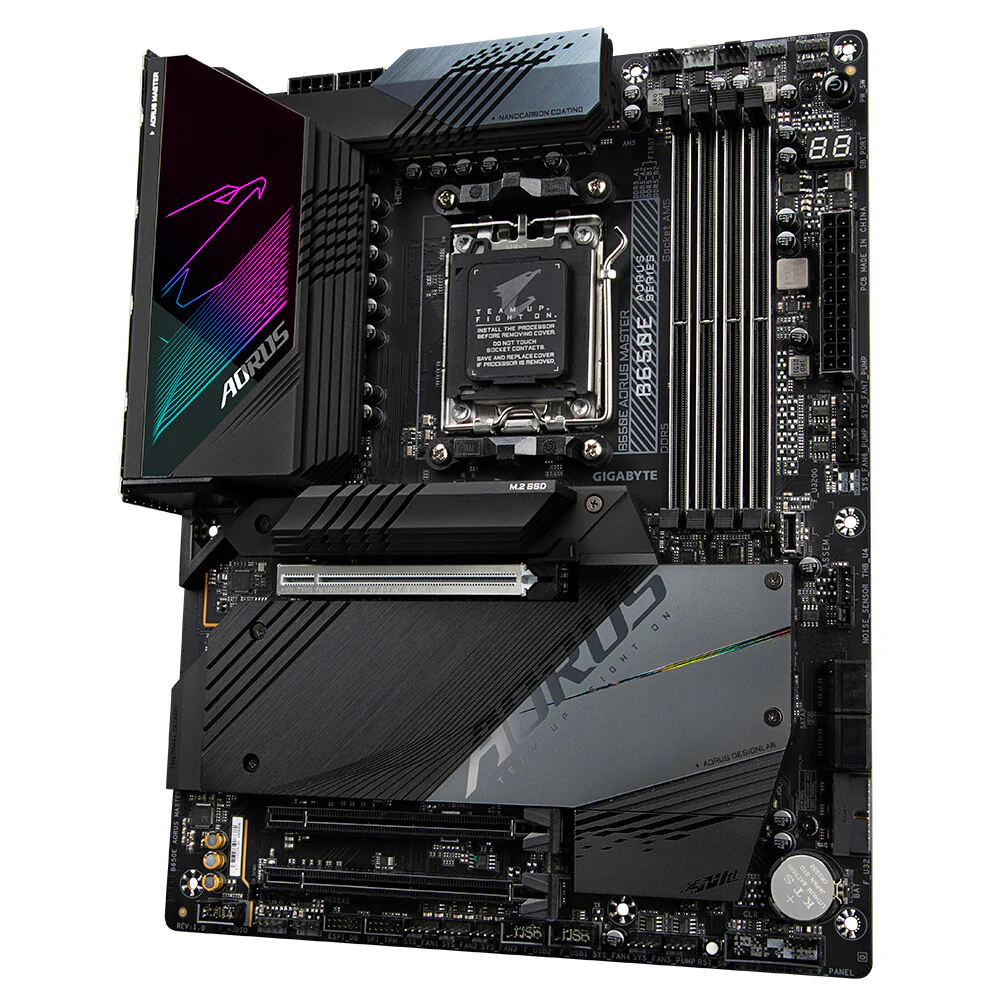

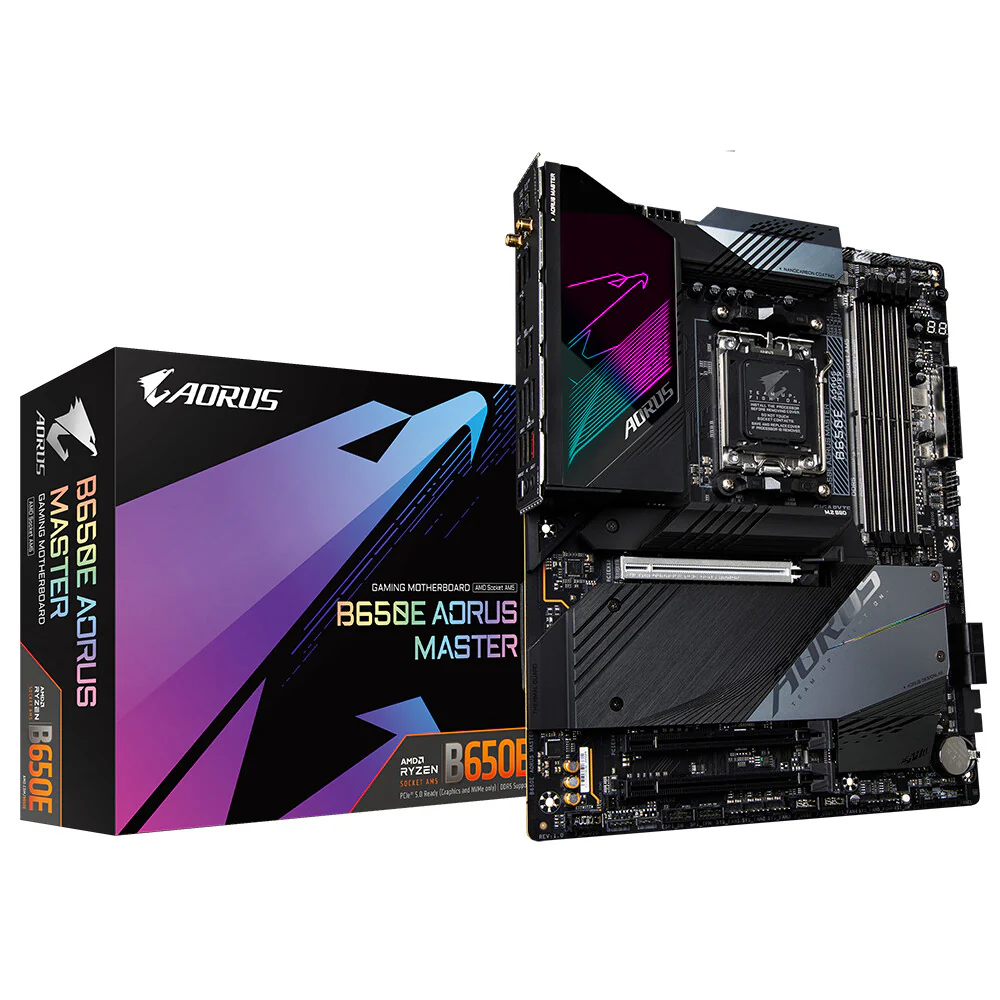

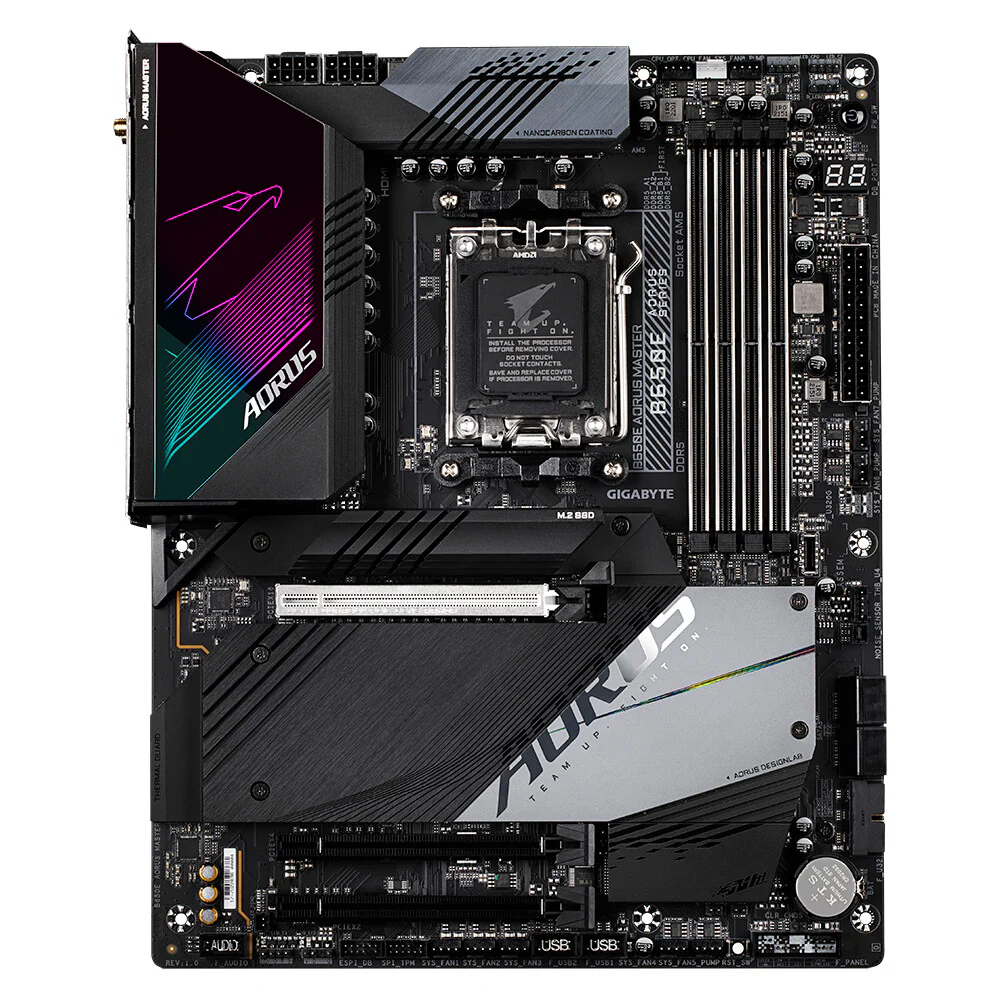

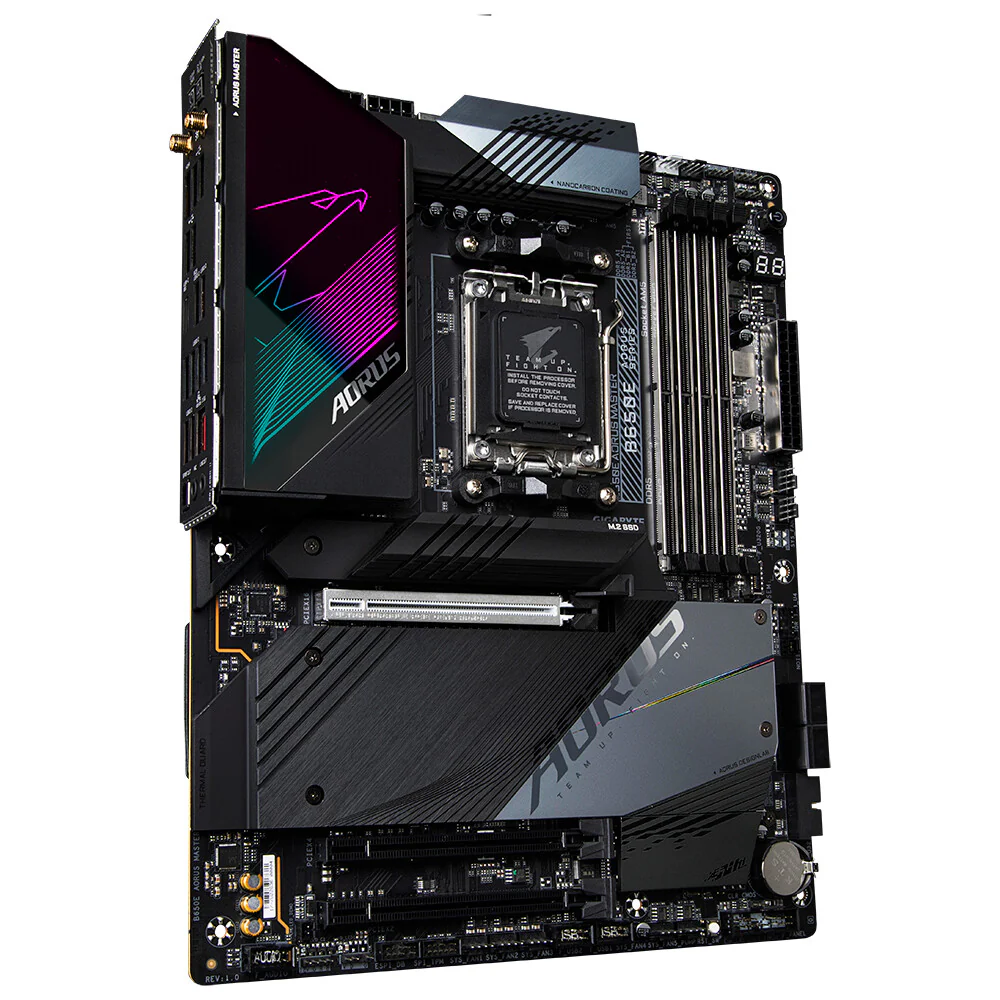

Gigabyte B650E AORUS MASTER ATX motherboard - AMD B650 Socket AM5
AMD Socket AM5, AMD B650, 4 x DDR5 DIMM, HDMI, 2.5GbE LAN, Wi-Fi 6E RZ616, Bluetooth 5.2, ATX, 305 x 244mm
B650E AORUS Master powers up the latest AMD Ryzen 7000 series processors with the advanced power design. With the most capable thermal design, B650E AORUS Master boosts performance and power consumption. Memory Overclocking is up to DDR5-8000, providing professional gamers with a denser and faster system memory experience. With PCIe5.0 M.2 slots, it's capable of delivering superior bandwidth and giving you much faster data transferring speeds than the previous generation. And the newly introduced EZ-latches allow you to install M.2 and detach your graphics card easily. It is the most DIY-friendly motherboard ever presented by AORUS.
| Processor | |
|---|---|
| Supported processor sockets | Socket AM5 |
| Maximum number of SMP processors | 1 |
| Compatible processor series | AMD Ryzen™ 7 |
| Processor socket | Socket AM5 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 192 GB |
| Supported memory clock speeds | 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz |
| Non-ECC | Yes |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 8 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Discrete graphics support | Yes |
| DirectX version | 12.0 |
| HDCP | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| 12V power connector | Yes |
| Number of chassis fan connectors | 8 |
| CPU fan connector | Yes |
| Number of EATX power connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2x2 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |

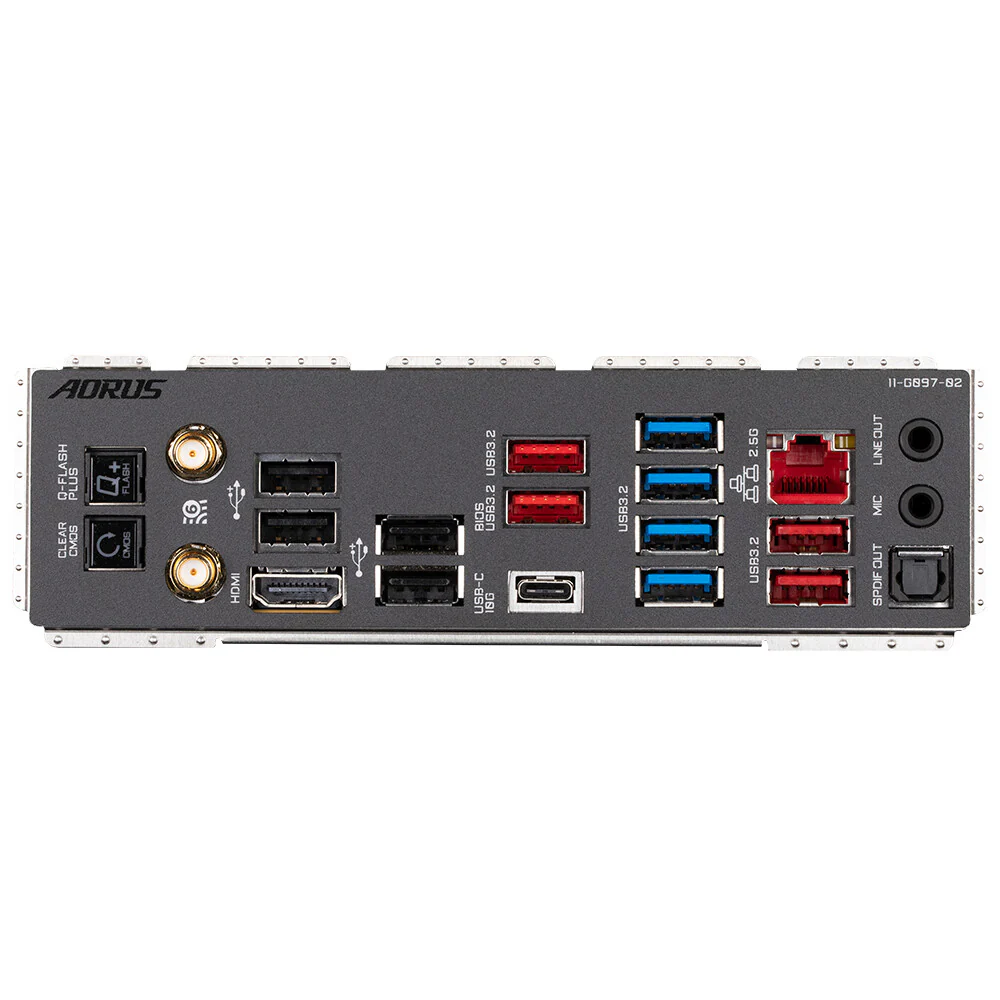

| Rear panel I/O ports | |
|---|---|
| USB connector type | USB Type-A, USB Type-C |
| WiFi-AP antenna jack | 2 |
| Digital audio optical out | 1 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 4 |
| Network | |
|---|---|
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| WLAN controller model | AMD RZ616 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| PC health monitoring | Fan, Noise, Temperature, Voltage, Water cooling |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC1220-VB |
| Motherboard chipset | AMD B650 |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| BIOS | |
|---|---|
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| ACPI version | 5.0 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Logistics data | |
|---|---|
| Country of origin | Taiwan |
| Products per shipping (inner) case | 1 pc(s) |
| Packaging data | |
|---|---|
| Package weight | 2.88 kg |
| Package height | 80 mm |
| Package depth | 294 mm |
| Package width | 345 mm |
| Battery | |
|---|---|
| Battery type | CR2032 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Weight & dimensions | |
|---|---|
| Height | 35 mm |
| Depth | 244 mm |
| Width | 305 mm |
| Packaging content | |
|---|---|
| Bundled software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Cables included | SATA |
| Batteries included | Yes |
| Antenna included | Yes |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
- Introducing B650E AORUS MASTER - Master your Game
