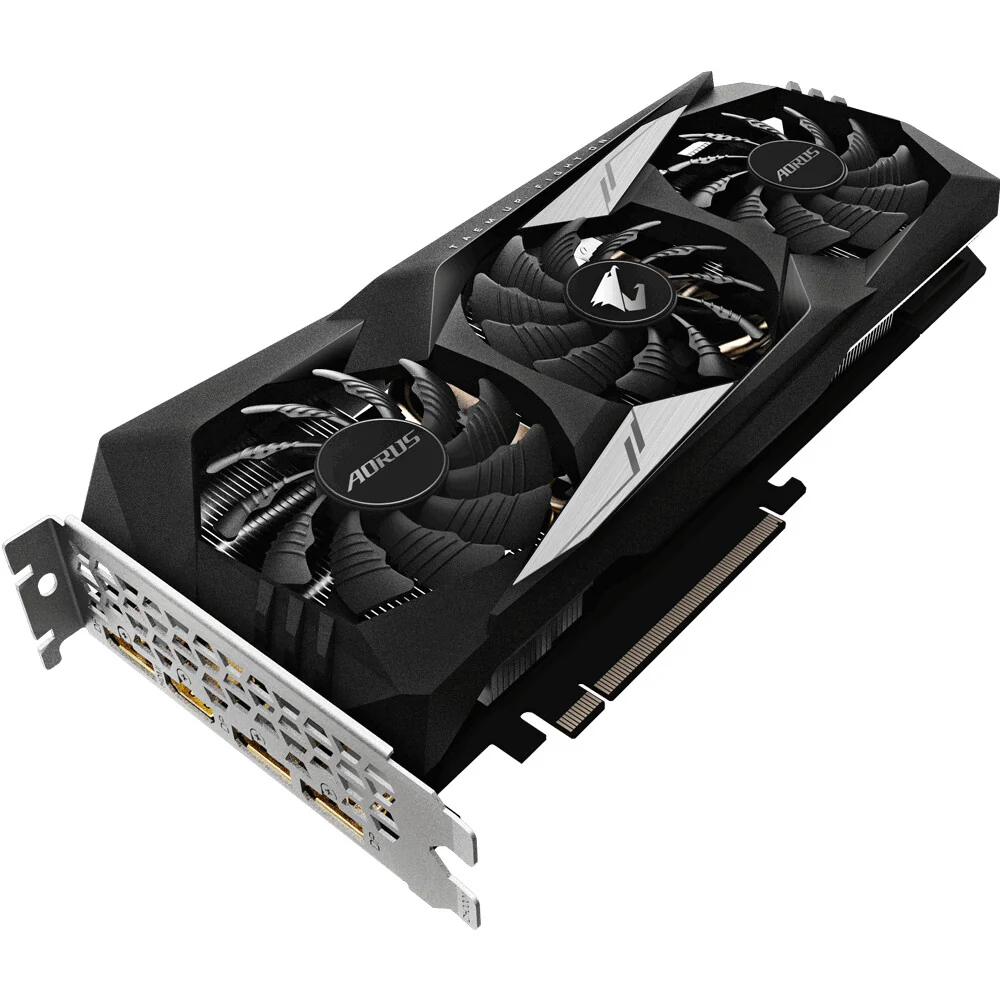

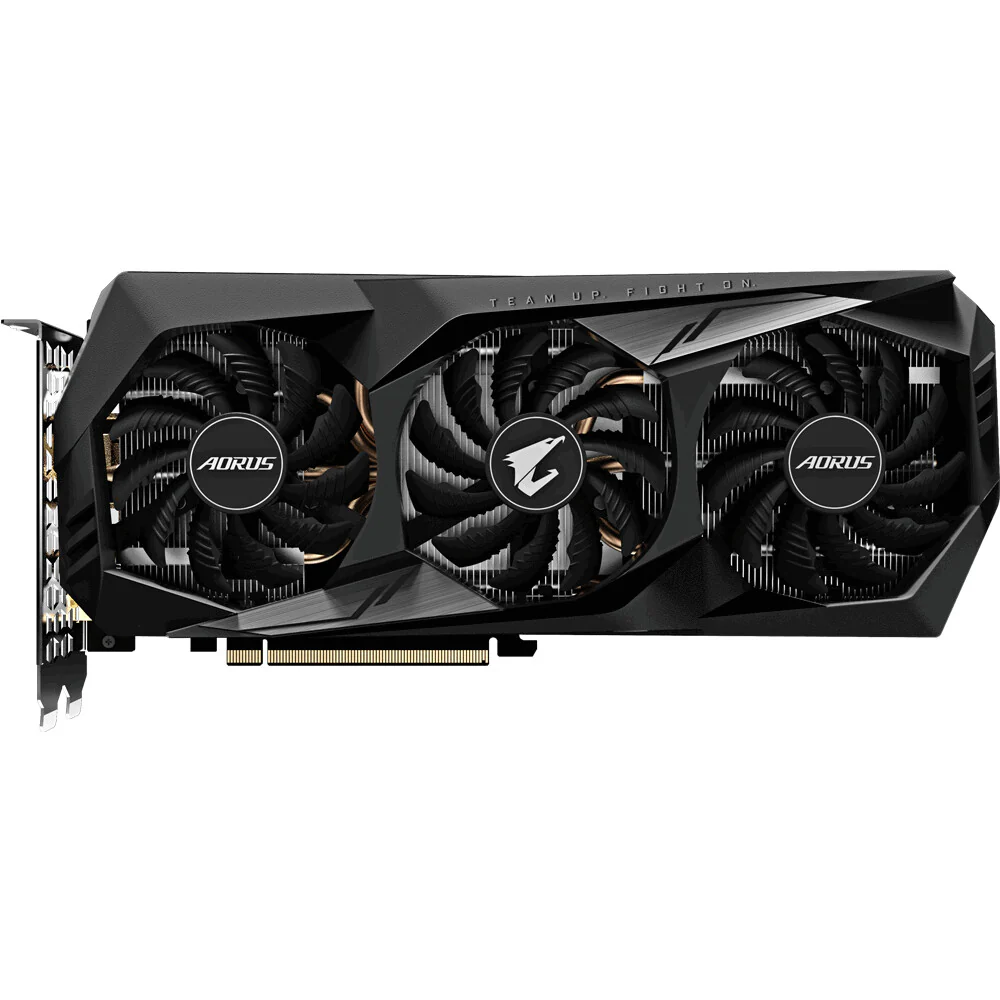

GIGABYTE AORUS - NVIDIA 6 GB GDDR6 GeForce GTX 1660 SUPER graphics card
COOLING SOLUTION
COOLING SYSTEM
AORUS provides the all-around cooling solution for all key components of the graphics card. We take care not only GPU but also VRAM and MOSFET, to ensure a stable overclock operation and longer life. WINDFORCE 3x 80mm cooling system is the most innovative cooling solution that provides the most efficient thermal performance for the graphics card.
STYLE
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
EXCELLENCE
PREMIUM BUILD IN EVERY ASPECT
AORUS graphics are dedicated to perfect quality. Excellent circuit design with the top-grade materials, not only maximizes the performance of the GPU, but also maintains stable and long-life operation.
UTILITY
INTUITIVE AORUS ENGINE
Clock speeds, voltage, fan performance, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface. (*The interface and functionality of the software is subject to each model.)
| Processor | |
|---|---|
| Parallel processing technology support | NVIDIA Turing |
| Maximum displays per videocard | 4 |
| Processor frequency | 1875 MHz |
| CUDA cores | 1536 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce GTX 1660 SUPER |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 288 GB/s |
| Number of pipelines | 16 |
| Memory clock speed | 12000 MHz |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 6 GB |
| Ports & interfaces | |
|---|---|
| TV-out | No |
| DisplayPort version | 1.4 |
| HDMI version | 2.0b |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 3.0 |
| Performance | |
|---|---|
| Dual Link DVI | No |
| OpenGL version | 4.6 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
| PhysX | Yes |
| Design | |
|---|---|
| Illumination | Yes |
| Illumination colour | Blue, Green, Red |
| Number of fans | 3 fan(s) |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 450 W |
| General | |
|---|---|
| Product Family | AORUS |
| Weight & dimensions | |
|---|---|
| Depth | 40.5 mm |
| Height | 120 mm |
| Length | 280 mm |
| Packaging data | |
|---|---|
| Manual | Yes |
| User guide | Yes |
| Drivers included | Yes |
