ATX/Micro ATX/Mini-ITX, 2x3.5", 5x2.5", 2x5.25", 230x475x468mm, 8.5kg, Black

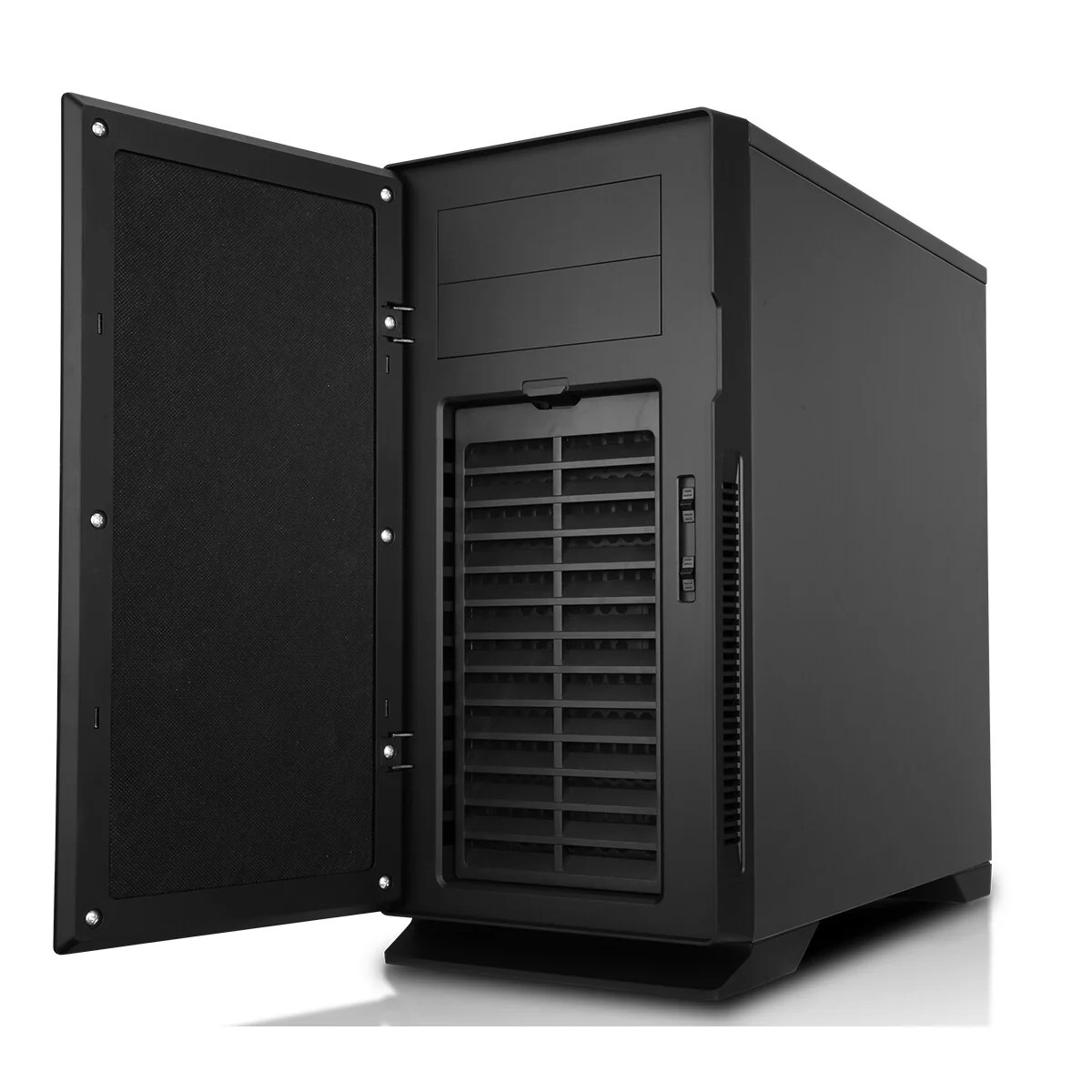

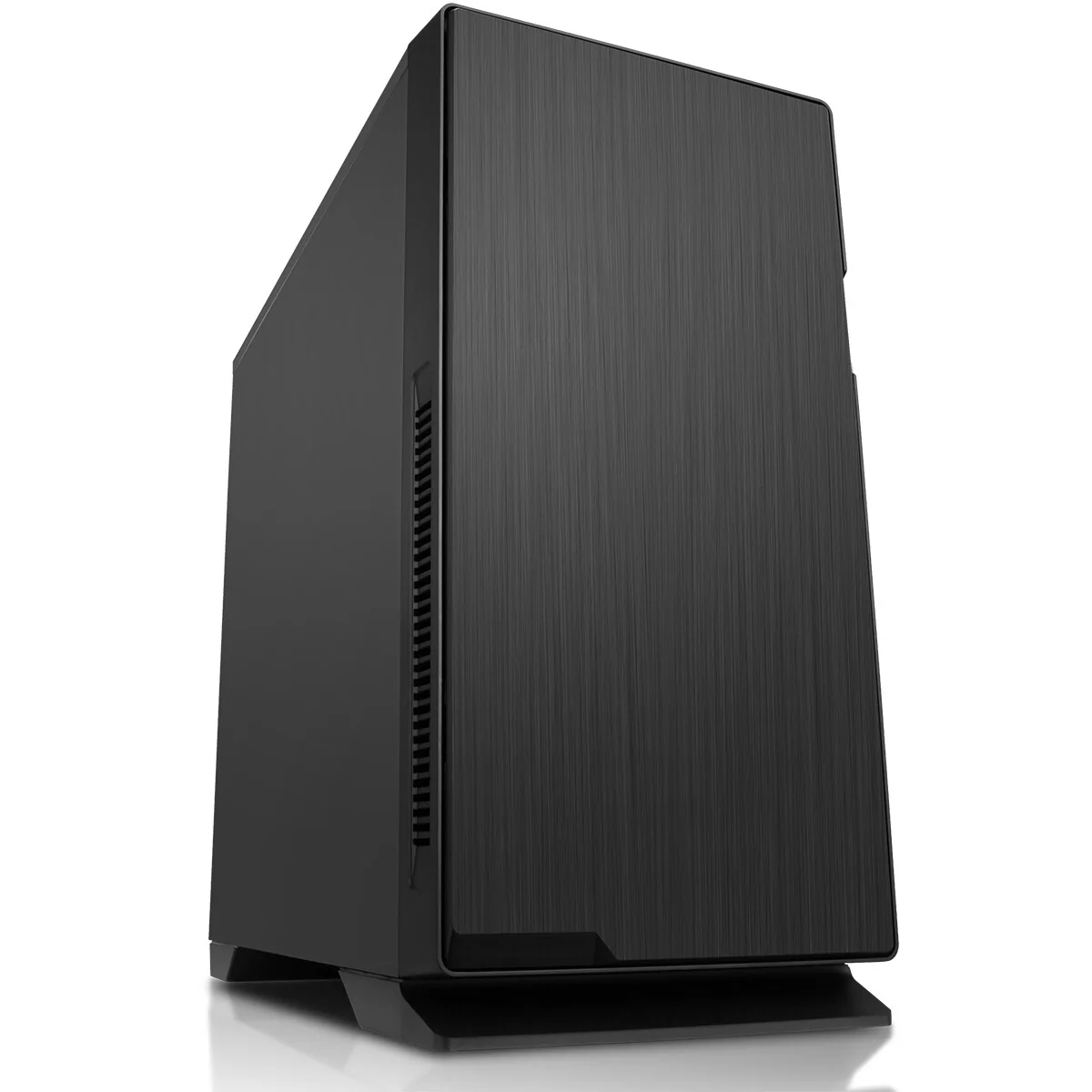

Eclipse RGB Tempered Glass Gaming Case
The silent case with soundproofing for the gaming enthusiast who wants a Cool and Quiet rig – the built-in sound dampening matting will keep your system quiet and allow you to hear what you want to be hearing. Comes with HD Audio, 2 x USB 2.0 & 2 x USB3.0. Super speed I/O Ports are located on the top of the front panel for easy access. Outstanding design, luxurious black colour with full mesh on the front panel and top cover for high-end cooling. Rolled edges for safety, 2 tool-free HDD brackets allowing easy assembly, additional SSD on the back of motherboard. Supports 415mm VGA card and 175mm CPU cooler.
| Design |
|---|
| Maximum graphics card length |
41.5 cm |
| Maximum CPU cooler height |
17.5 cm |

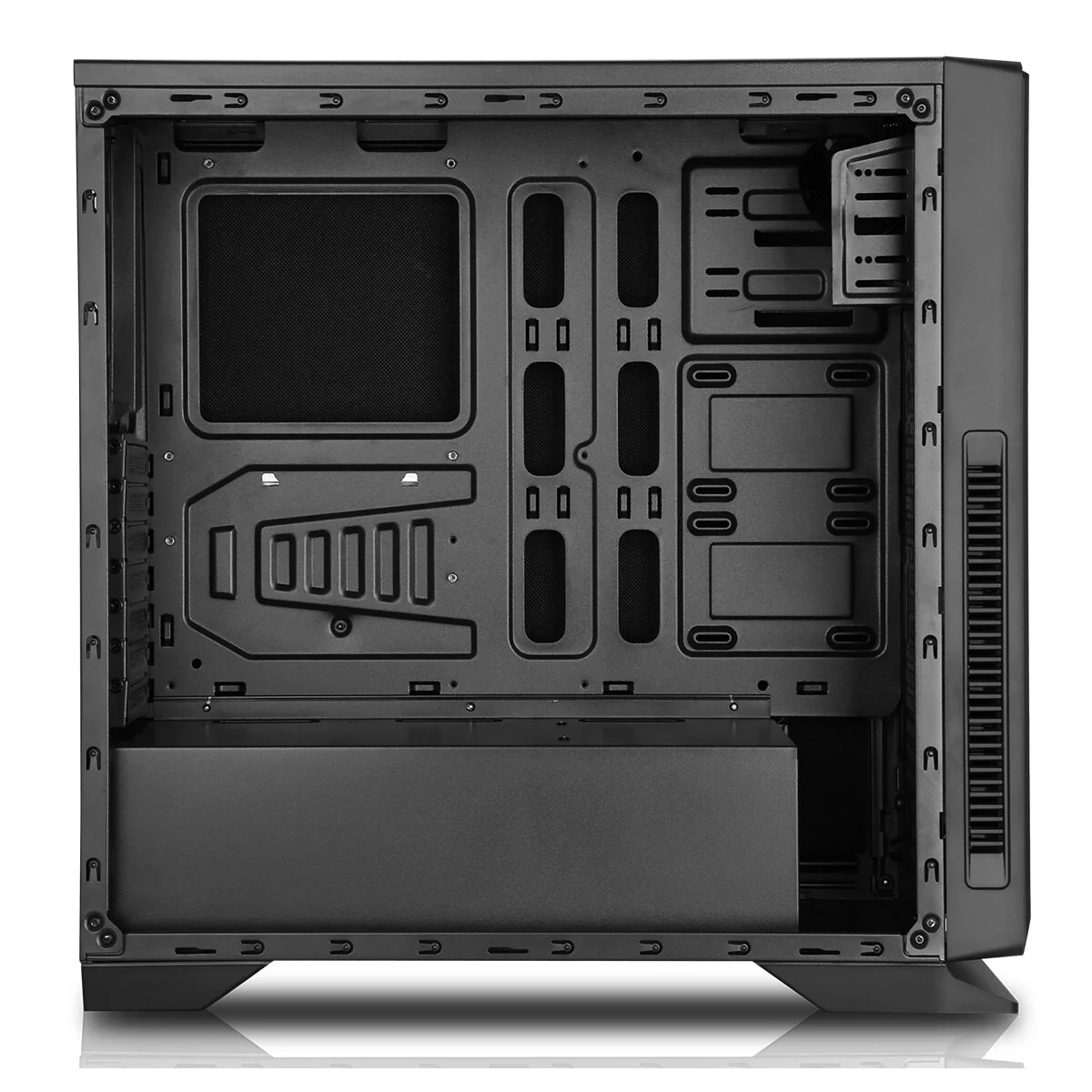

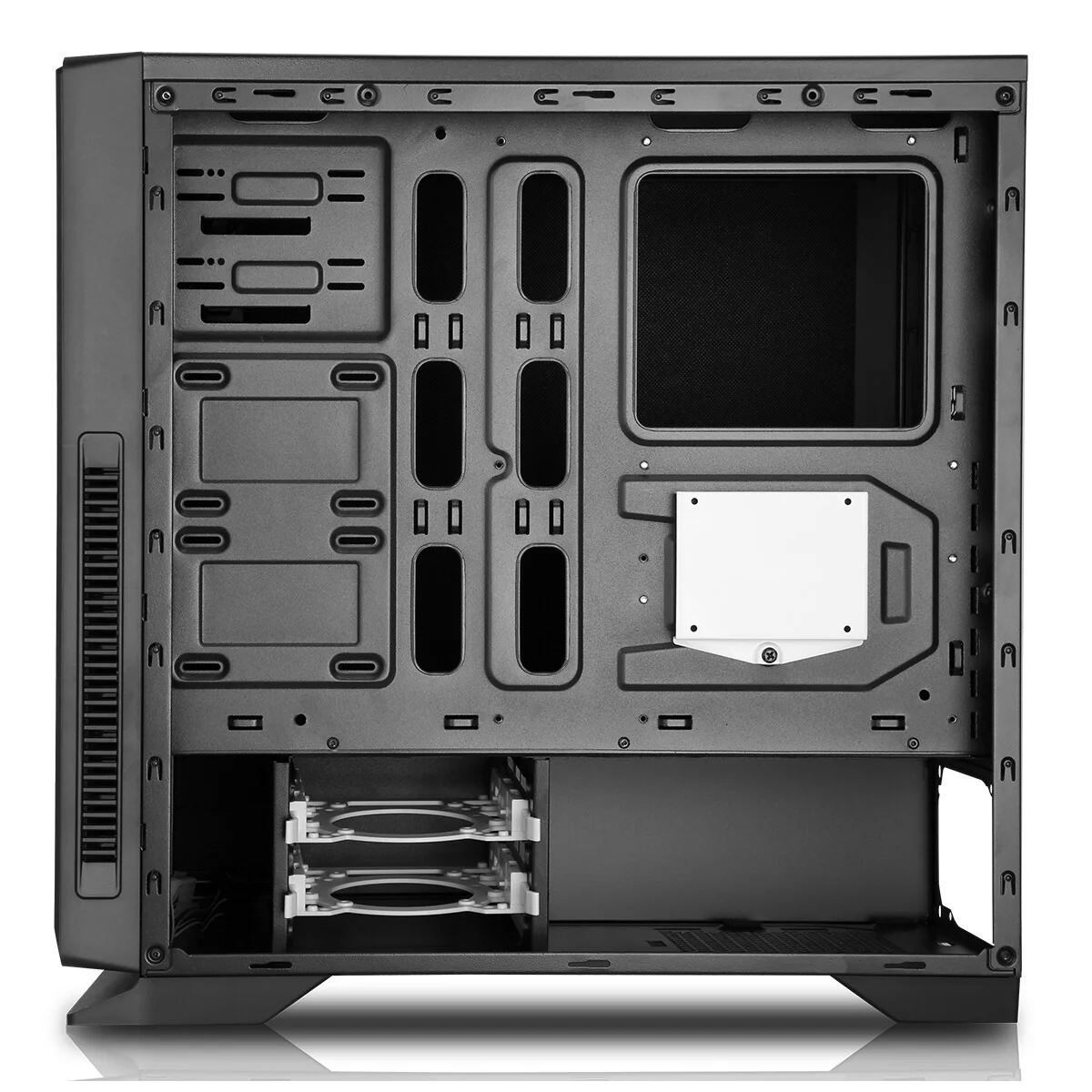

| Cable management |
Yes |
| Anti-dust filter |
Yes |
| Side window |
No |
| Number of expansion slots |
7 |
| Number of external 5.25" bays |
2 |
| Number of 2.5" bays |
5 |
| Number of 3.5" bays |
2 |
| Number of 5.25" bays |
2 |
| Supported motherboard form factors |
ATX, micro ATX, Mini-ITX |
| Material |
Plastic, Steel |
| Type |
PC |
| Form factor |
Midi Tower |
| Power supply |
|---|
| Supported power supply form factors |
ATX |
| Power supply location |
Bottom |
| Power supply included |
No |
| Ports & interfaces |
|---|
| Audio output |
Yes |
| Audio input |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
2 |
| Cooling |
|---|
| Top radiator sizes supported |
240 mm |
| Front radiator sizes supported |
240 mm |
| Liquid cooling capability |
Yes |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
2 |
| Rear fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans installed |
1x 120 mm |
| Front fans diameters supported |
120,140 mm |
| Number of front fans supported (max) |
2 |
| Storage |
|---|
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Card reader integrated |
Yes |
| Supported HDD sizes |
2.5,3.5" |
| Weight & dimensions |
|---|
| Material thickness |
0.7 mm |
| Weight |
8.5 kg |
| Height |
468 mm |
| Depth |
475 mm |
| Width |
230 mm |
| Packaging data |
|---|
| Package weight |
10 kg |
| Package height |
555 mm |
| Package depth |
305 mm |
| Package width |
520 mm |
| Other features |
|---|
| Fan connector |
3-pin |
