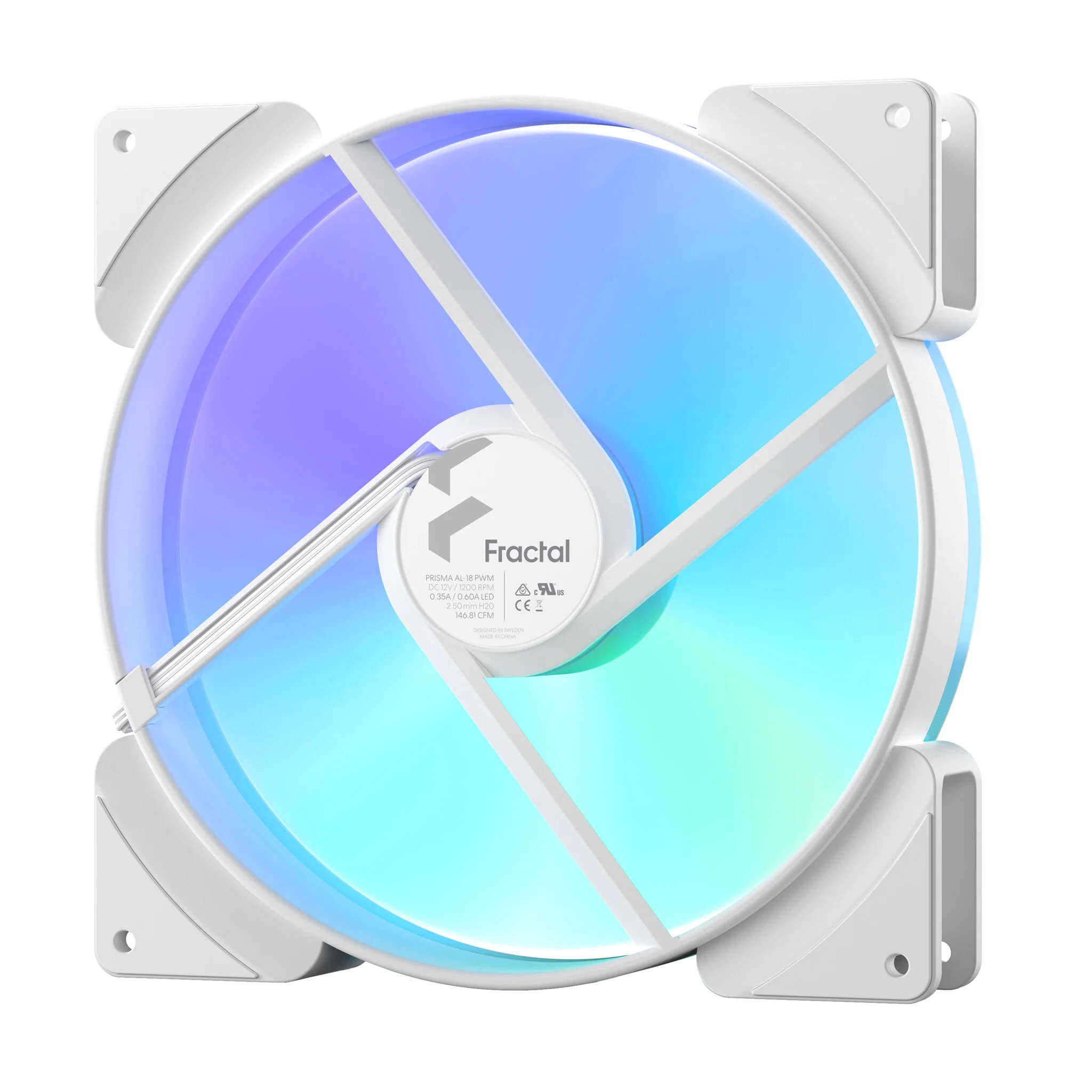

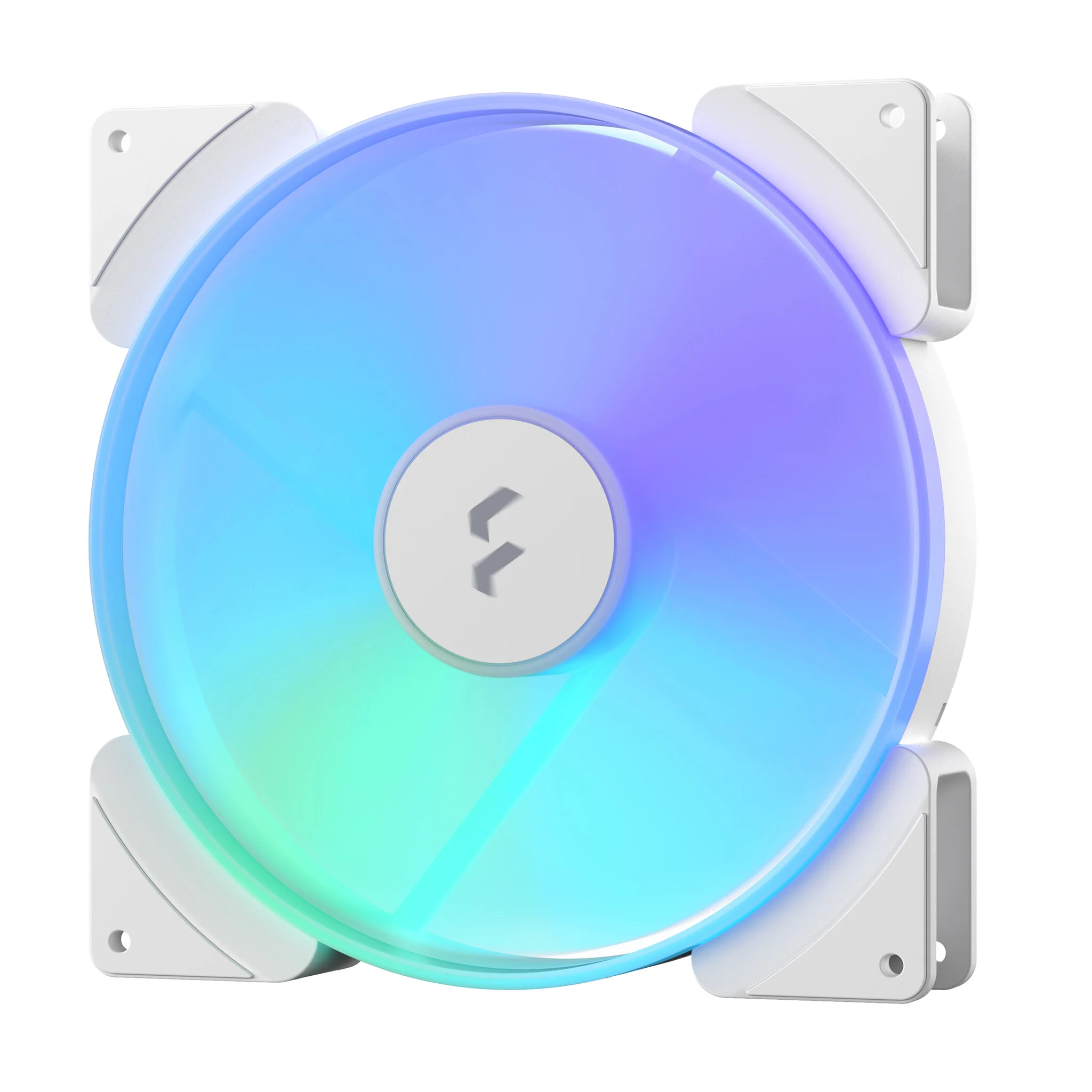

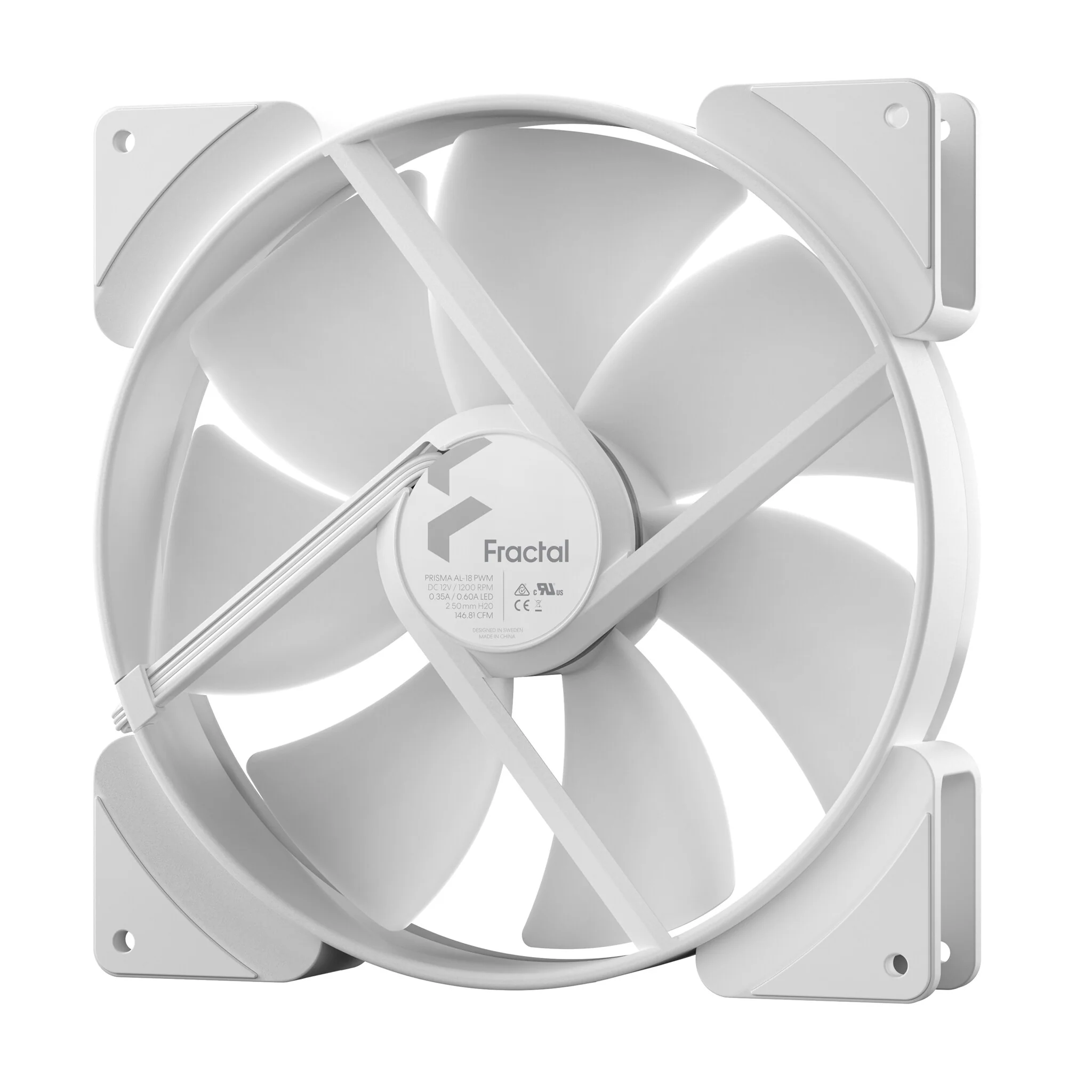

Fractal Design Prisma AL-18 - PWM Computer Case Fan in White - 180mm
PWM precision
- PWM control with a wide 300-1200 RPM speed range ideal for radiators
- Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency
- Aerodynamic stator struts with embedded wiring reduce noise and turbulence
Manually Controllable
- Adjust R1 RGB controller (sold separately) enables physical control of colors and effects
- Fits standard 180 mm fan mounts with 165 x 165 mm screw hole pattern
- Black sleeved power cables offer an extra touch of style
Maximum compatibility
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma
High-grade LLS bearing
Long-Life Sleeve bearing with 90,000-hour MTTF delivers long-lasting dependability
Smooth operation

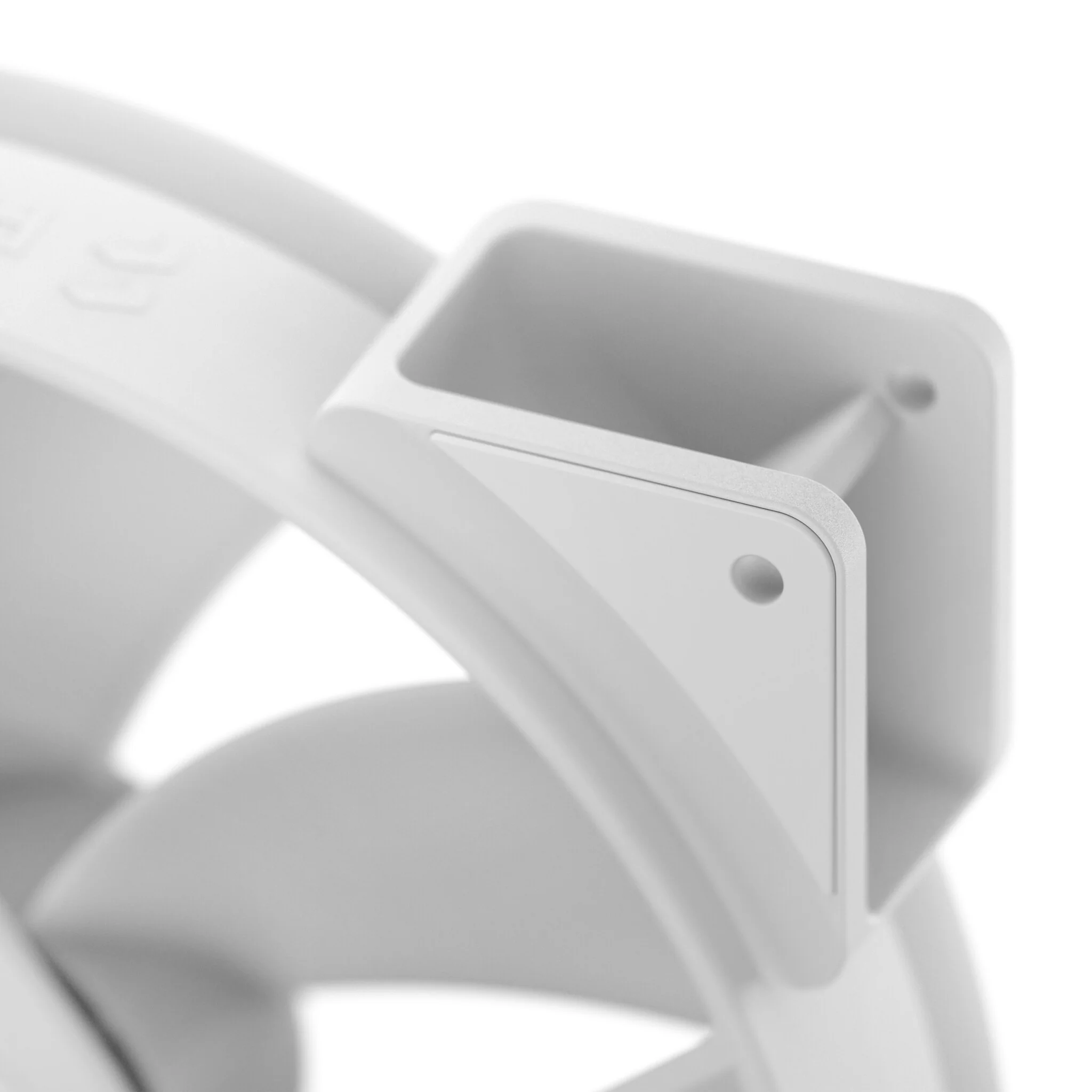

Integrated synthetic rubber corners nullify fan vibrations
Chained connections
Chain RGB cables to simplify wiring and run multiple fans or additional RGB devices from a single connector
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 90000 h |
| Quantity per pack | 1 pc(s) |
| Bearing type | Sleeve bearing |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.5 mmH2O |
| Minimum air pressure | 0.44 mmH2O |
| Airflow | 249.56 m³/h |
| Maximum airflow | 146.8 cfm |
| Minimum airflow (imperial) | 43.1 cfm |
| Noise level (high speed) | 37.4 dB |
| Noise level (low speed) | 14.9 dB |
| Rotational speed (max) | 1200 RPM |
| Rotational speed (min) | 300 RPM |
| Fan diameter | 18 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Number of LEDs | 12 |
| Illumination LED | Yes |
| Number of fan blades | 7 |
| Number of fans | 1 fan(s) |
| Product colour | White |
| Power | |
|---|---|
| LED power consumption (fan) | 3 W |
| Fan voltage | 12 V |
| Fan current | 0.35 A |
| LED voltage | 5 V |
| Fan power consumption | 4.2 W |
| Starting voltage | 6 V |
| Weight & dimensions | |
|---|---|
| Package weight | 570 g |
| Cable length | 1 m |
| Fan weight | 521 g |
| Fan dimensions (W x D x H) | 180 x 180 x 38 mm |
| Packaging content | |
|---|---|
| Number of screws | 12 |
| Screws included | Yes |
