Fractal Design Prisma - Computer case Fan in White - 140mm

Product image 1
1 / 10

Fractal Design Prisma - Computer case Fan in White - 140mm

140 mm, 500-1700 RPM, 34.1 dB, 103.85 CFM, PWM, RGB

Supports Gigabyte Fusion, ASUS Aura, Razer Chroma, MSI Mystic Light and ASRock Polychrome
Prisma AL-12/14 allows precision software control, enabling Prisma to synergize perfectly with your components. If you prefer physical control, just pair Prisma with the newly released Adjust R1 controller to set colors, brightness, and motion effects with the push of a button.

As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.

Let your system shine
Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components.
- Six individually addressable hub-mounted RGB LEDs
- Specially designed fan blades and outer ring produce an exceptionally uniform glow
- Chainable RGB cables simplify wiring and make the most of available connections
- Black sleeved power cables offer an extra touch of style
- Adjust R1 RGB or Adjust 2 controller (sold separately) enables physical control of colors and effects
- Available in 3-pack

Uniform light

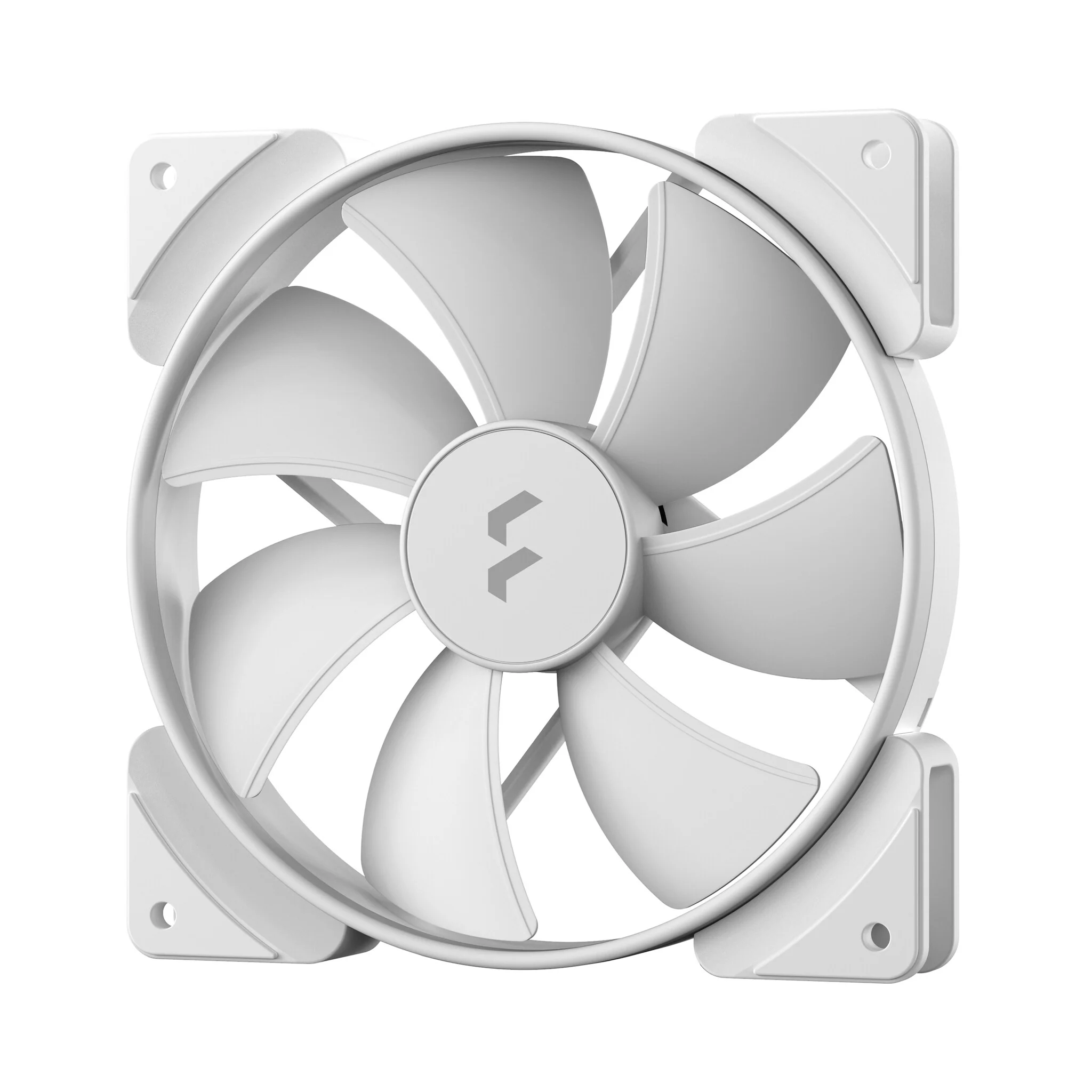

Specially designed white semi-opaque fan blades and outer ring produce an exceptionally uniform glow

Vibrant colors

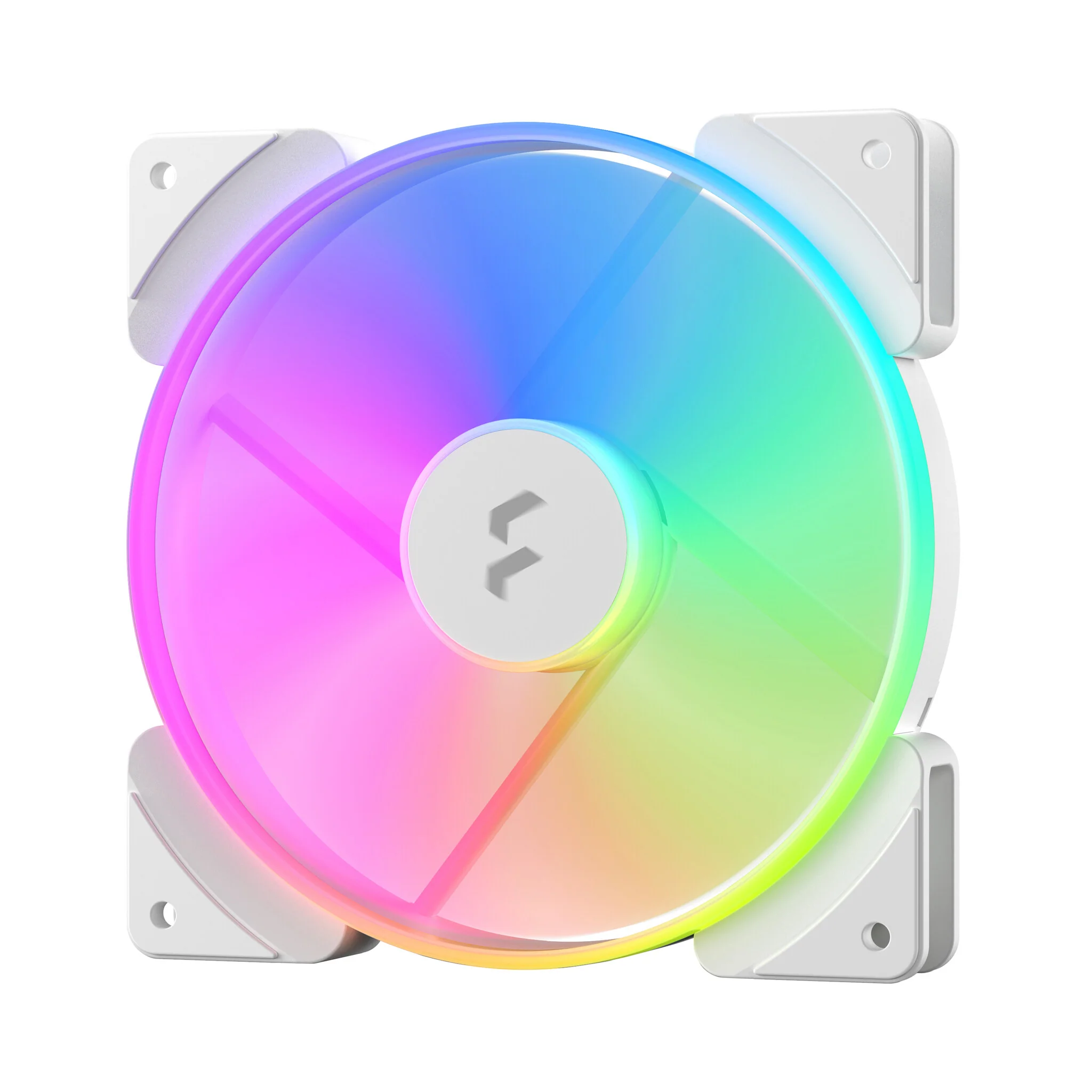

Six hub-mounted individually addressable RGB LEDs deliver powerful lighting in a full spectrum of color choices

Full control
PWM control with a wide speed range ideal for CPU heatsinks and radiators

Aerodynamic performance
- Aerodynamic stator struts with embedded wiring reduce noise and turbulence
- Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency
- Integrated vibration-damping corners made from high-quality synthetic rubber
- LLS (Long Life Sleeve) bearings provide silent operation with a long lifespan

Performance
Mean time between failures (MTBF) 100000 h
Quantity per pack 1 pc(s)
Bearing type Sleeve bearing
Pulse-width modulation (PWM) support Yes
Maximum air pressure 2.38 mmH2O
Minimum air pressure 0.44 mmH2O
Airflow 176.44 m³/h
Maximum airflow 103.85 cfm
Minimum airflow (imperial) 31.67 cfm
Noise level (high speed) 34.1 dB
Noise level (low speed) 15.1 dB
Rotational speed (max) 1700 RPM
Rotational speed (min) 500 RPM
Fan diameter 14 cm
Type Fan
Suitable location Computer case
Design
Fan connector 4-pin
Illumination colour Multi
LED connector type 3-pin
Number of LEDs 6
Illumination LED Yes
Number of fan blades 7
Number of fans 1 fan(s)
Product colour White
Power
LED power consumption (fan) 1.5 W
Fan voltage 12 V
Fan current 0.18 A
LED voltage 5 V
Fan power consumption 2.16 W
Starting voltage 7 V
Weight & dimensions
Package weight 248 g
Cable length 0.5 m
Fan weight 200 g
Fan dimensions (W x D x H) 140 x 140 x 25 mm
Packaging content
Number of screws 4
Screws included Yes
$28.85

Original: $82.44

-65%
Fractal Design Prisma - Computer case Fan in White - 140mm

$82.44

$28.85
