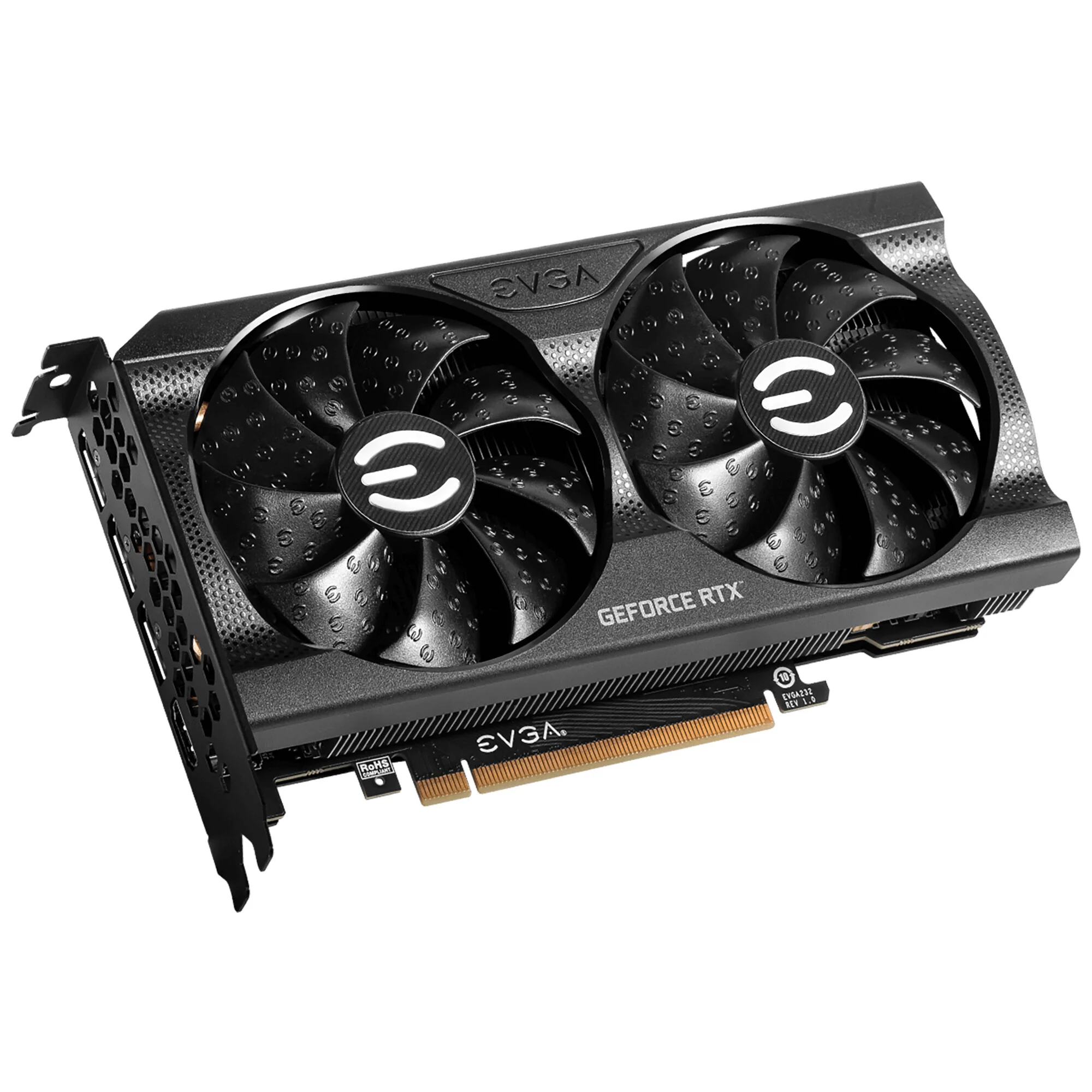

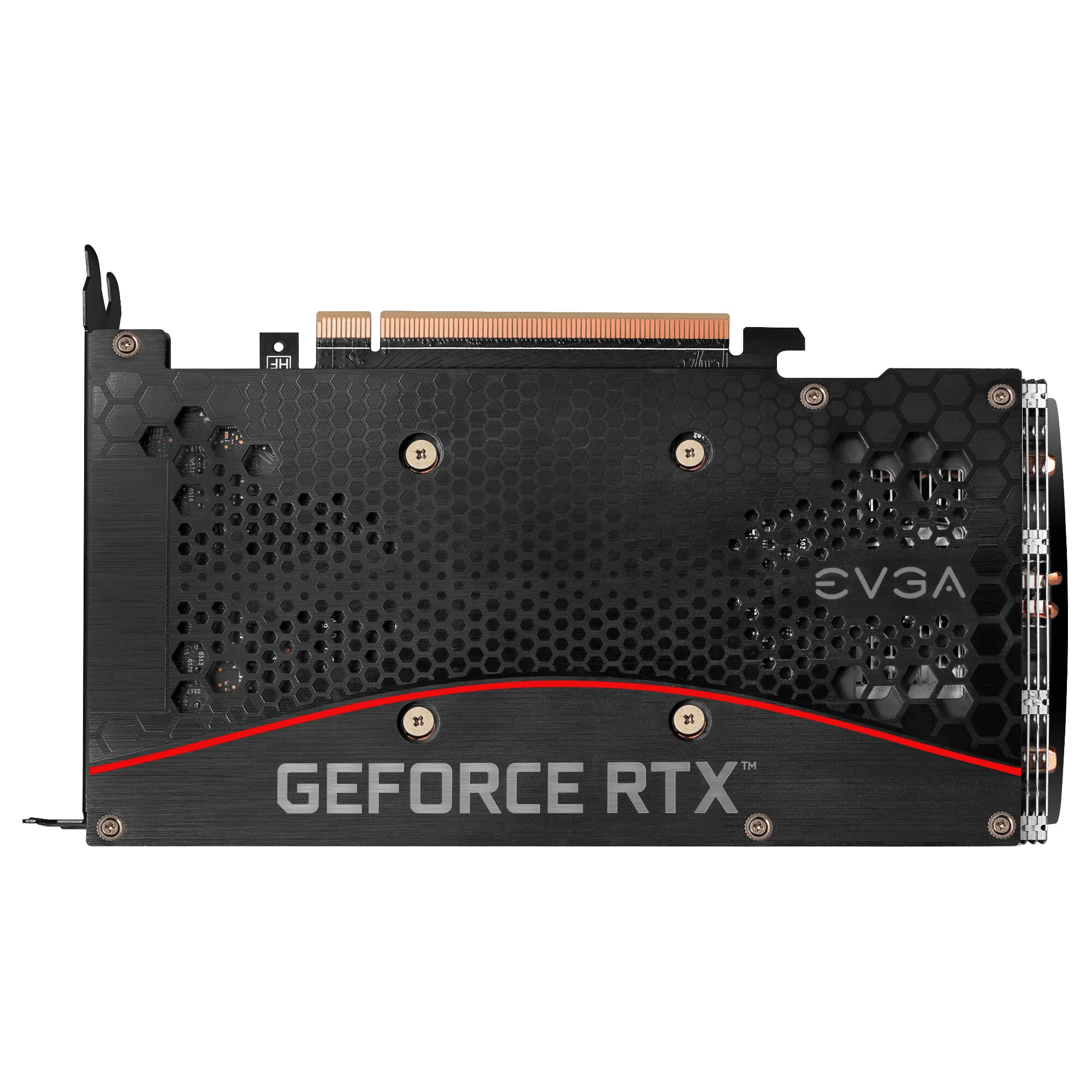

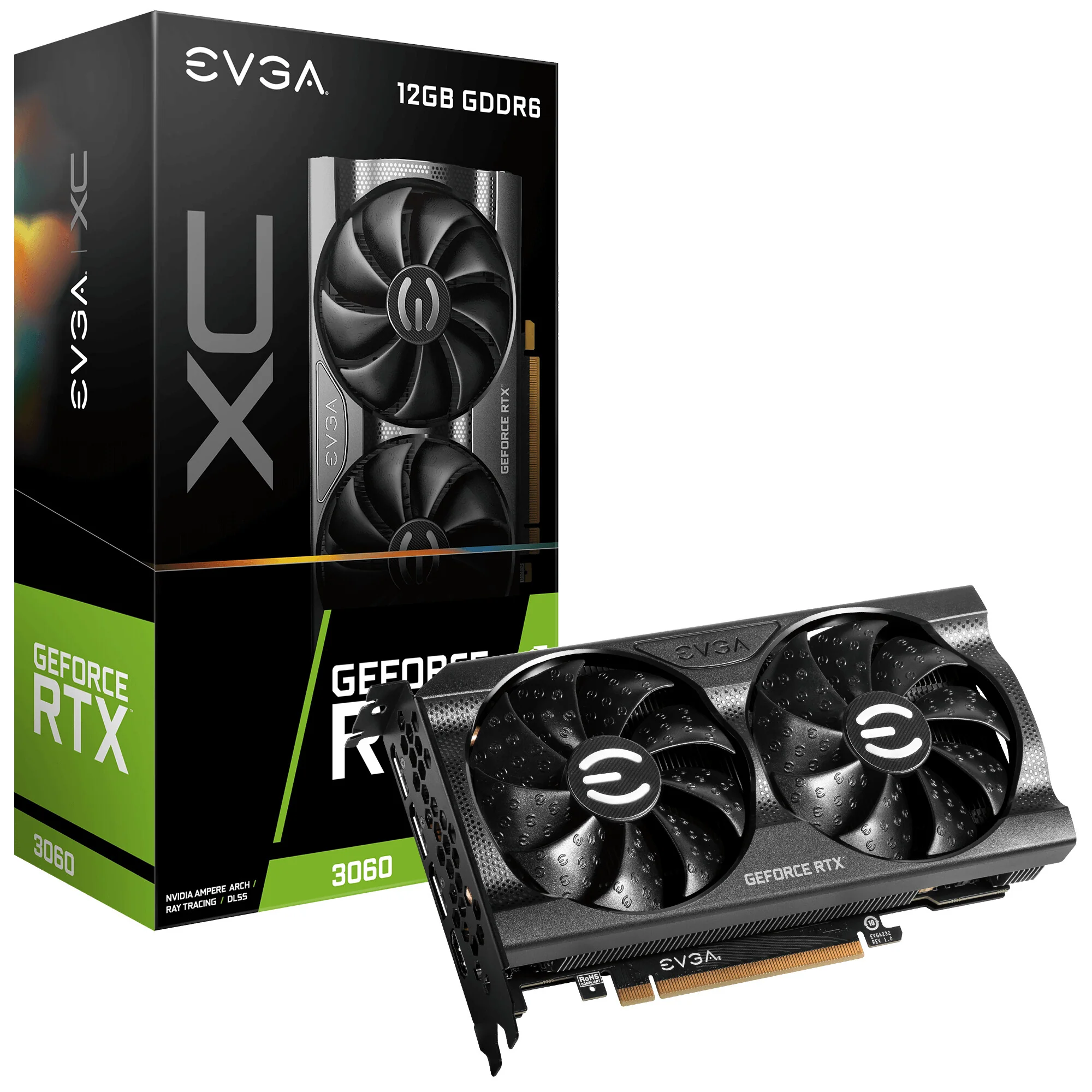

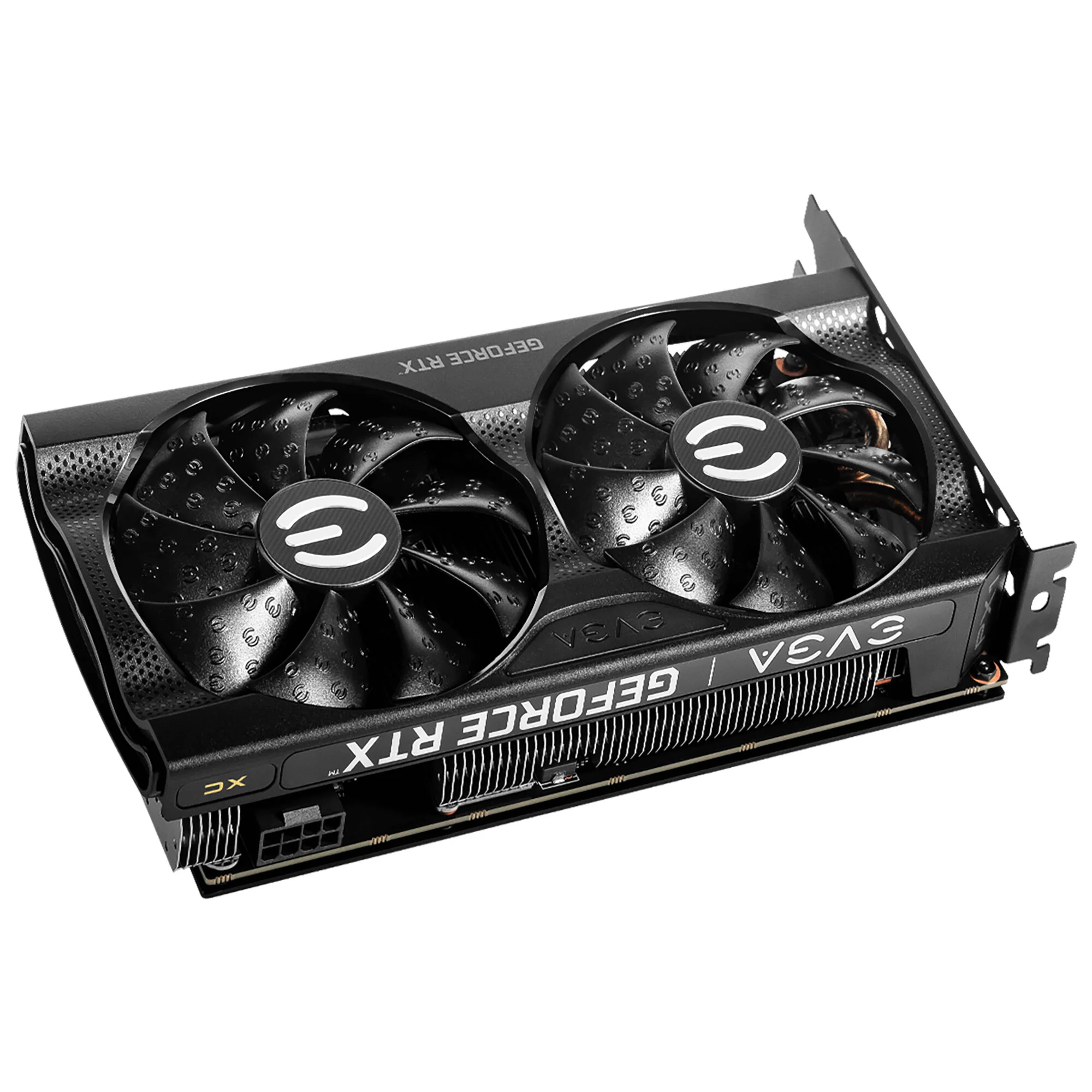

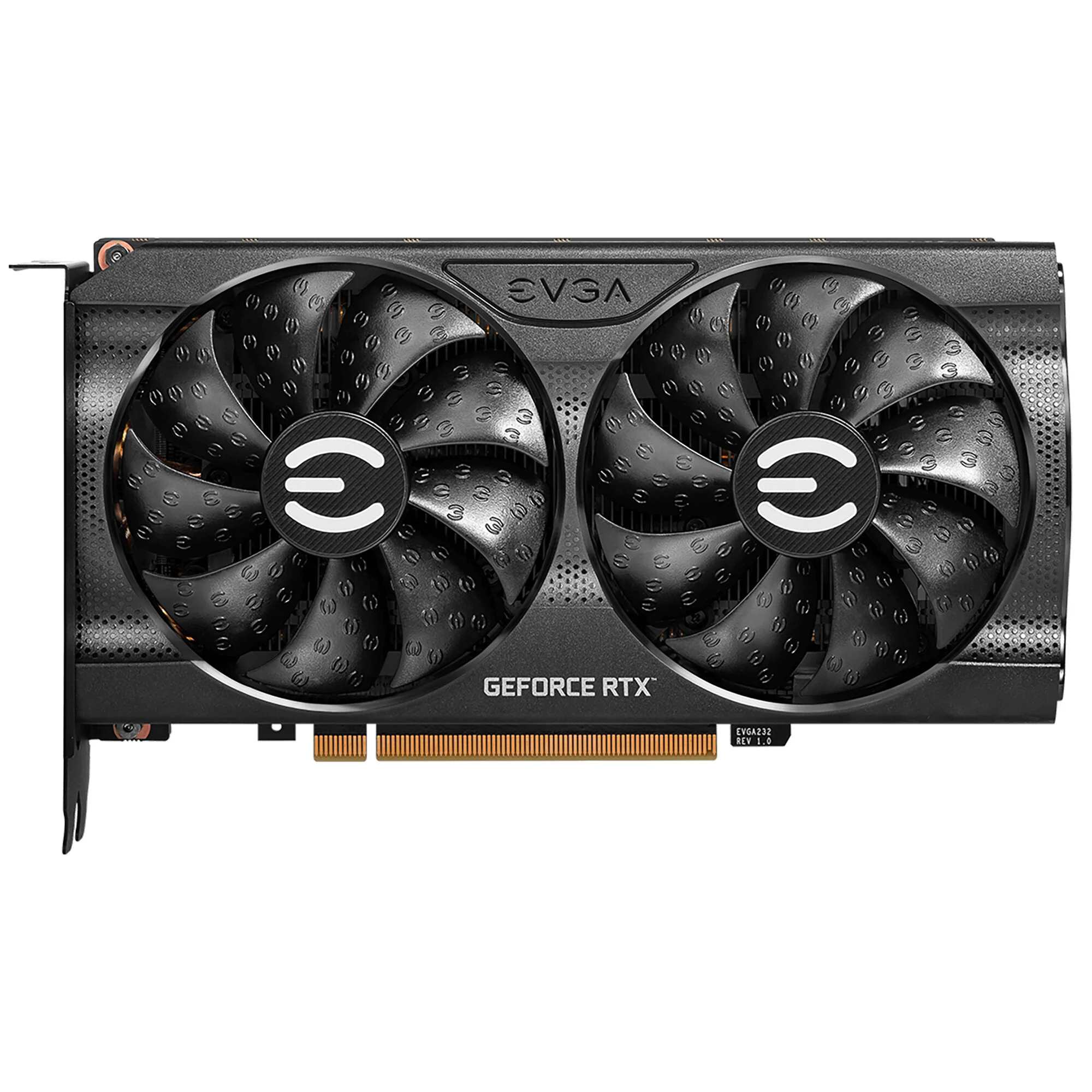

NVIDIA GeForce RTX 3060, 12 GB GDDR6, 192-bit, PCIe 4.0, 3 x DisplayPort 1.4a, HDMI 2.1, HDCP 2.3, DirectX 12, OpenGL 4.6, Dual Slot, 500 W, 1 x 8-pin
The EVGA GeForce RTX 3060 provides players with the ability to vanquish 1080p and 1440p gaming, while providing a quality NVIDIA RTX experience and a myriad of productivity benefits. The card is powered by NVIDIA Ampere architecture, which doubles down on ray tracing and AI performance with enhanced RT cores, Tensor Cores, and new streaming multiprocessors. With 12GB of GDDR6 memory, high-end performance does not have to be sacrificed to find a card for gaming and everyday use. Combined with the next generation of design, cooling, and overclocking utilizing EVGA Precision X1, the EVGA GeForce RTX 3060 Series redefines what it means to be built for gaming and productivity.
| Processor |
|---|
| Processor boost clock speed |
1882 MHz |
| CUDA cores |
3584 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 3060 |
| Graphics processor family |
NVIDIA |
| Memory |
|---|
| Memory bandwidth (max) |
360 GB/s |
| Memory bus |
192 bit |
| Graphics card memory type |
GDDR6 |
| Discrete graphics card memory |
12 GB |
| Ports & interfaces |
|---|

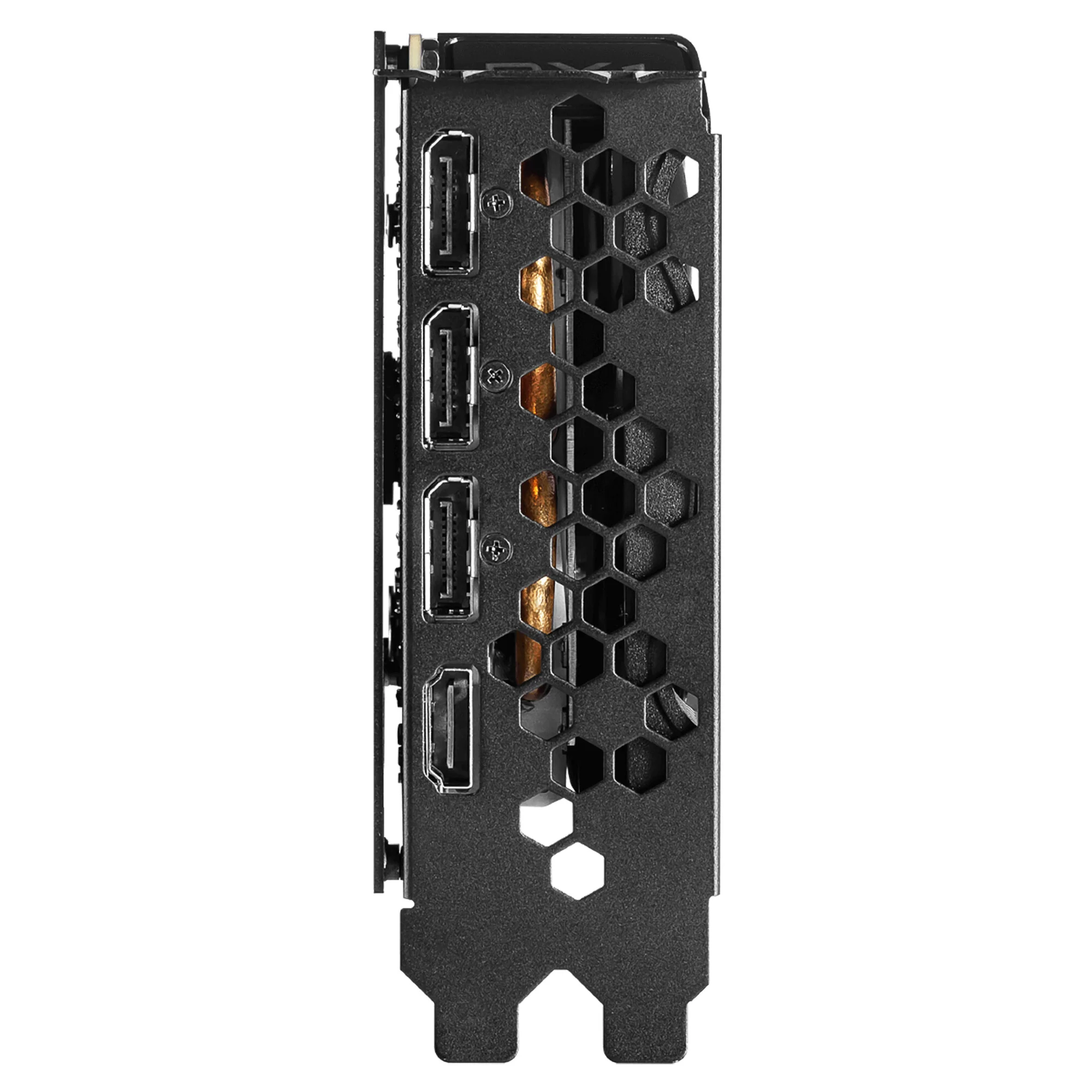

| DisplayPort version |
1.4a |
| HDMI version |
2.1 |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
1 |
| Interface type |
PCI Express 4.0 |
| Performance |
|---|
| NVIDIA G-SYNC |
Yes |
| HDCP |
Yes |
| Virtual Reality (VR) ready |
Yes |
| OpenGL version |
4.6 |
| DirectX version |
12.0 |
| Design |
|---|
| Product colour |
Black |
| Number of slots |
2 |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Number of fans |
2 fan(s) |
| Cooling type |
Active |
| Power |
|---|
| Supplementary power connectors |
1x 8-pin |
| Minimum system power supply |
550 W |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Weight & dimensions |
|---|
| Height |
110 mm |
