DELL Latitude 5540 Laptop 39.6 cm (15.6") Full HD Intel® Core™ i5 i5-1335U 8 GB DDR4-SDRAM 256 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Grey

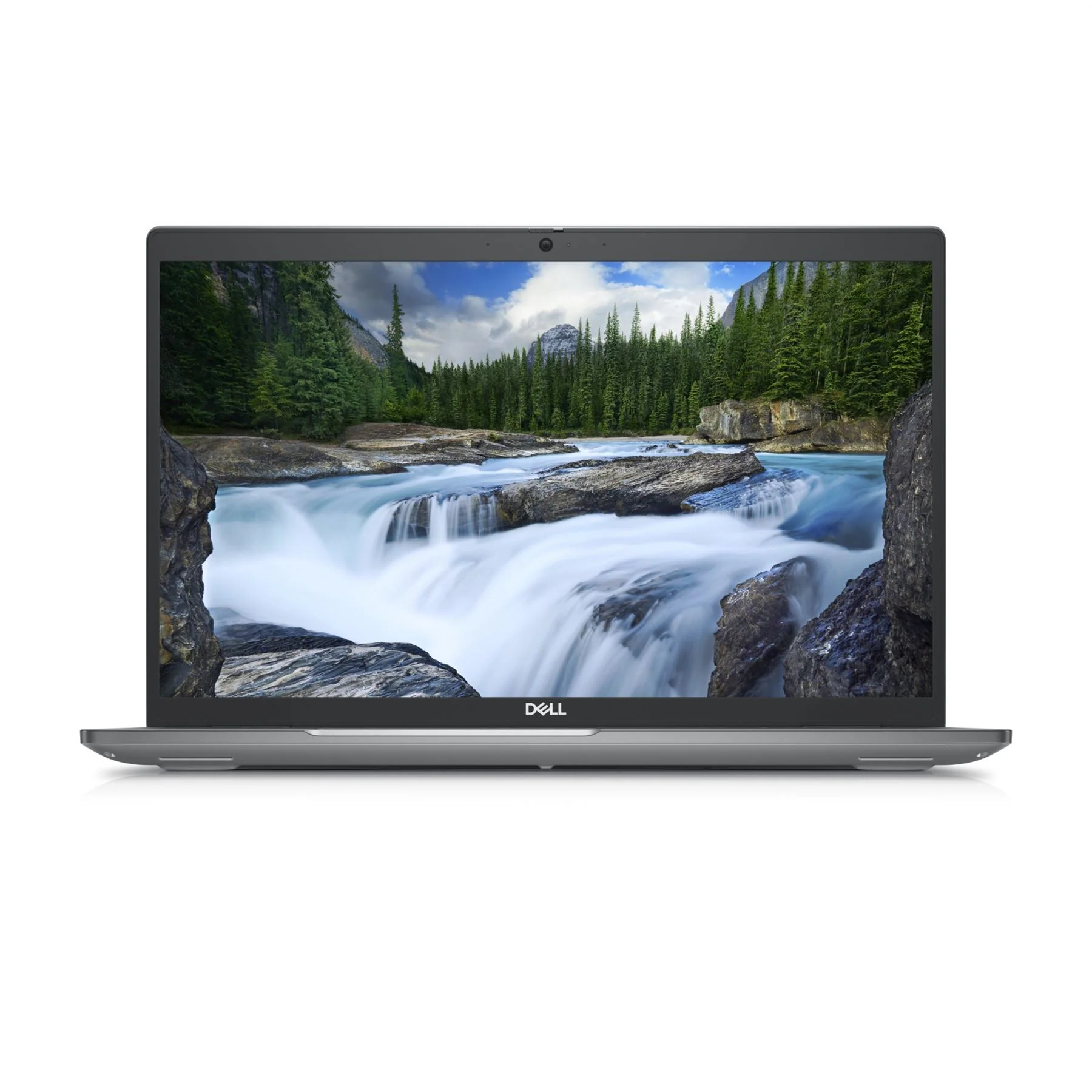

Product image 1

DELL Latitude 5540 Laptop 39.6 cm (15.6") Full HD Intel® Core™ i5 i5-1335U 8 GB DDR4-SDRAM 256 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Grey

Design
Form factor Clamshell
Product colour Grey
Product type Laptop
Display
Contrast ratio (typical) 700:1
Maximum refresh rate 60 Hz
Display response rise/fall 35 ms
RGB colour space NTSC
Colour gamut 45%
Pixel pitch 0.179 x 0.179 mm
Pixel density 141 ppi
Display brightness 250 cd/m²
Anti-glare screen Yes
LED backlight Yes
Native aspect ratio 16:9
Panel type IPS
HD type Full HD
Touchscreen No
Display resolution 1920 x 1080 pixels
Display diagonal 39.6 cm (15.6")
Processor
Processor base power 15 W
Maximum turbo power 55 W
Configurable TDP-down 12 W
Processor cache type Smart Cache
Processor cache 12 MB
Processor cores 10
Processor boost frequency 4.6 GHz
Efficient-core boost frequency 3.4 GHz
Processor model i5-1335U
Processor generation 13th gen Intel® Core™ i5
Processor family Intel® Core™ i5
Processor manufacturer Intel
Memory
Non-ECC Yes
Memory channels Single-channel
Maximum internal memory 64 GB
Memory slots 2x SO-DIMM
Memory layout (slots x size) 1 x 8 GB
Memory clock speed 3200 MHz
Memory form factor SO-DIMM
Internal memory type DDR4-SDRAM
Internal memory 8 GB
Storage
Compatible memory cards MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated Yes
Optical drive type No
SSD form factor M.2
SSD performance class 35
SSD interface PCI Express 4.0
NVMe Yes
SSD capacity 256 GB
Number of SSDs installed 1
Total SSDs capacity 256 GB
Storage media SSD
Total storage capacity 256 GB
Graphics
On-board graphics card model Intel Iris Xe Graphics
On-board GPU manufacturer Intel
Discrete graphics card model Not available
Discrete graphics card No
On-board graphics card Yes
Audio
Number of microphones 2
Built-in microphone Yes
Speaker power 2 W
Speakers manufacturer Waves
Number of built-in speakers 2
Audio system MaxxAudio
Camera
Privacy type Privacy shutter
Privacy camera Yes
Infrared (IR) camera Yes
Video capturing speed 30 fps
Front camera resolution 1920 x 1080 pixels
Front camera HD type Full HD
Front camera resolution (numeric) 2.07 MP
Front camera Yes
Network
WWAN Upgradable
Bluetooth Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet LAN Yes
WLAN controller model Intel Wi-Fi 6E AX211
WLAN controller manufacturer Intel
Antenna type 2x2
Wi-Fi data rate (max) 2400 Mbit/s
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Mobile network connection No
Ports & interfaces
Number of USB ports with PowerShare support 1
PowerShare Yes
USB Power Delivery Yes
USB Type-C DisplayPort Alternate Mode Yes
Charging port type USB Type-C
Combo headphone/mic port Yes
Thunderbolt 4 ports quantity 2
Intel® Thunderbolt 4 Yes
HDMI version 2.0
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Performance
Ambient light sensor Yes
Keyboard
Keyboard backlit Yes
Numeric keypad Yes
Keyboard language German
Pointing device Touchpad
Software
Bundled software Windows System Driver
Trial software No Microsoft Office License Included 30 day Trial Offer Only
Operating system language Multilingual
Operating system architecture 64-bit
Operating system installed Windows 11 Pro
Processor special features
Intel Flex Memory Access Yes
Intel Trusted Execution Technology Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Execute Disable Bit Yes
CPU configuration (max) 1
Embedded options available No
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel Virtualization Technology (VT-x) Yes
Battery
Battery weight 220 g
Fast charging Yes
Battery voltage 11.4 V
Battery capacity 54 Wh
Number of battery cells 3
Battery technology Lithium-Ion (Li-Ion)
Power
USB charging current 3.25 A
USB charging voltage 20,5,9,15 V
AC adapter input voltage 100 - 200 V
AC adapter frequency 50/60 Hz
AC adapter power 65 W
Security
Trusted Platform Module (TPM) Yes
Trusted Platform Module (TPM) version 2.0
Fingerprint reader Yes
Smart card reader Yes
Cable lock slot type Wedge
Cable lock slot Yes
Operational conditions
Non-operating vibration 1.3 G
Operating vibration 0.66 G
Non-operating shock 160 G
Operating shock 110 G
Non-operating altitude -15.2 - 10668 m
Operating altitude -15.2 - 3048 m
Storage relative humidity (H-H) 0 - 95%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 65 °C
Operating temperature (T-T) 0 - 35 °C
Sustainability
Sustainability certificates TCO
Weight & dimensions
Height (rear) 2.28 cm
Height (front) 2.08 cm
Depth 233.3 mm
Width 357.8 mm
Weight 1.61 kg
General
Product Family Latitude
Product Series 5000
Carbon footprint
Total carbon footprint 321 kg of CO2e
Total carbon emissions (Standard deviation) 68 kg of CO2e
Carbon emissions (Manufacturing) 272 kg of CO2e
Carbon emissions (Logistics) 12 kg of CO2e
Carbon emissions (Use) 36 kg of CO2e
Carbon emissions (End-of-Life) 2 kg of CO2e
Total carbon emissions (w/o Use phase) 286 kg of CO2e
PAIA version 1.3.2
$1,292.89
