Cooler Master MasterBox MB320L ARGB - MicroATX Mini Tower Case in Black
A New Shade of Lighting

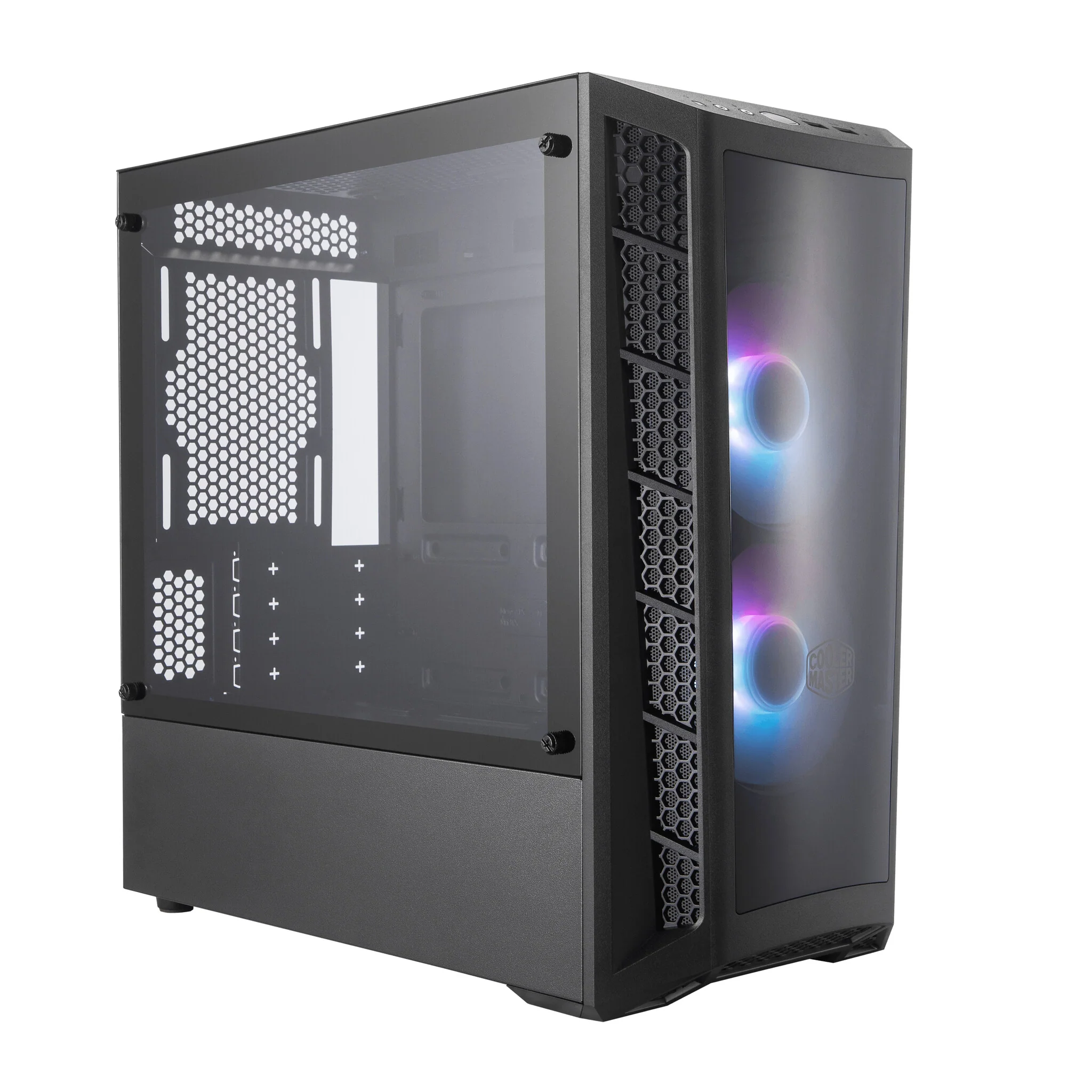

The MasterBox MB320L ARGB is a Micro-ATX PC case with two pre-installed ARGB fans and honeycomb mesh ventilation on either side of the DarkMirror front panel. The DarkMirror front panel is smoked a shade darker to sharpen the contrast of the ARGB fans pre-installed behind it, highlighting its best features.
A high potential for both air-cooled and liquid-cooled builds comprise of front, top, and rear ventilation with the possibility to mount additional fans and radiators. Upholding the award-winning principles of the MB Series, versatility is paired with presentation to ensure that any gaming system built inside the MasterBox MB320L ARGB looks as good as it performs.
DarkMirror Front Panel
The DarkMirror front panel shades light to add contrast to illuminated components.
Mesh Intakes
Large, mesh intakes span each side of the front panel to provide additional airflow to system.
Dual ARGB Fans
Two pre-installed 120mm ARGB fans can be managed by the motherboard, connected by the included splitter, to create a comprehensive ARGB lighting system.
Tempered Glass Side Panel
Hardware, custom-loop cooling, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.

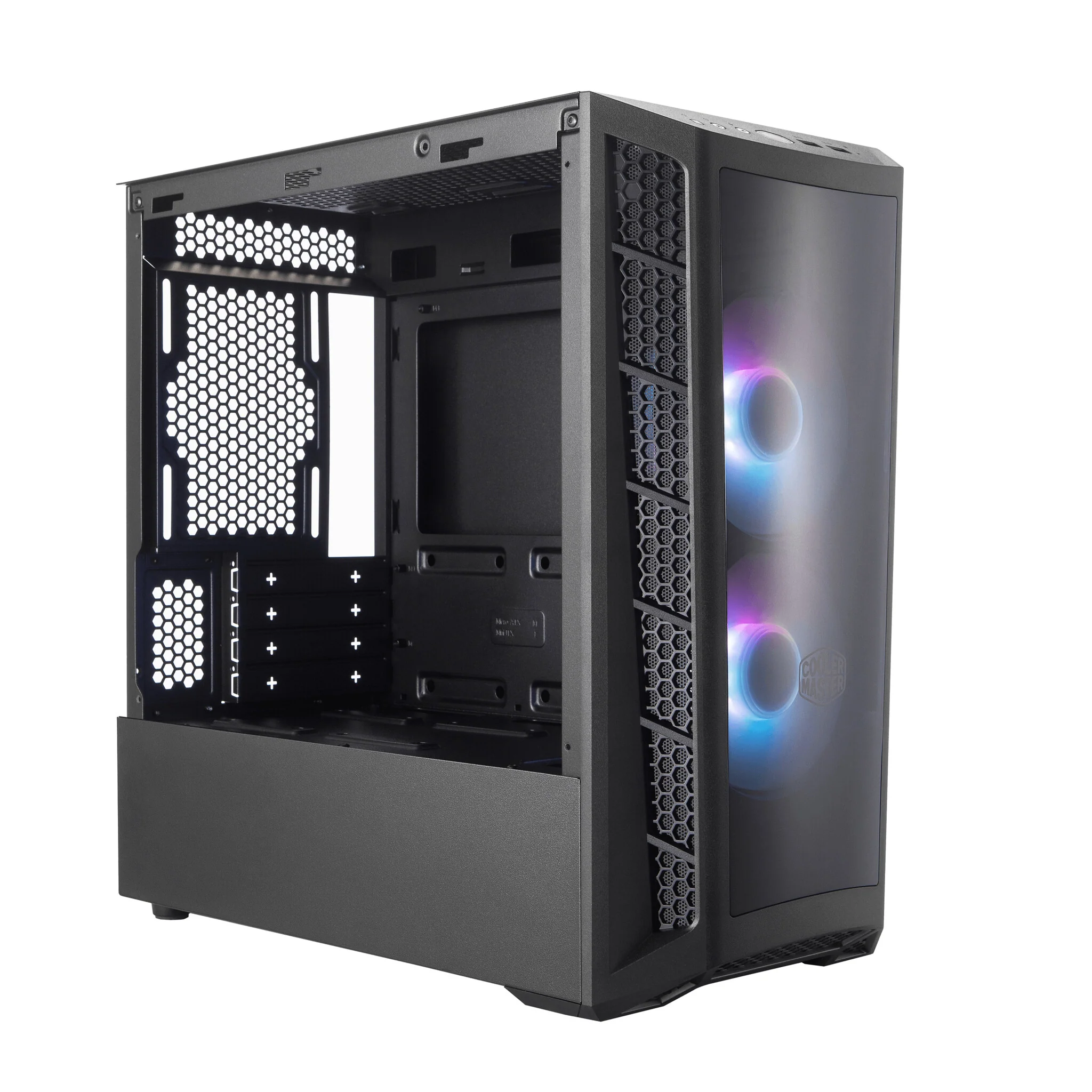

Adaptable Drive Cage
The drive cage is able to shift toward the front to accommodate for PSU space, backwards to provide additional radiator space, or even completely removed.
Versatile Cooling Options
Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
Room For Upgrades
Support for up to a 344mm graphics card, a 166mm CPU cooler, and up to a 325mm PSU in length provides room for upgrades to stay ahead of the game.
ARGB Controller
The small ARGB Controller is a mini-sized controller that allows your Addressable RGB such as fans and LED strips to be powered and controlled even in PC systems without an A-RGB capable motherboard.
The controller comes with 14 lighting presets to make full use of the Addressable LEDs in the system and also allows to be completely switched off by long pressing its button.
It is also possible to attach any external 2pin button to it to be able to switch presets without having to open the system. For ease of use, Cooler Master allows the RESET button to be optionally connected to the controller and used as an external ARGB preset switch button.
| Design | |
|---|---|
| Maximum PSU length | 32.5 cm |
| Maximum graphics card length | 34.4 cm |
| Maximum CPU cooler height | 16.6 cm |
| Anti-dust filter | Yes |
| Illumination colour | Blue, Green, Red |
| Illumination | Yes |
| Side window | Yes |
| Number of expansion slots | 4 |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Product colour | Black |
| Material | Mesh, Plastic, Tempered glass |
| Type | PC |
| Form factor | Mini Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX |
| Power supply location | Bottom |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120,240 mm |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 120,140,240,280 mm |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 2x 120 mm |
| General | |
|---|---|
| Product Family | MasterBox |
| Storage | |
|---|---|
| HDD/SSD combo cage | Yes |
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 5.47 kg |
| Height | 410 mm |
| Depth | 435.5 mm |
| Width | 217.5 mm |
| Packaging data | |
|---|---|
| Package weight | 6.43 kg |
| Package height | 490 mm |
| Package depth | 510 mm |
| Package width | 283 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
