43.34L, Mini ITX/Micro ATX/ATX, 2 x 2.5/3.5", 2 x 2.5", 1x USB 3.2 Gen 1 Type-A, 1x USB 2.0, 1x 3.5mm, 1x CF120P ARGB + 2x CF120S ARGB, 439 x 204 x 463mm

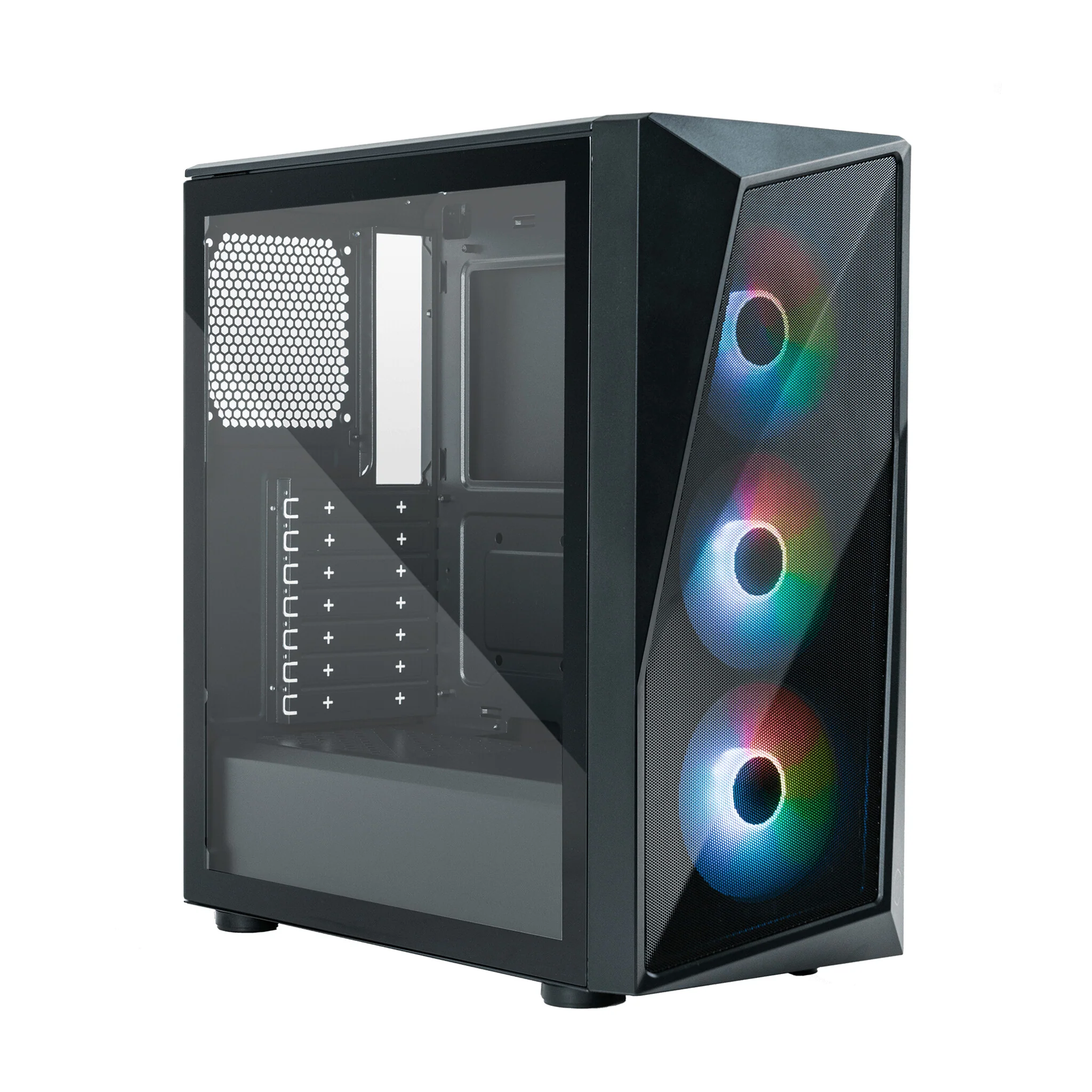

CMP 520's asymmetrical front panel design frames the pre-installed three 120mm ARGB fans as unique centerpieces on the build.
Three 120mm ARGB Fans Included
Three pre-installed 120mm ARGB fans ensure stunning aesthetics, eye-catching design, and thermal excellence.

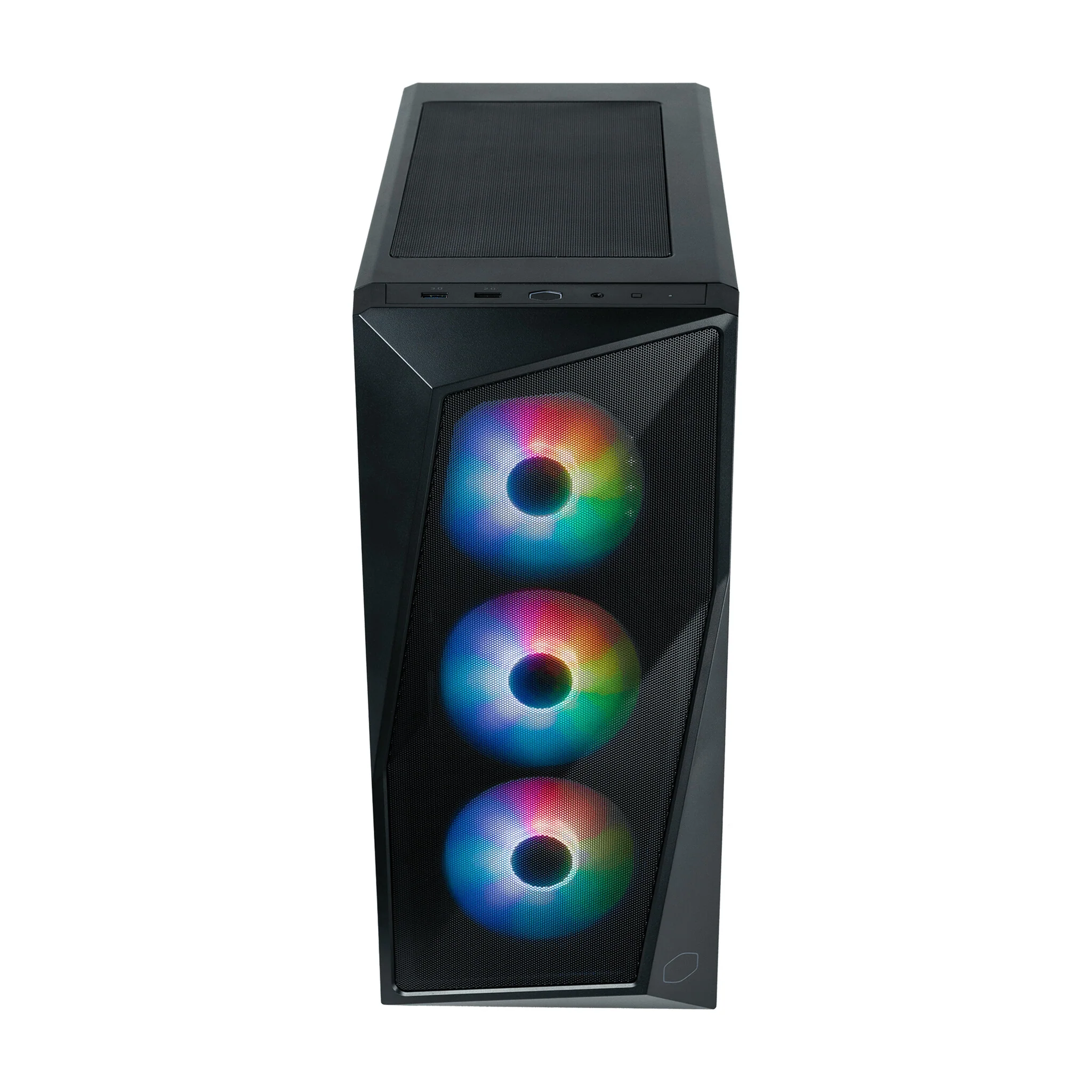

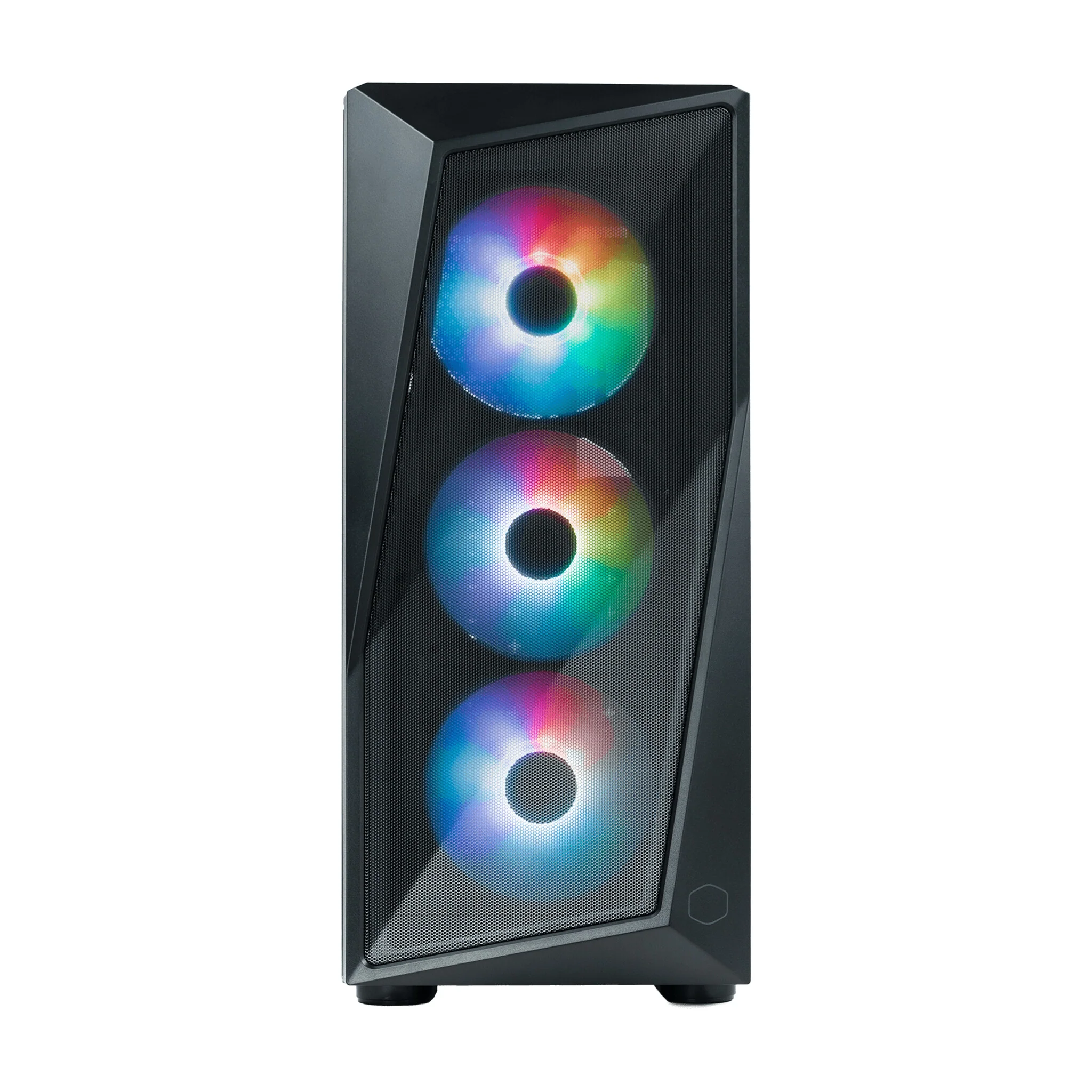

Mesh Geode Front Panel
Inspired by asymmetrical crystal formations, the mesh front panel offers generous intake and efficient dust filtration.
Versatile Cooling Options
Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
Full Black Coating & PSU Cover
Let your system stand out with an all-black background and a PSU cover to hide cables.
Breathable Power Supply Shroud
The ventilated PSU cover supports both active and passive cooled PSUs installed in multiple orientations.
Room For Upgrades
Support for up to a 350mm graphics card, a 161mm CPU cooler, and multiple fans/radiators locations provides room for upgrades.
| Design |
|---|
| Maximum PSU length |
16 cm |
| Maximum graphics card length |
35 cm |
| Maximum CPU cooler height |
16.1 cm |
| Cable management |
Yes |
| Anti-dust filter |
Yes |
| Illumination location |
Case fans |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Side window |
Yes |
| Number of expansion slots |
7 |
| Number of 2.5" bays |
2 |
| Number of 3.5" bays |
2 |
| Supported motherboard form factors |
ATX, micro ATX, Mini-ITX |
| Product colour |
Black |
| Material |
Plastic, Steel, Tempered glass |
| Type |
PC |
| Form factor |
Midi Tower |
| Power supply |
|---|
| Supported power supply form factors |
ATX |
| Power supply location |
Bottom |
| Power supply included |
No |
| Ports & interfaces |
|---|
| Audio output |
Yes |
| Audio input |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 2.0 ports quantity |
1 |
| Cooling |
|---|
| Top radiator sizes supported |
120,140 mm |
| Rear radiator sizes supported |
120 mm |
| Front radiator sizes supported |
120,140 mm |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
2 |
| Rear fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Front fans diameters supported |
120,140 mm |
| Number of front fans supported (max) |
3 |
| Front fans installed |
3x 120 mm |
| Storage |
|---|
| HDD/SSD combo cage |
Yes |
| Supported HDD sizes |
2.5,3.5" |
| General |
|---|
| Product Family |
CMP |
| Weight & dimensions |
|---|
| Weight |
6 kg |
| Height |
463 mm |
| Depth |
439 mm |
| Width |
204 mm |
| Packaging data |
|---|
| Package weight |
7 kg |
| Package height |
505 mm |
| Package depth |
520 mm |
| Package width |
267 mm |
| LED controller |
Yes |
| Other features |
|---|
| Volume |
43.34 L |
