ASUS ZenScreen MB166B - 39.6 cm (15.6") - 1920 x 1080 pixels Full HD Monitor
Sleek and portable design
ASUS ZenScreen™ MB166B is ideal for life on the road. This sleek portable display weighs just 0.78kg and has an 11.8 mm slim profile, so it fits easily in any travel bag and is ready for productivity, anytime and anywhere.
One cable is all you need
ZenScreen™ MB166B portable USB-powered monitor needs just one USB cable for both its video signal* and power, to be fully compatible with almost any laptop.
*Please install the USB Monitor Driver first (download) prior to using it. Then connect the upper micro B USB 3.0 port for video connection with PC/ laptop by inbox cable.
Work in comfort
A ¼”-threaded hole at the rear of the monitor lets you to attach ZenScreen MB166B to a conventional tripod* or table-mount easily.
*Tripod is not included with ZenScreen MB166B.

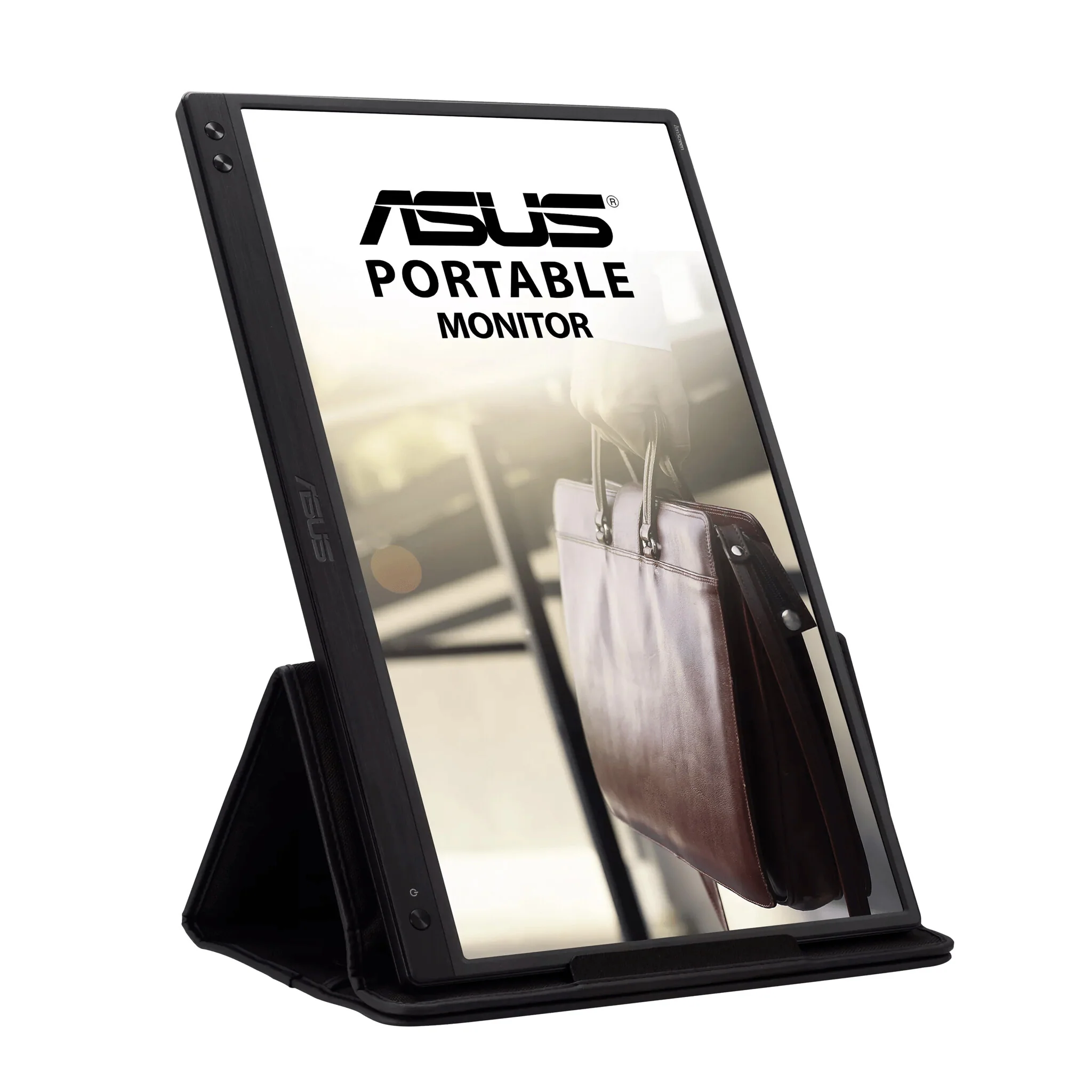

Work efficiently in portrait and landscape modes
With ASUS DisplayWidget software*, ZenScreen MB166B can automatically sense its orientation and switch the display between landscape and portrait modes while connected to your laptop. Landscape mode is ideal for presentations and spreadsheets, while Portrait mode gives you a perfect view of items such as documents, books or websites.
*Driver required. Auto Rotate function only works with Windows OS
Extend your workspace
The FHD (1920 x 1080) IPS panel delivers stunning visuals and 178° viewing angles, ensuring you get superb color and contrast even when viewing the screen from off-center positions.
| Display | |
|---|---|
| Display diagonal (metric) | 39.62 cm |
| Digital vertical frequency | 60 - 60 Hz |
| Viewable size, vertical | 19.4 cm |
| Viewable size, horizontal | 34.4 cm |
| Pixel pitch | 0.179 x 0.179 mm |
| Display number of colours | 262000 colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Response time | 25 ms |
| Display brightness (typical) | 250 cd/m² |
| Backlight type | LED |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 39.6 cm (15.6") |
| Performance | |
|---|---|
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Product colour | Black |
| Market positioning | Home |
| Ports & interfaces | |
|---|---|
| Headphone out | No |
| HDMI | No |
| Number of upstream ports | 1 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Height adjustment | No |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| AC adapter output voltage | 5 V |
| Input current | 3 A |
| Power consumption (PowerSave) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 7 W |
| Energy consumption (SDR) per 1000 hours | 6 kWh |
| Energy efficiency class (SDR) | B |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | USB |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 780 g |
| Height (without stand) | 225.6 mm |
| Depth (without stand) | 11.8 mm |
| Width (without stand) | 360.1 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.65 kg |
| Package height | 290 mm |
| Package depth | 76 mm |
| Package width | 434 mm |
| Sustainability | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 1252488 |
| General | |
|---|---|
| Product Family | ZenScreen |
