15.6" IPS 1920x1080, Non-Glare, 300cd/㎡, 3ms, 144Hz, G-SYNC, 1x Micro HDMI, 3.5mm, 2x USB-C, 2x 1W, 10W, Black

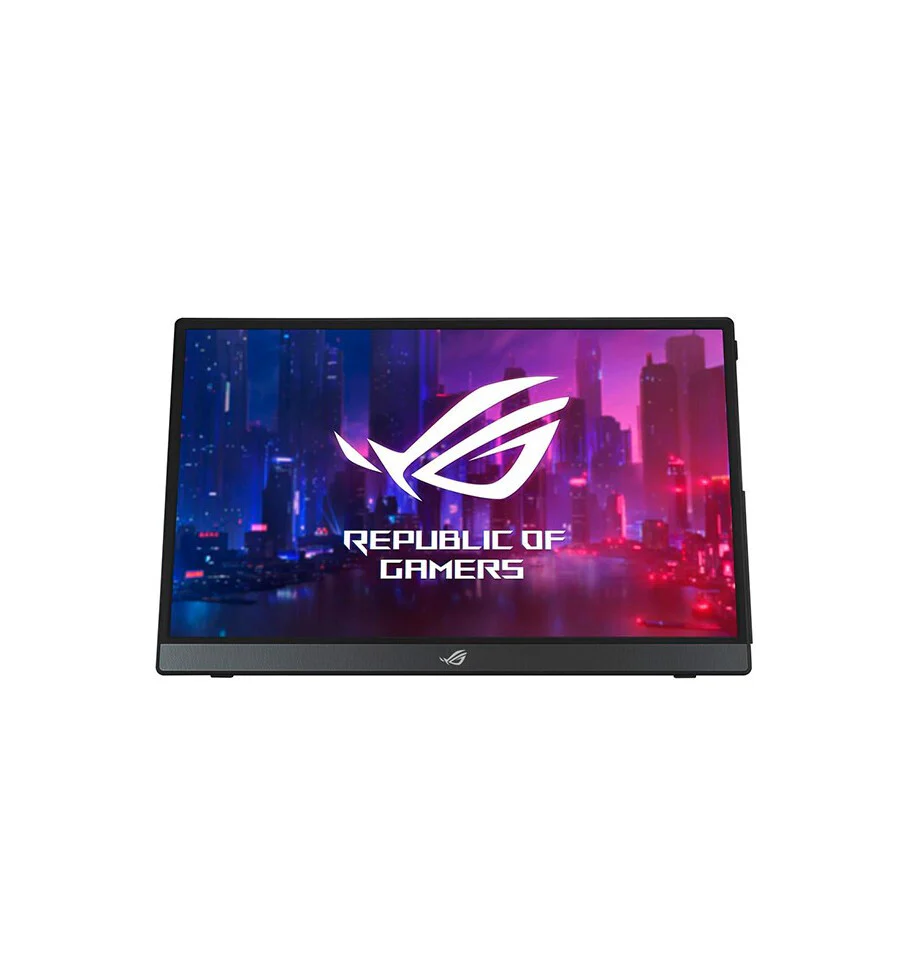

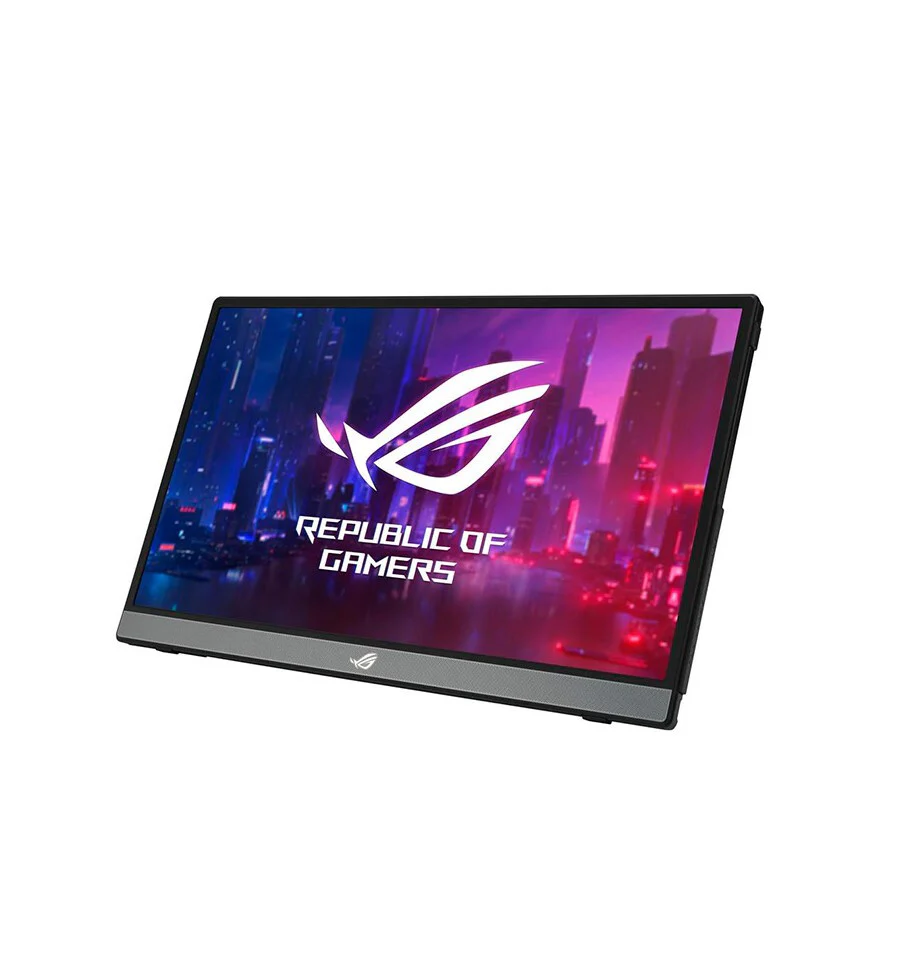

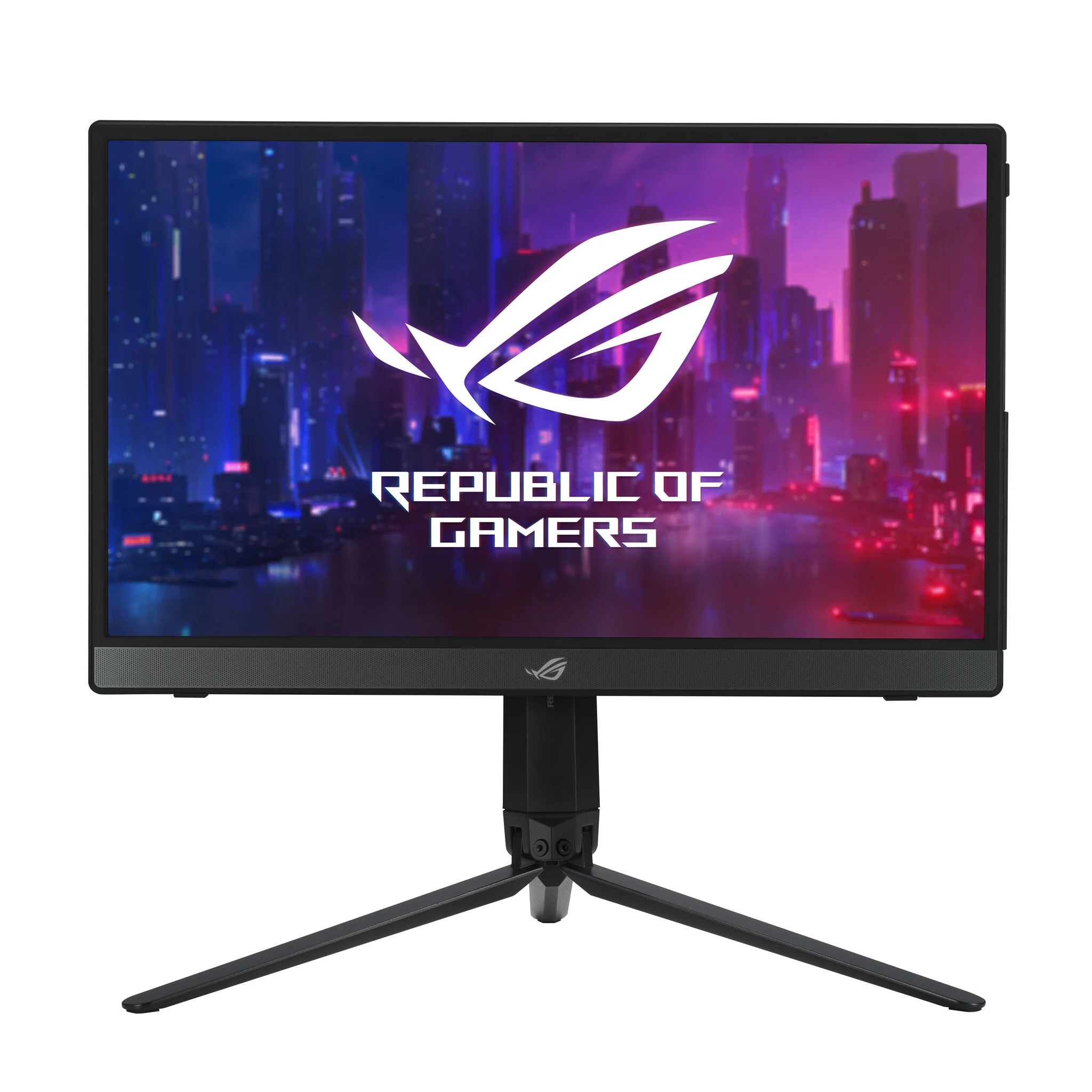

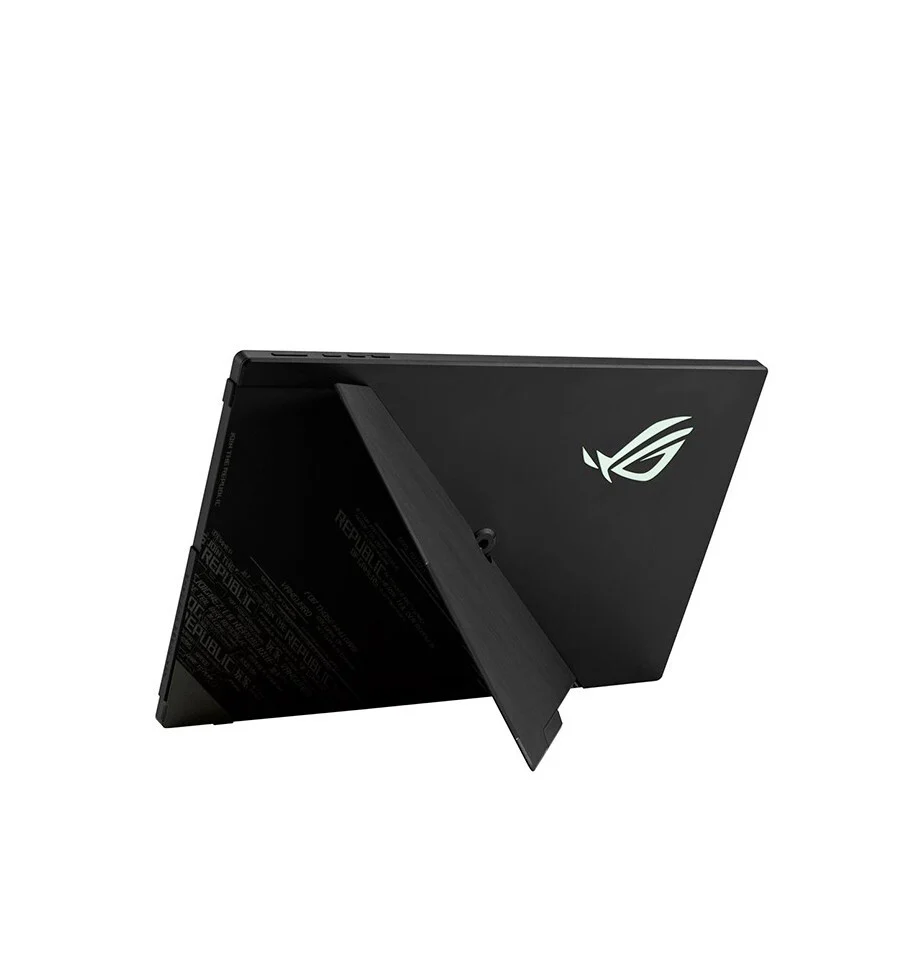

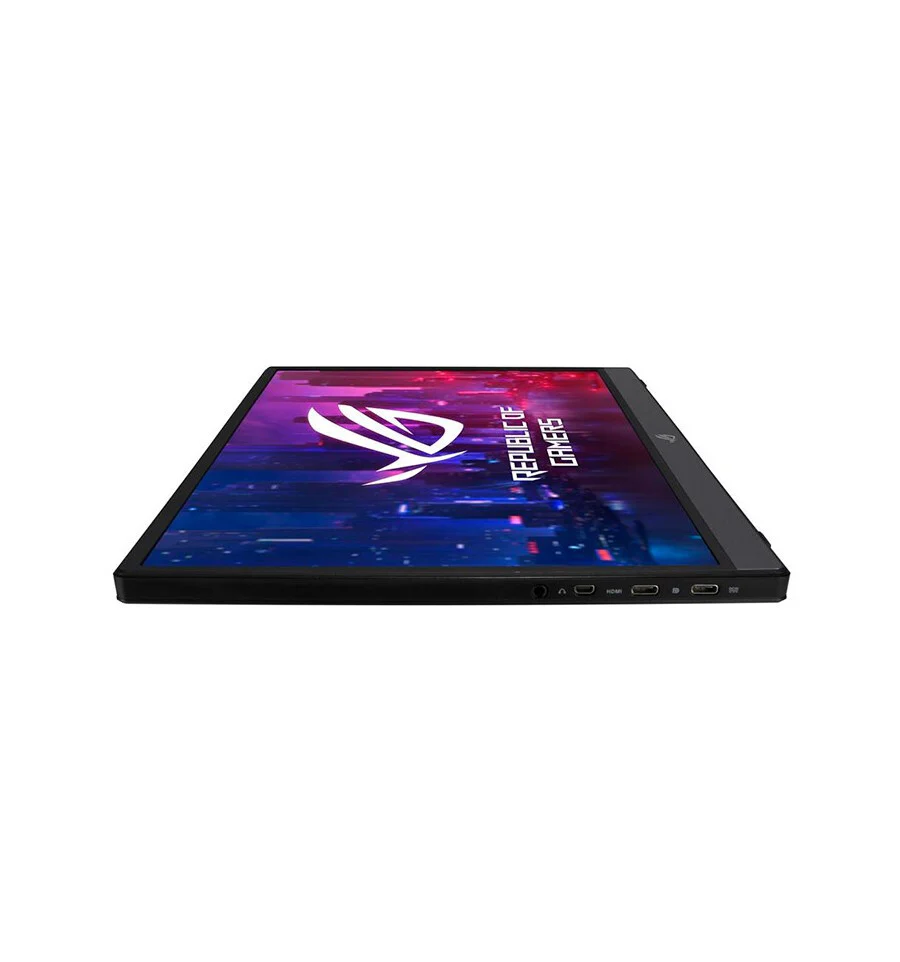

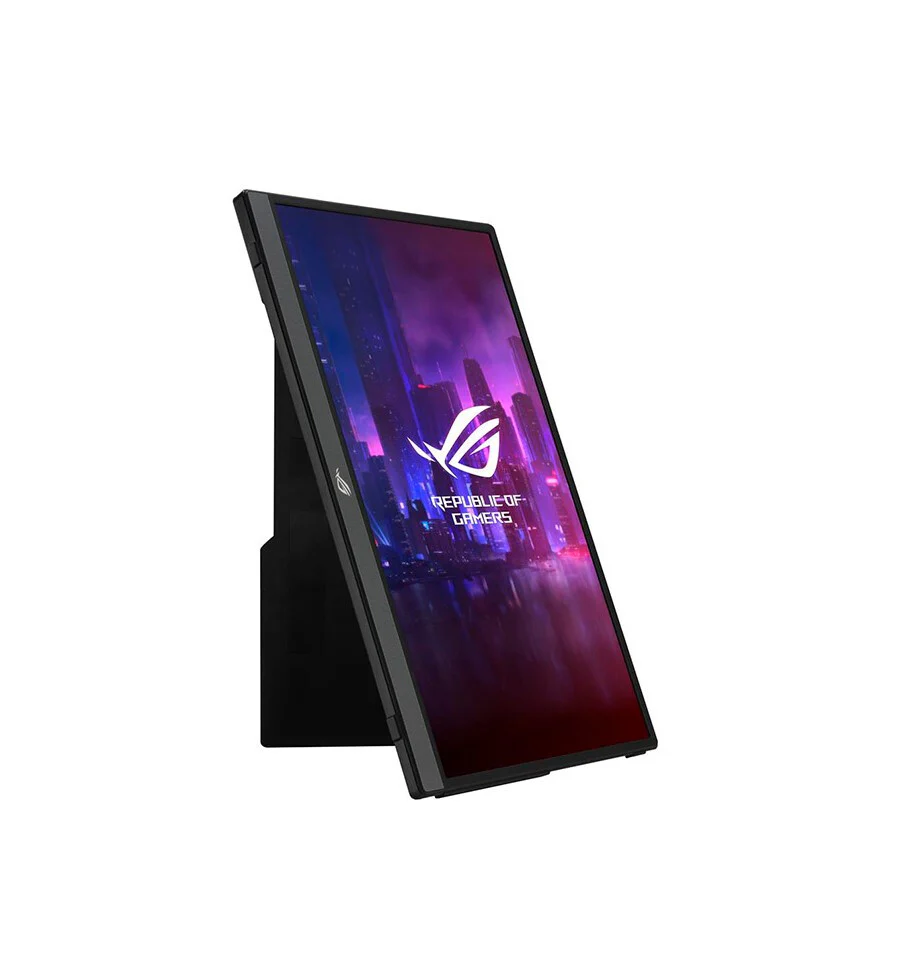

ROG Strix XG16AHP-W Portable 144Hz Gaming Monitor — 15.6-inch FHD (1920 x 1080), 144 Hz, IPS panel, NVIDIA G-SYNC compatibility-ready, non-glare, built-in 7800 mAh battery, fold-out kickstand, USB Type-C, micro HDMI, embedded ESS amplifier, ROG Tripod and ROG sleeve
| Display |
| sRGB coverage (typical) |
100% |
| RGB colour space |
sRGB |
| Display diagonal (metric) |
40 cm |
| Pixel pitch |
0.179 x 0.179 mm |
| Display number of colours |
16.78 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
140 Hz |
| Contrast ratio (typical) |
800:1 |
| Aspect ratio |
4:3, 16:9 |
| Supported video modes |
720p, 768p, 1080p |
| Supported graphics resolutions |
1280 x 720 (HD 720), 1360 x 768 (WXGA), 1920 x 1080 (HD 1080) |
| Screen shape |
Flat |
| Anti-glare screen |
Yes |
| Display surface |
Matt |
| Response time |
3 ms |
| Display brightness (typical) |
300 cd/m² |
| Backlight type |
LED |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
No |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
39.6 cm (15.6") |
| Performance |
| Game mode |
Yes |
| Flicker-free technology |
Yes |
| NVIDIA G-SYNC type |
G-SYNC Compatible |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
Yes |
| Multimedia |
| RMS rated power |
1 W |
| Number of speakers |
2 |
| Built-in camera |
No |
| Built-in speaker(s) |
Yes |
| Design |
| Feet colour |
Black |
| Detachable stand |
Yes |
| Front bezel colour |
Black |
| Product colour |
Black |
| Market positioning |
Gaming |
| Ports & interfaces |
| DC-in jack |
Yes |
| Charging port type |
USB Type-C |
| Headphone connectivity |
3.5 mm |
| Headphone outputs |
1 |
| Headphone out |
Yes |
| Audio input |
No |
| Micro HDMI ports quantity |
1 |
| HDMI |
Yes |
| DVI port |
No |
| Number of USB Type-C upstream ports quantity |
1 |
| Number of upstream ports |
1 |
| USB upstream port type |
USB Type-C |
| Ergonomics |
| Tilt adjustment |
Yes |
| Plug and Play |
Yes |
| Swivel angle range |
-180 - 180° |
| Swivelling |
Yes |
| Height adjustment |
11.5 cm |
| Height adjustment |
Yes |
| Power |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (typical) |
10 W |
| Energy consumption (HDR) per 1000 hours |
13 kWh |
| Energy efficiency class (HDR) |
F |
| Weight & dimensions |
| Weight (without stand) |
900 g |
| Height (without stand) |
225.5 mm |
| Depth (without stand) |
11.8 mm |
| Width (without stand) |
360.5 mm |
| Weight (with stand) |
1.6 kg |
| Height (with stand) |
463.7 mm |
| Depth (with stand) |
282.4 mm |
| Width (with stand) |
360.5 mm |
| Packaging data |
| Package type |
Box |
| Sustainability |
| European Product Registry for Energy Labelling (EPREL) code |
419767 |
| Logistics data |
| Harmonized System (HS) code |
85285210 |
