12GB GDDR6, PCI Express 4.0, 192-bit, 15 Gbps, 7680 x 4320, HDMI 2.1, DisplayPort 1.4a, 1 x 8-pin
TAKE FLIGHT

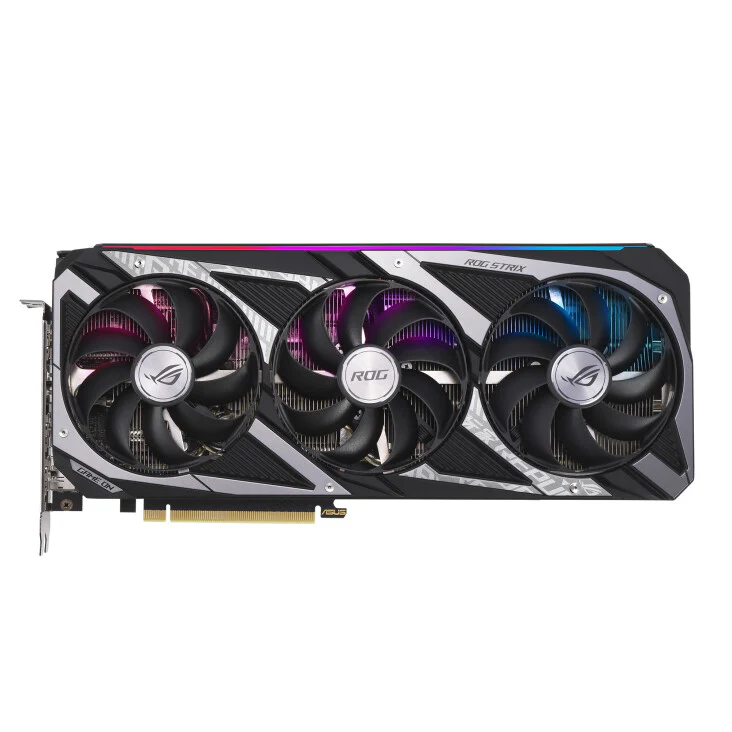

From top to bottom, the ROG Strix GeForce RTX 3060 has been designed to push performance boundaries. A fresh design and more metal surrounds a grouping of Axial-tech fans that leverage a new rotation scheme. Below the blades, a larger, more impressive heatsink is ready for the most demanding thermal loads. The PCB has some new tricks up its sleeves, and even the backplate has received some performance-boosting changes. For gamers who want to get the most out of the NVIDIA Ampere architecture, the latest addition to the ROG Strix stable delivers in every way.
| Processor |
|---|
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| Processor boost clock speed (Gaming mode) |
1777 MHz |
| Processor boost clock speed (OC mode) |
1807 MHz |
| CUDA cores |
3584 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 3060 |
| Graphics processor family |
NVIDIA |
| Memory |
|---|
| Memory clock speed |
15000 MHz |
| Memory bus |
192 bit |
| Graphics card memory type |
GDDR6 |
| Discrete graphics card memory |
12 GB |
| Ports & interfaces |
|---|
| DisplayPort version |
1.4a |
| HDMI version |
2.1 |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
2 |
| Interface type |
PCI Express 4.0 |
| Performance |
|---|
| HDCP |
Yes |
| HDCP version |
2.3 |
| OpenGL version |
4.6 |
| Design |
|---|
| Number of slots |
2.7 |
| Number of fans |
3 fan(s) |
| Cooling type |
Active |
| Power |
|---|
| Supplementary power connectors |
1x 8-pin |
| Minimum system power supply |
650 W |
| General |
|---|
| Product Family |
ROG |
| Product Series |
Strix |
| Weight & dimensions |
|---|
| Depth |
53.5 mm |
| Height |
133.6 mm |
| Length |
300 mm |
| Packaging data |
|---|
| Manual |
Yes |
