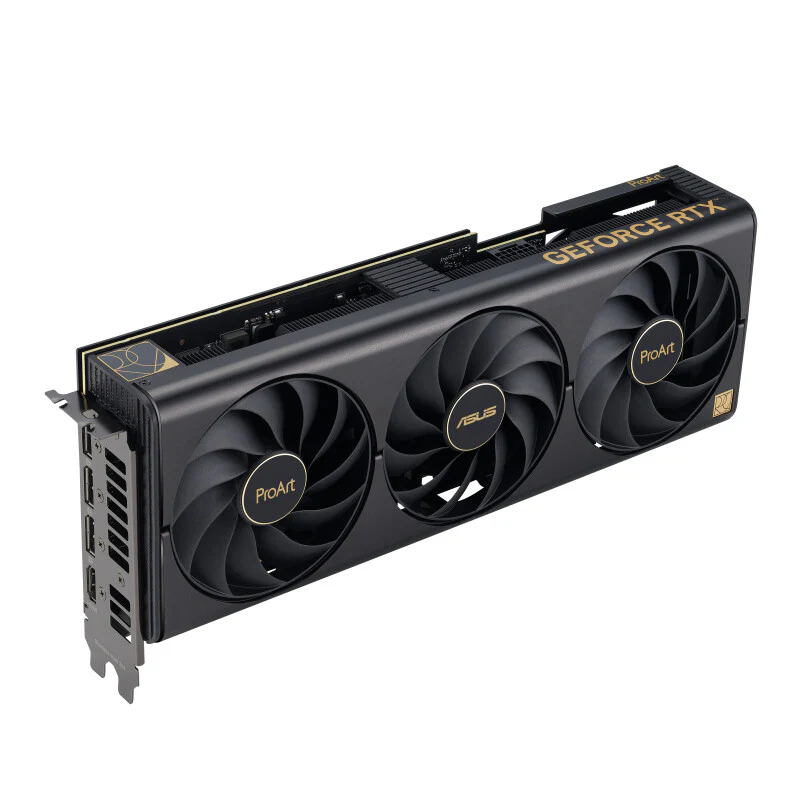

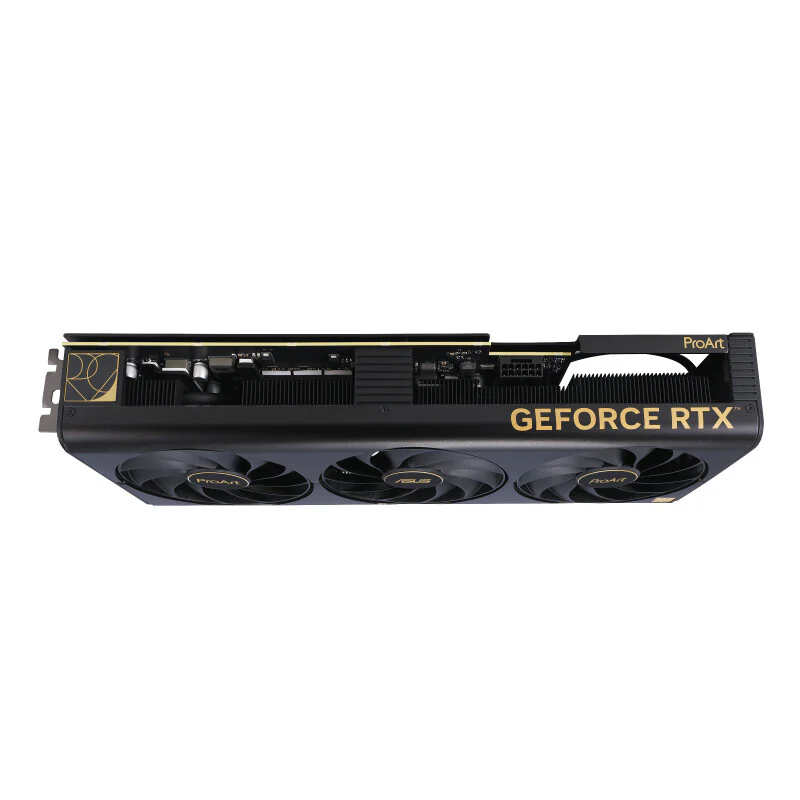

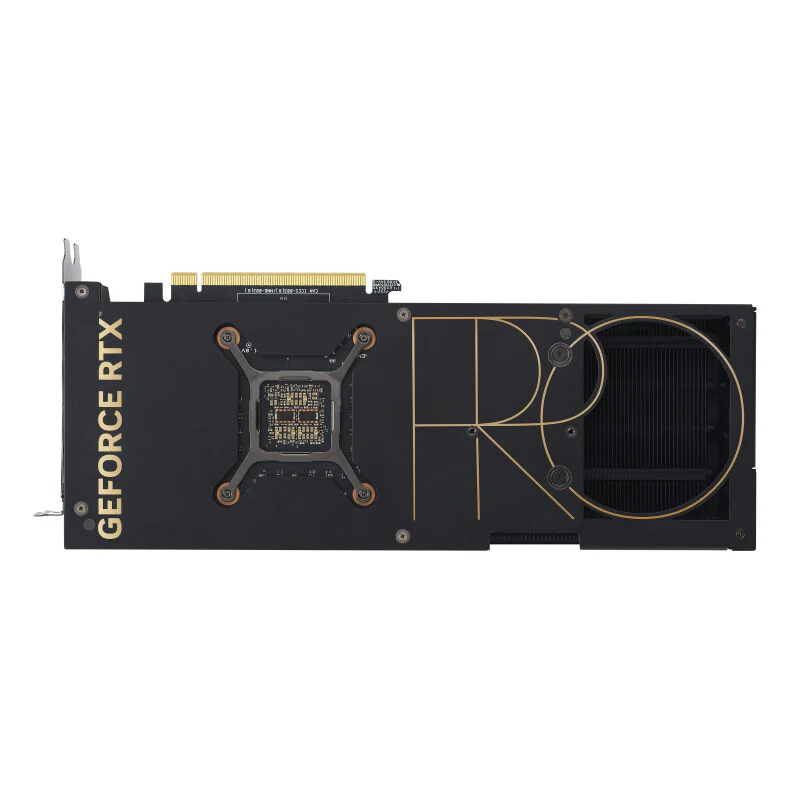

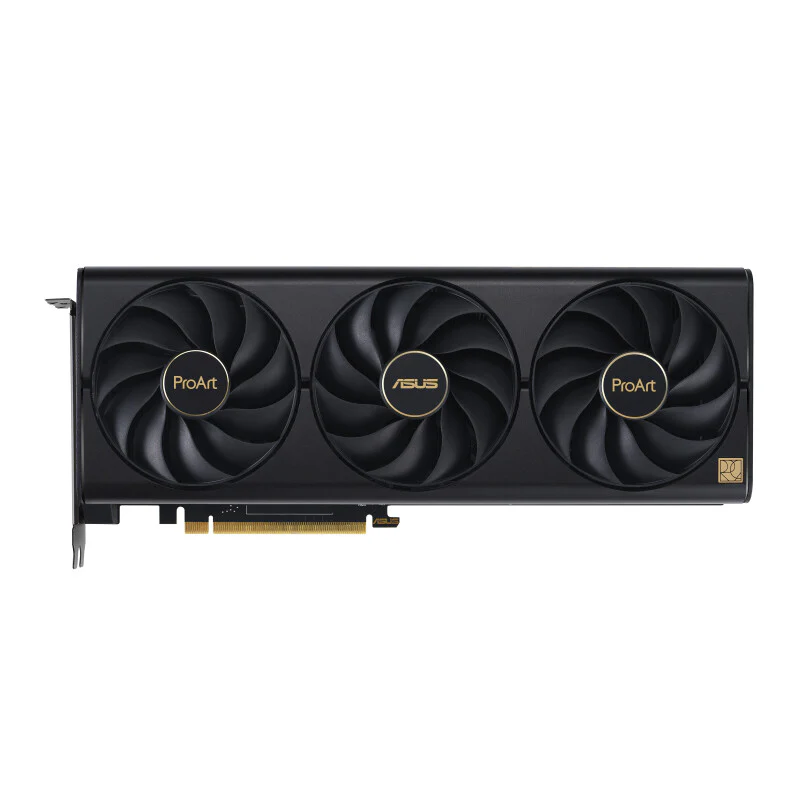

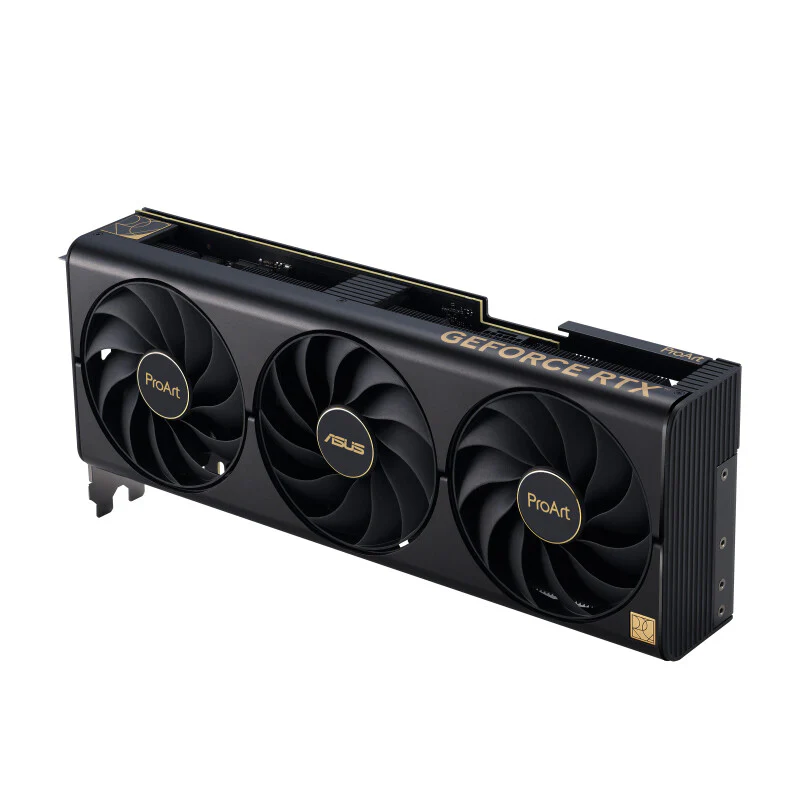

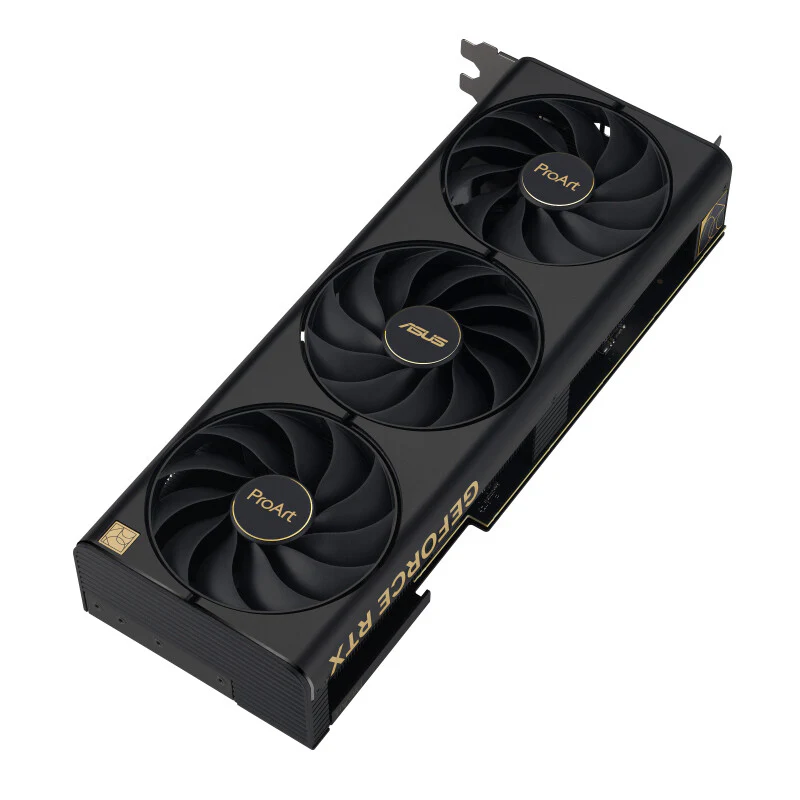

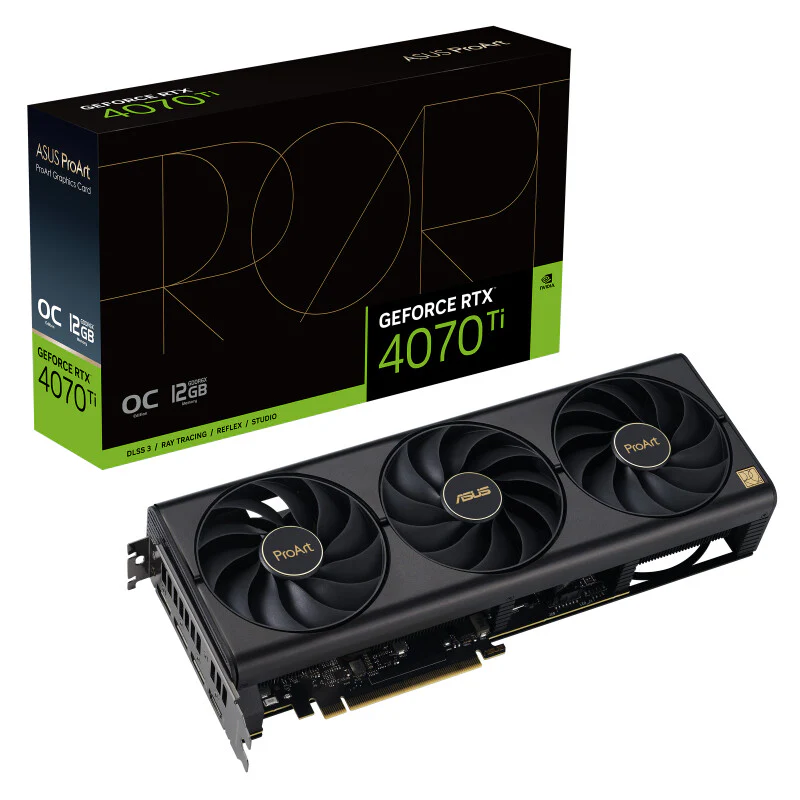

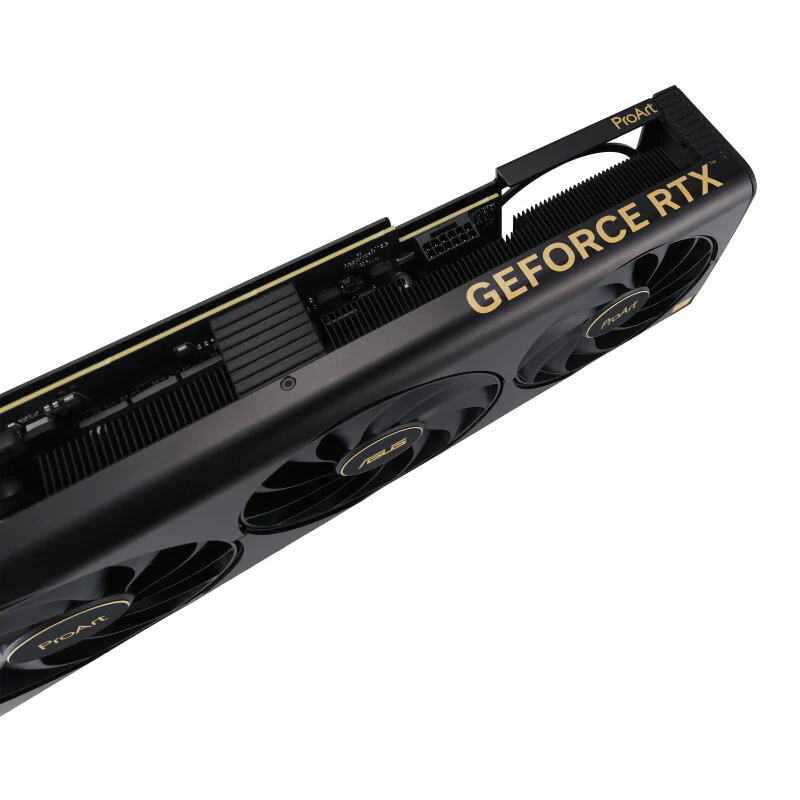

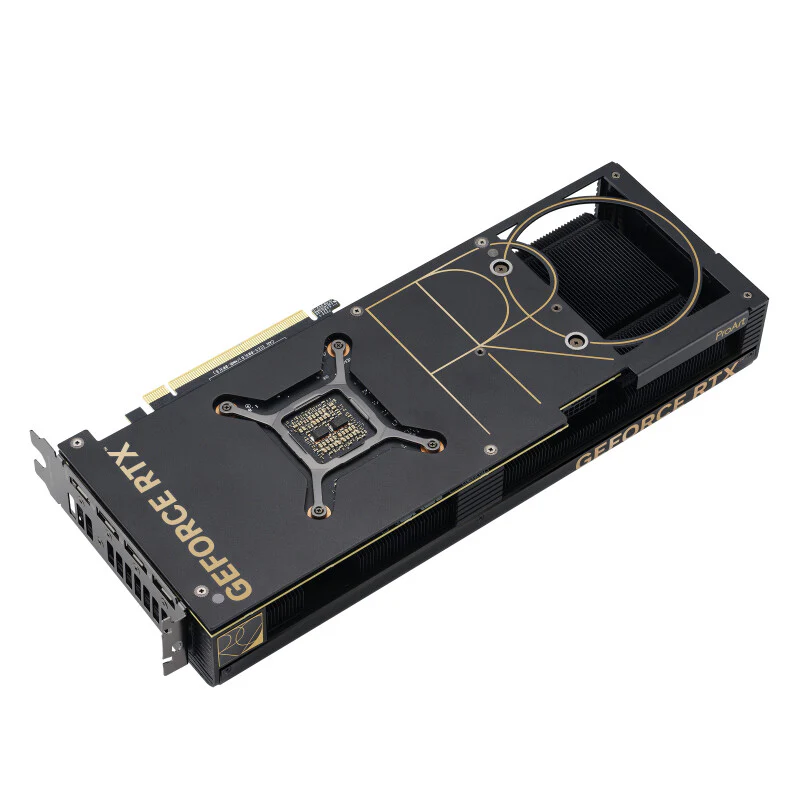

ProArt GeForce RTX 4070 Ti OC edition 12GB GDDR6X bring elegant and minimalist style to empower creator PC builds with full-scale GeForce RTX 40 Series performance
COMPACT. CREATIVE. POWER.
Blur the lines between imagination, the digital world, and reality. The ProArt GeForce RTX™ 4070 Ti packs the venerable Ada Lovelace architecture and potent cooling into a 2.5-slot frame, bringing immense creative power to compact builds and full-scale workstations.
The Ultimate Platform for Gamers and Creators
Powered by GeForce RTX 40 Series and DLSS 3
New Streaming Multiprocessors
Up to 2x performance and power efficiency
Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3
vs. brute-force rendering
Third-Gen RT Cores
Up to 2x ray tracing performance
Axial-tech Upgrades
A Fresh Spin
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 21% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
Reverse Rotation and 0dB Technology
Orchestrated Chill
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 C, referencing a speed curve that balances performance and acoustics for work or play.
Premium Power Delivery
1st Responder
Digital power control, an array of high-current power stages, and a lineup of 15K caps ensure massive reserves to reliably push performance boundaries.
Auto−Extreme Technology
Reliability Boost
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Graphics Card Holder
Pillar of Support
The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.
| Processor |
|---|
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| Processor frequency (OC mode) |
2760 MHz |
| Processor boost clock speed |
2730 MHz |
| CUDA cores |
7680 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 4070 Ti |
| Graphics processor family |
NVIDIA |
| Memory |
|---|
| Data transfer rate |
21 Gbit/s |
| Memory bus |
192 bit |
| Graphics card memory type |
GDDR6X |
| Discrete graphics card memory |
12 GB |
| Ports & interfaces |
|---|
| DisplayPort version |
1.4a |
| HDMI version |
2.1a |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
1 |
| Interface type |
PCI Express 4.0 |
| Performance |
|---|
| AMD FreeSync |
No |
| NVIDIA Ansel |
Yes |
| NVIDIA G-SYNC |
Yes |
| Dual Link DVI |
No |
| HDCP |
Yes |
| HDCP version |
2.3 |
| OpenGL version |
4.6 |
| DirectX version |
12 Ultimate |
| TV tuner integrated |
No |
| Design |
|---|
| Product colour |
Black |
| Number of slots |
2.5 |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Number of fans |
3 fan(s) |
| Cooling technology |
ASUS Axial-tech |
| Cooling type |
Active |
| Power |
|---|
| Supplementary power connectors |
1x 16-pin |
| Minimum system power supply |
750 W |
| Weight & dimensions |
|---|
| Depth |
120 mm |
| Height |
50 mm |
| Width |
300 mm |
| Weight |
1.1 kg |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
1.77 kg |
| Package height |
88.5 mm |
| Package depth |
233 mm |
| Package width |
405 mm |
| Manual |
Yes |
