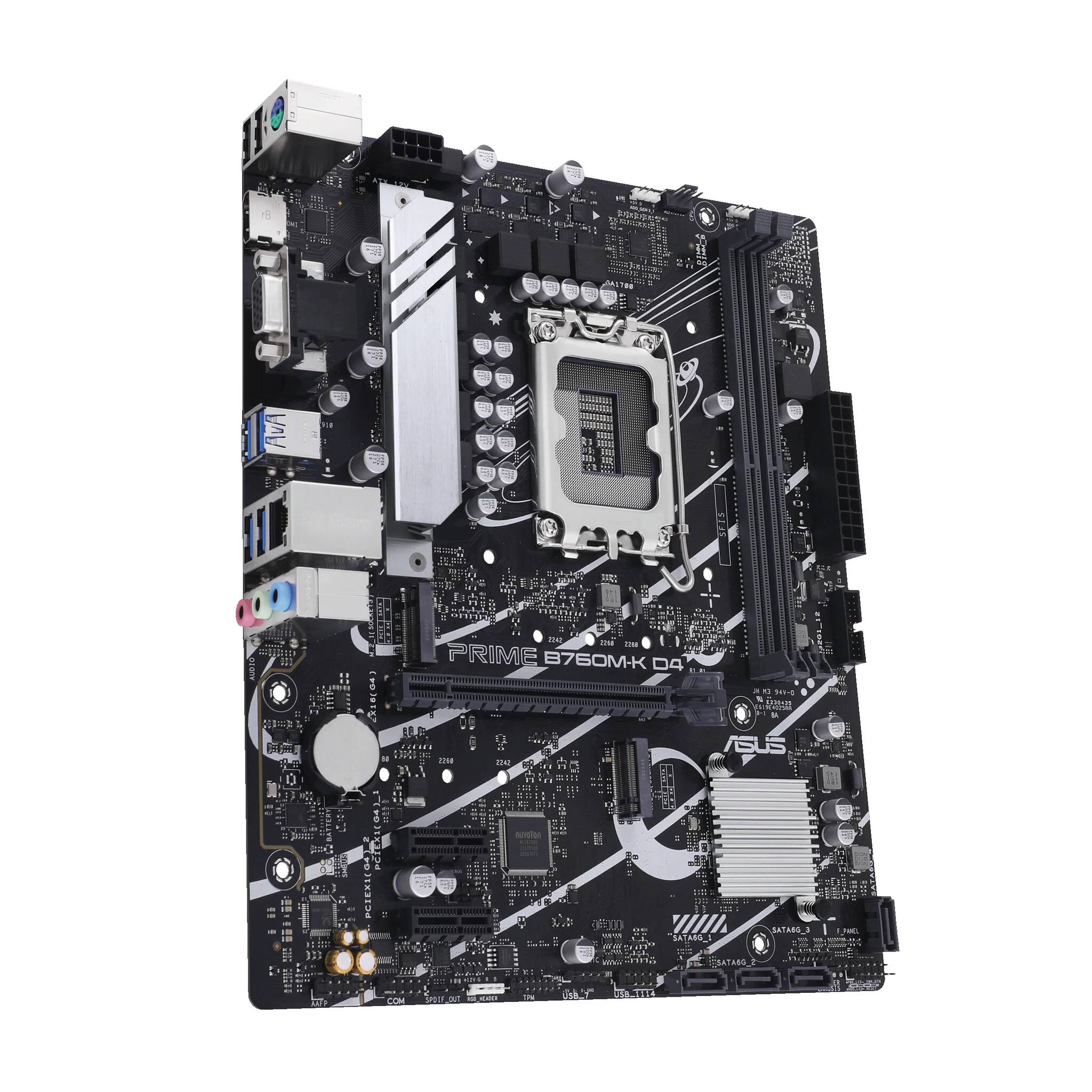

HomeStoreASUS PRIME B760M-K D4 micro ATX motherboard - Intel B760 LGA 1700
ASUS PRIME B760M-K D4 micro ATX motherboard - Intel B760 LGA 1700
| Processor |
|---|
| Supported processor sockets |
LGA 1700 |
| Compatible processor series |
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket |
LGA 1700 |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Unbuffered memory |
Yes |
| Maximum internal memory |
64 GB |
| Supported memory clock speed (max) |
5333 MHz |
| Supported memory clock speeds |
2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz |
| Non-ECC |
Yes |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Supported memory types |
DDR4-SDRAM |
| Storage controllers |
|---|
| RAID levels |
0, 1, 5, 10 |
| RAID support |
Yes |
| Number of HDDs supported |
4 |
| Number of storage drives supported |
6 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
|---|
| Parallel processing technology support |
Not supported |
| Internal I/O |
|---|
| RGB LED pin header |
Yes |
| Number of COM connectors |
1 |
| TPM connector |
Yes |
| 12V power connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Number of chassis fan connectors |
1 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| S/PDIF out connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
2 |
| Rear panel I/O ports |
|---|
| USB connector type |
USB Type-A |
| Microphone in |
Yes |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
2 |
| Network |
|---|
| Wi-Fi |
No |
| Wake-on-LAN ready |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
|---|
| Windows operating systems supported |
Windows 10 x64, Windows 11 |
| Audio output channels |
7.1 channels |
| Motherboard chipset |
Intel B760 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
2 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x1 (Gen 4.x) slots |
2 |
| BIOS |
|---|
| BIOS memory size |
128 Mbit |
| BIOS type |
UEFI AMI |
| Packaging data |
|---|
| Package weight |
926.3 g |
| Package height |
263 mm |
| Package depth |
51.5 mm |
| Package width |
270 mm |
| Weight & dimensions |
|---|
| Height |
36 mm |
| Depth |
211 mm |
| Width |
244 mm |
| Packaging content |
|---|
| Cables included |
SATA |
| Other features |
|---|
| Weight |
528 g |
$57.13Original: $163.22
-65% ASUS PRIME B760M-K D4 micro ATX motherboard - Intel B760 LGA 1700—
