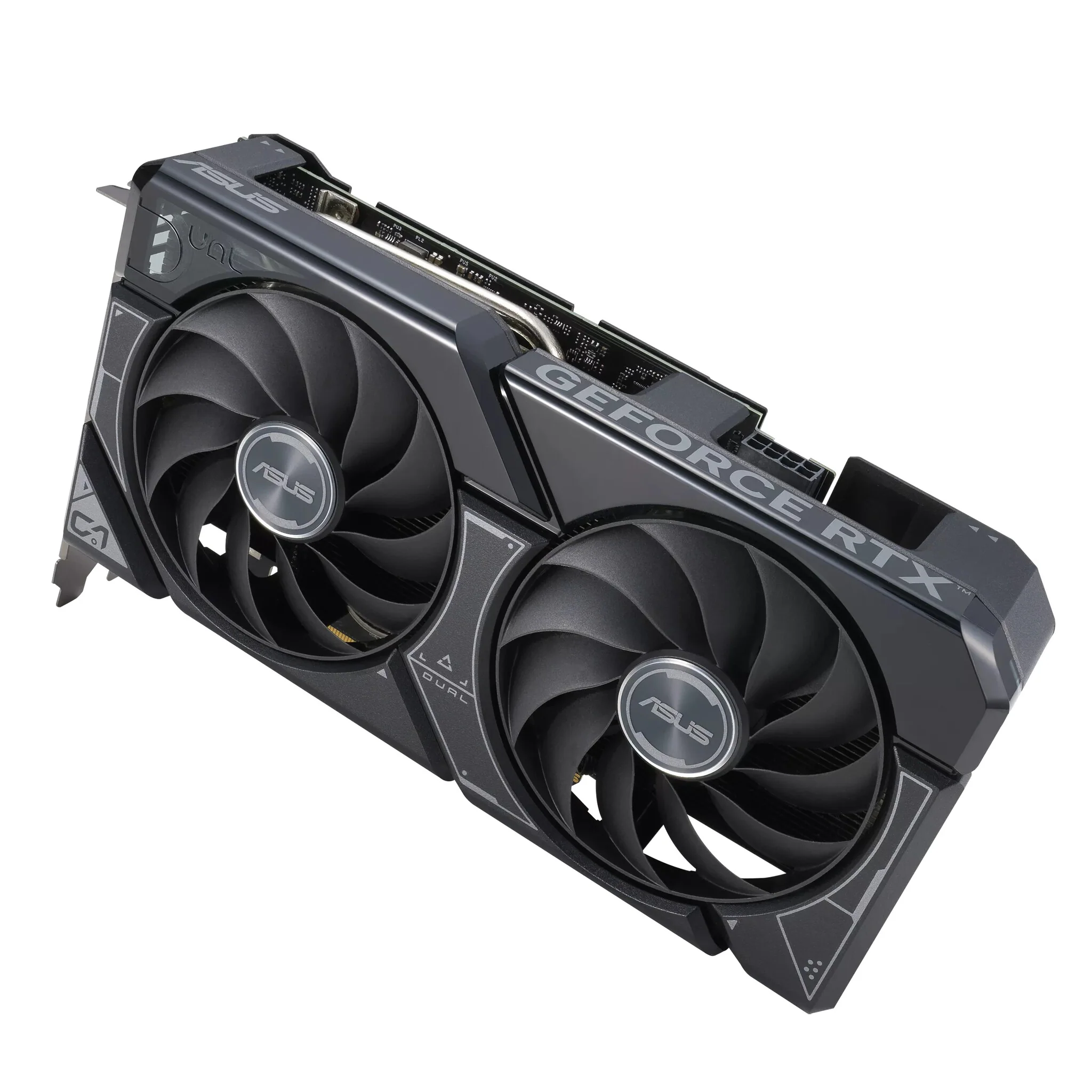

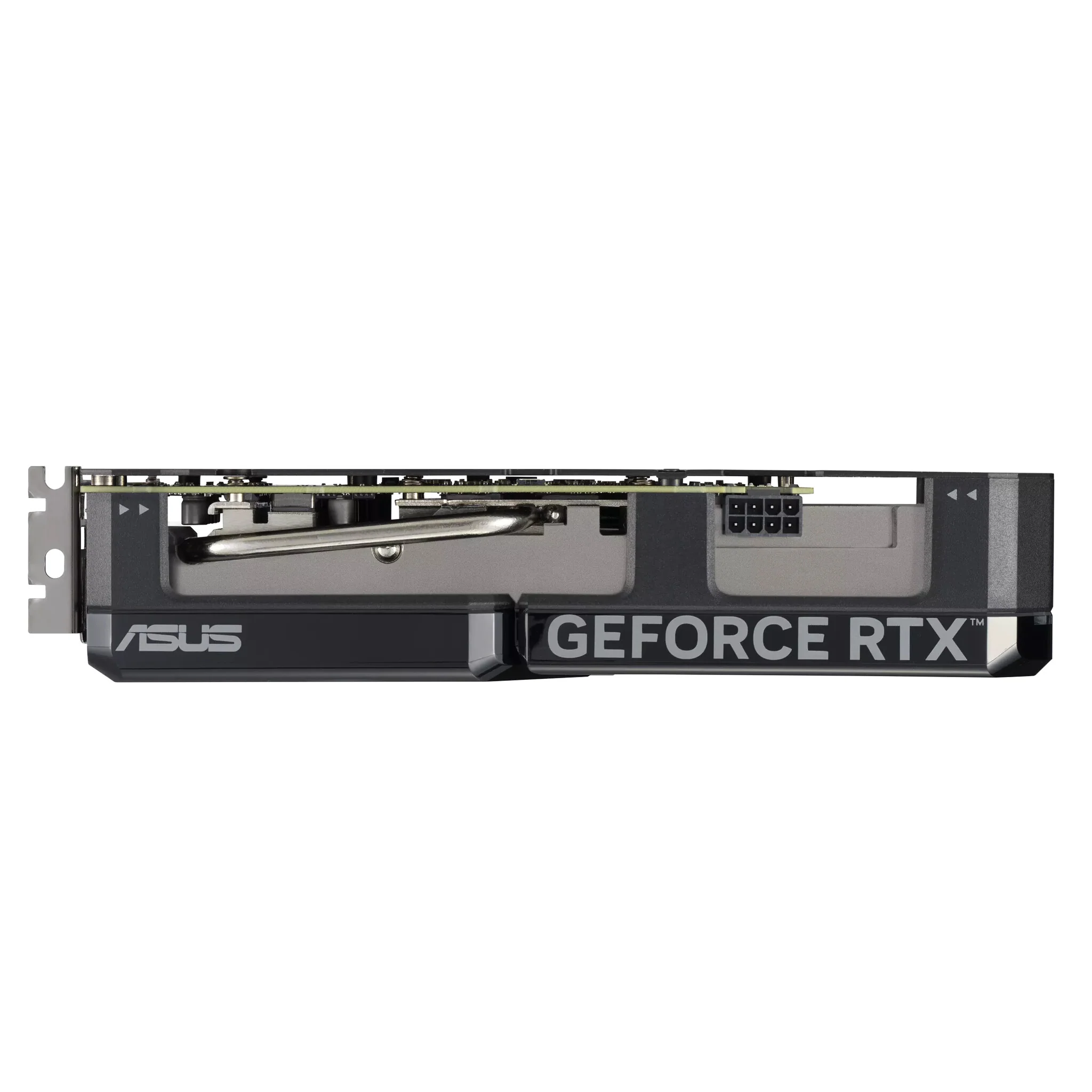

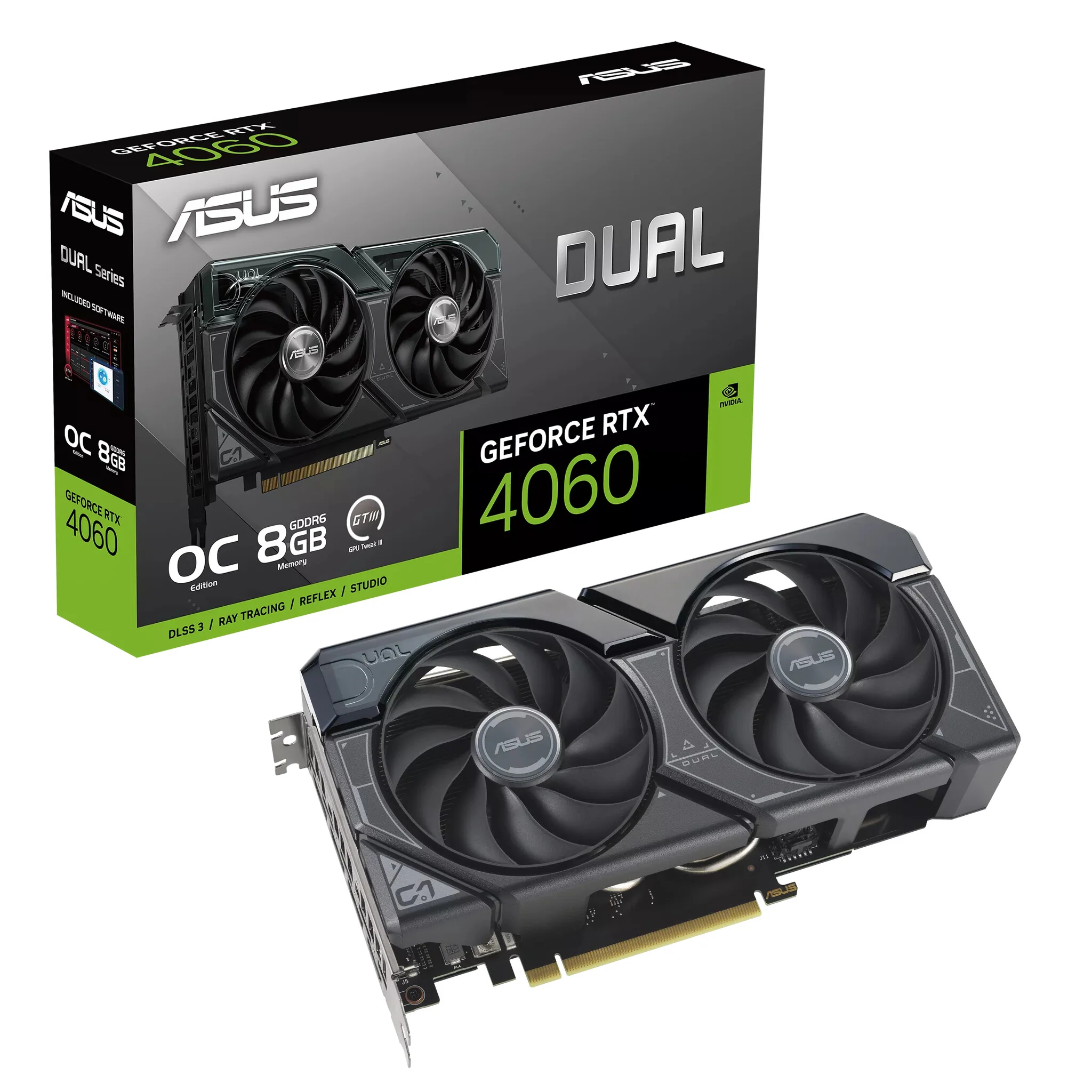

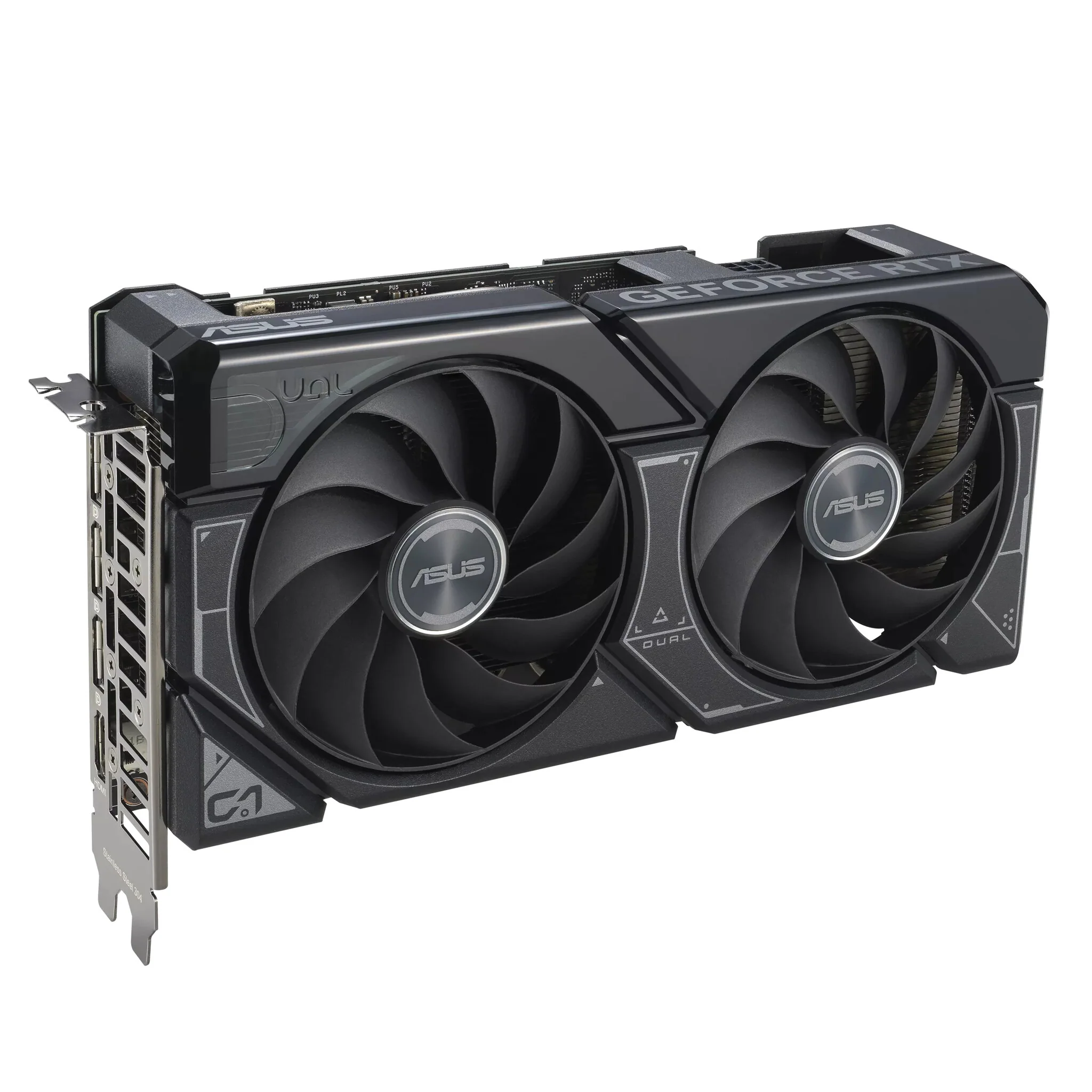

Dual GeForce RTX 4060 OC Edition 8GB GDDR6 with two powerful Axial-tech fans and a 2.5-slot design for broad compatibility
2x Fans. 2x Fun.
ASUS Dual GeForce RTX™ 4060 fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for maximizing airflow to the heatsink — are packed into the 22.7 cm long, 2.5-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
The Ultimate Platform for Gamers and Creators
Powered by GeForce RTX 40 Series and DLSS 3

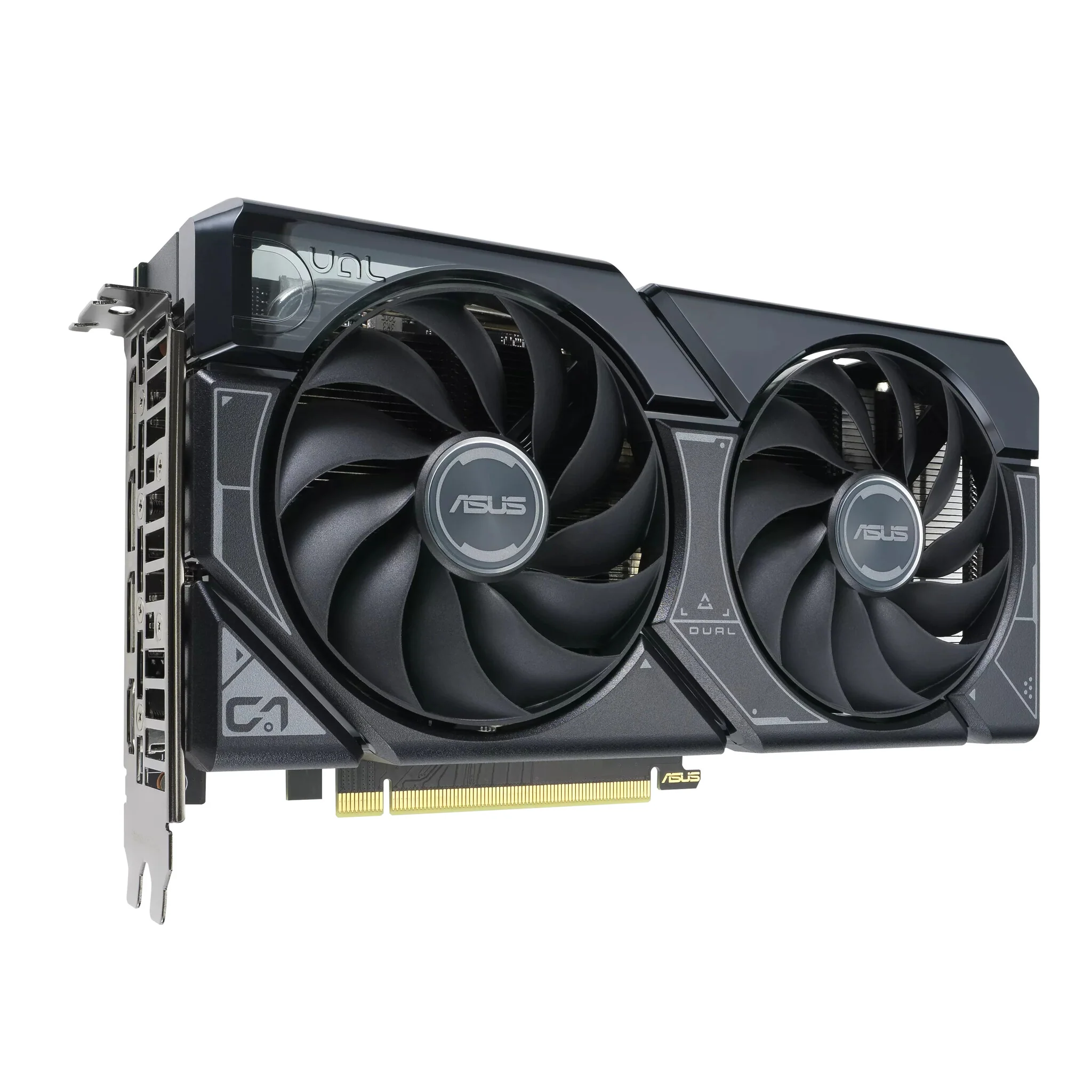

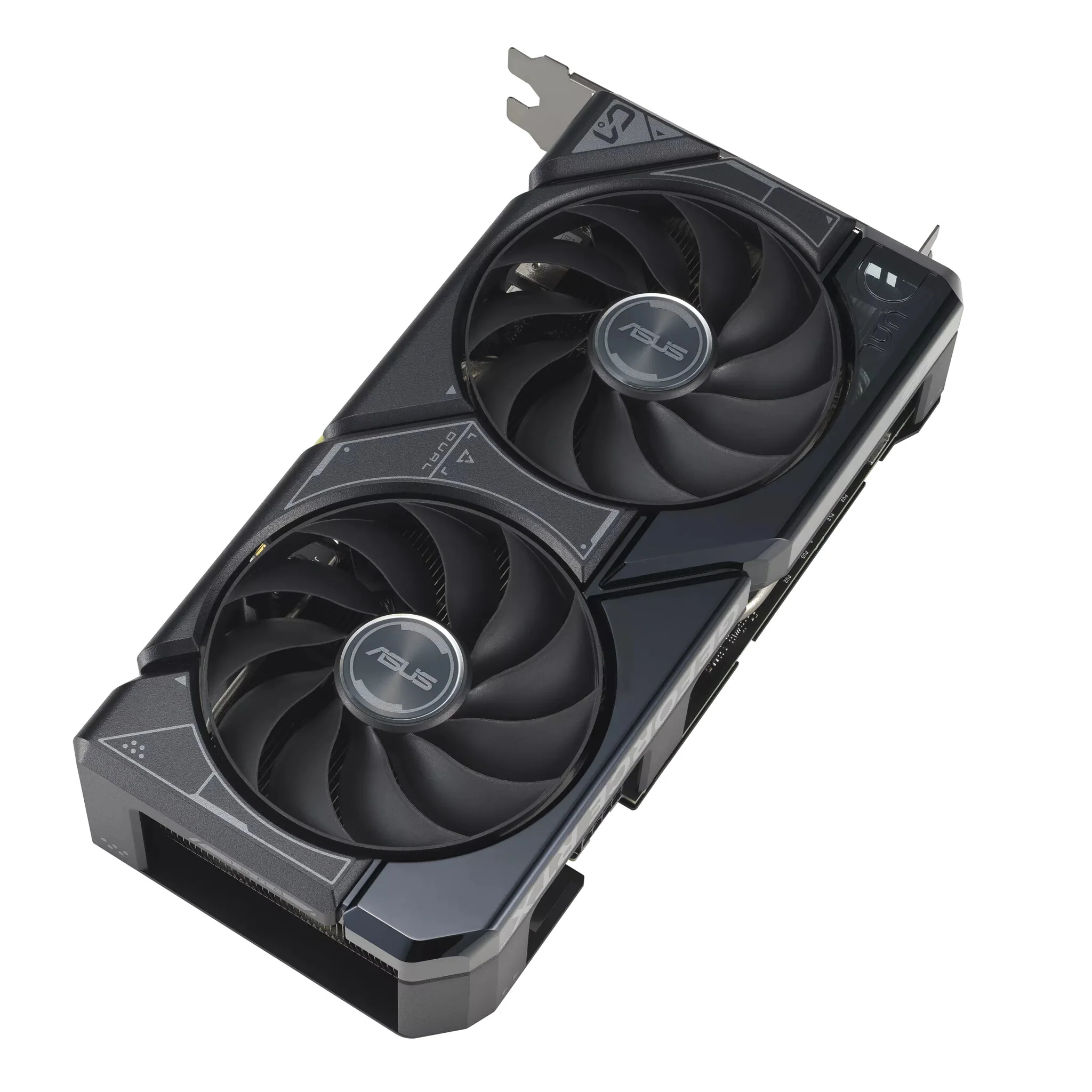

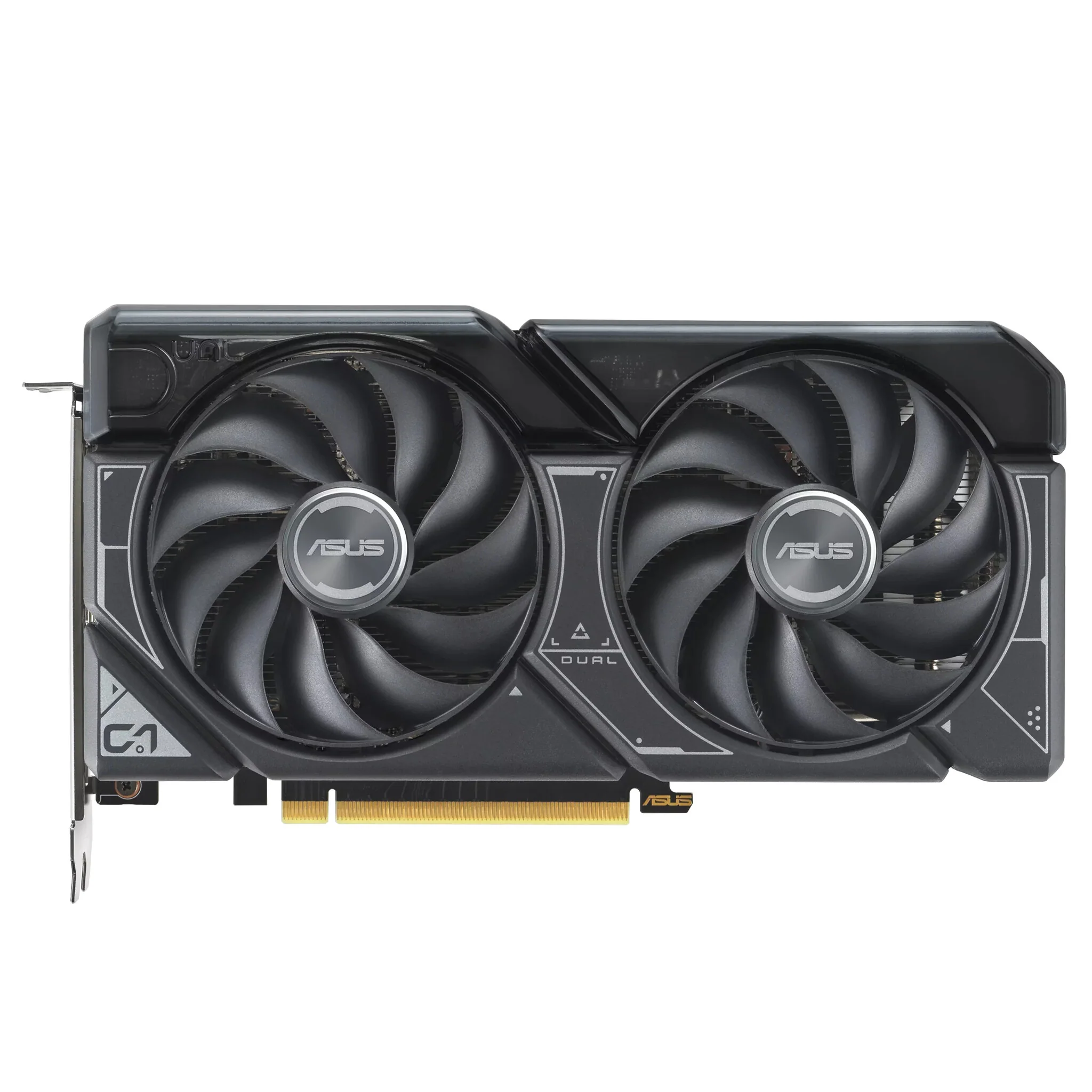

Axial-tech Fan Design
Better, faster, stronger
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.
Auto-Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
GPU TWEAK III
Monitor, tweak, and tune
The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
144-hour Validation Program
"Extensive" may be an understatement
A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.
| Processor |
|---|
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| Processor frequency (OC mode) |
2490 MHz |
| Processor boost clock speed |
2460 MHz |
| CUDA cores |
3072 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 4060 |
| Graphics processor family |
NVIDIA |
| Memory |
|---|
| Memory bandwidth (max) |
17 GB/s |
| Memory bus |
128 bit |
| Graphics card memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |

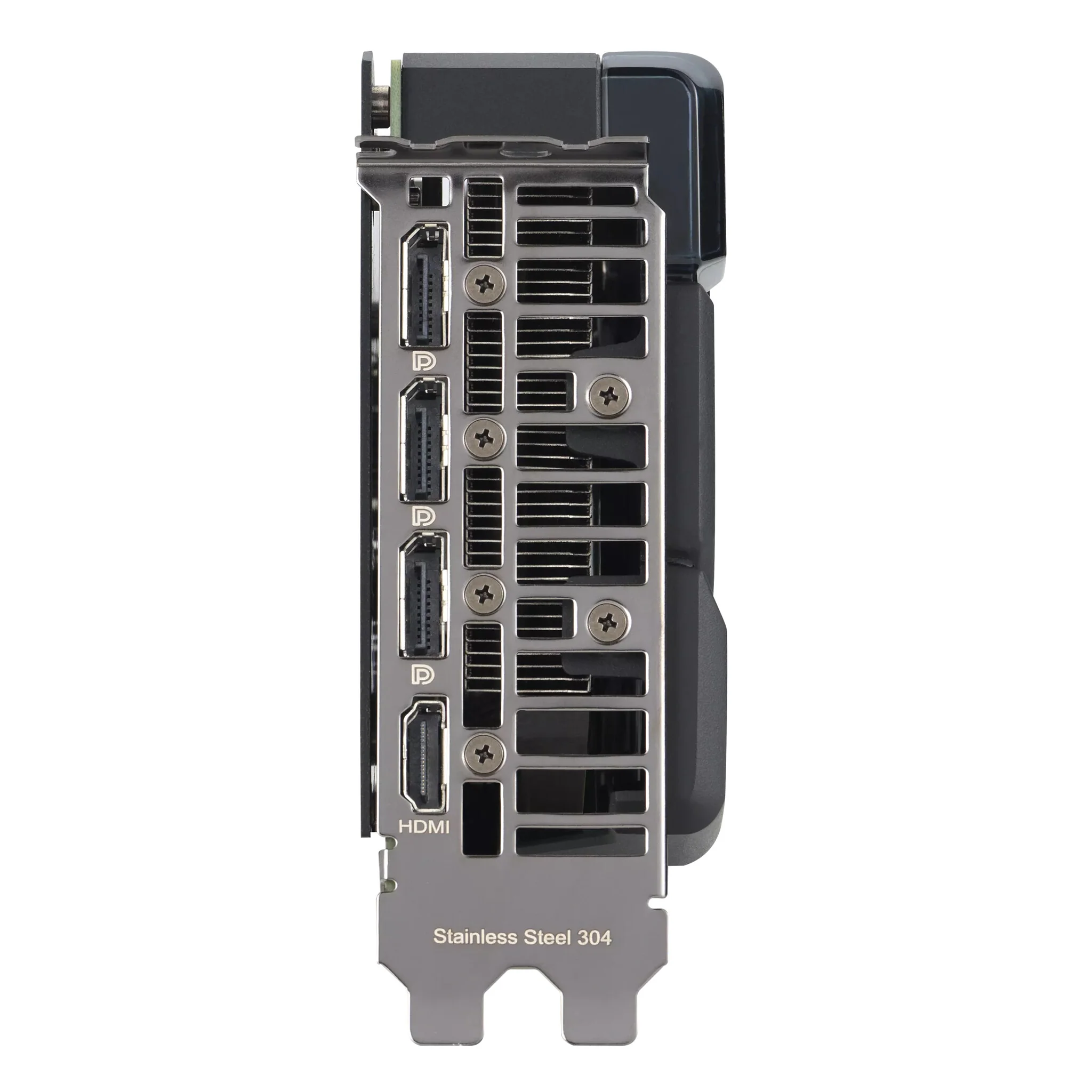

| Ports & interfaces |
|---|
| DisplayPort version |
1.4a |
| HDMI version |
2.1a |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
1 |
| Interface type |
PCI Express 4.0 |
| Performance |
|---|
| Dual Link DVI |
No |
| HDCP |
Yes |
| HDCP version |
2.3 |
| OpenGL version |
4.6 |
| TV tuner integrated |
No |
| Design |
|---|
| Product colour |
Black |
| Number of slots |
2.5 |
| Number of fans |
2 fan(s) |
| Cooling technology |
ASUS Axial-tech |
| Cooling type |
Active |
| Power |
|---|
| Supplementary power connectors |
1x 8-pin |
| Minimum system power supply |
550 W |
| General |
|---|
| Product Family |
Dual |
| Weight & dimensions |
|---|
| Depth |
123 mm |
| Height |
38 mm |
| Width |
200 mm |
| Weight |
616 g |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
1.12 kg |
| Package height |
55 mm |
| Package depth |
220 mm |
| Package width |
303 mm |
| Manual |
Yes |
