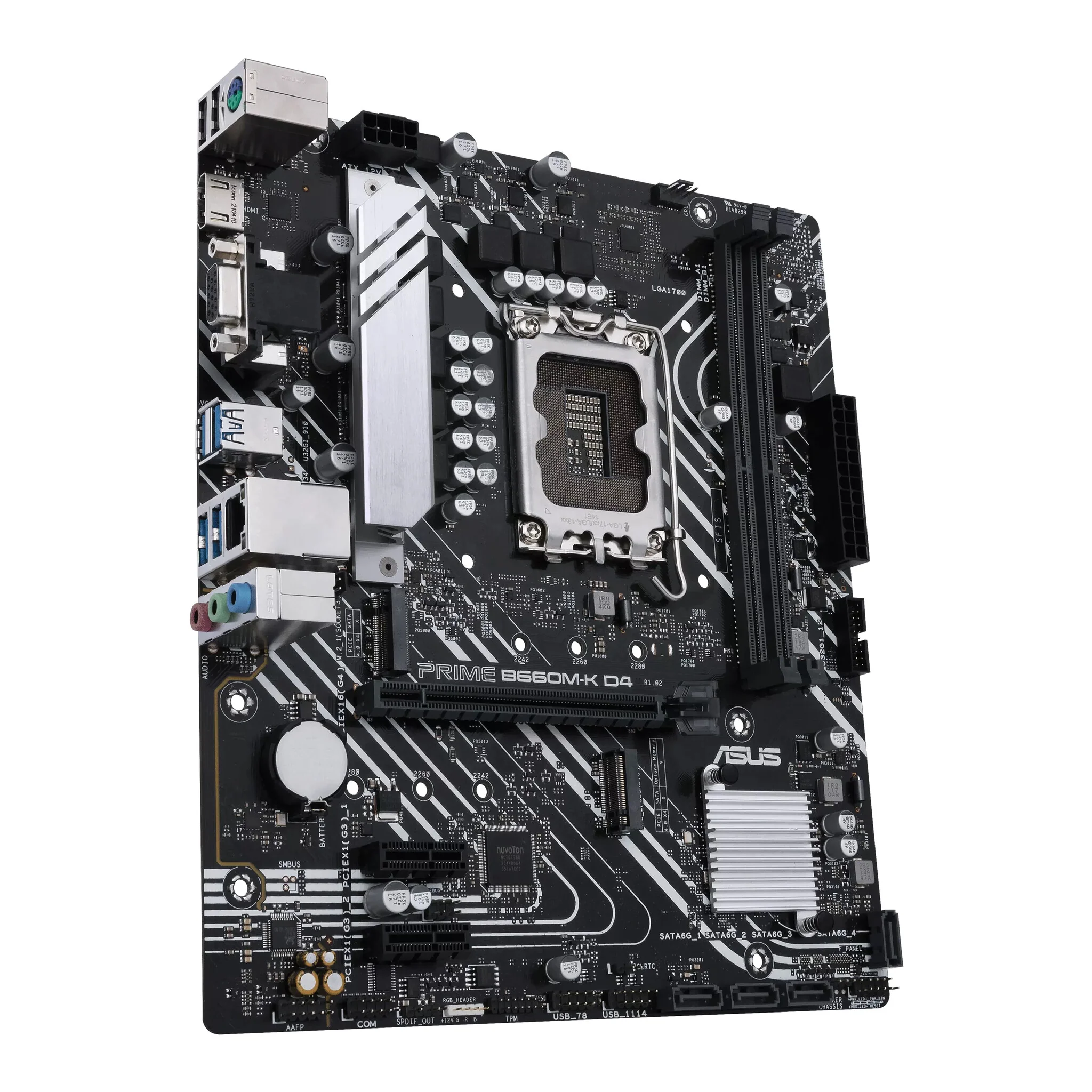

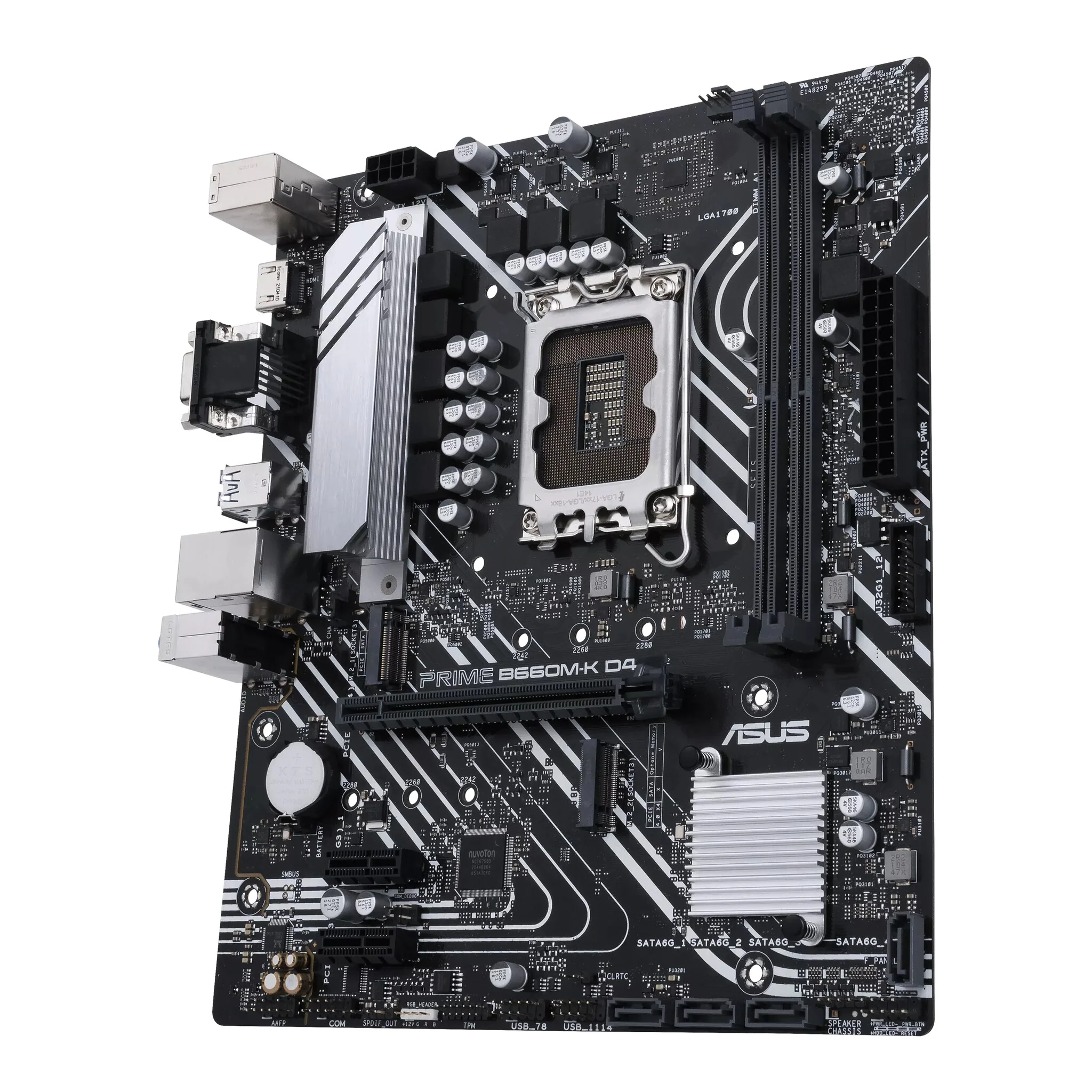

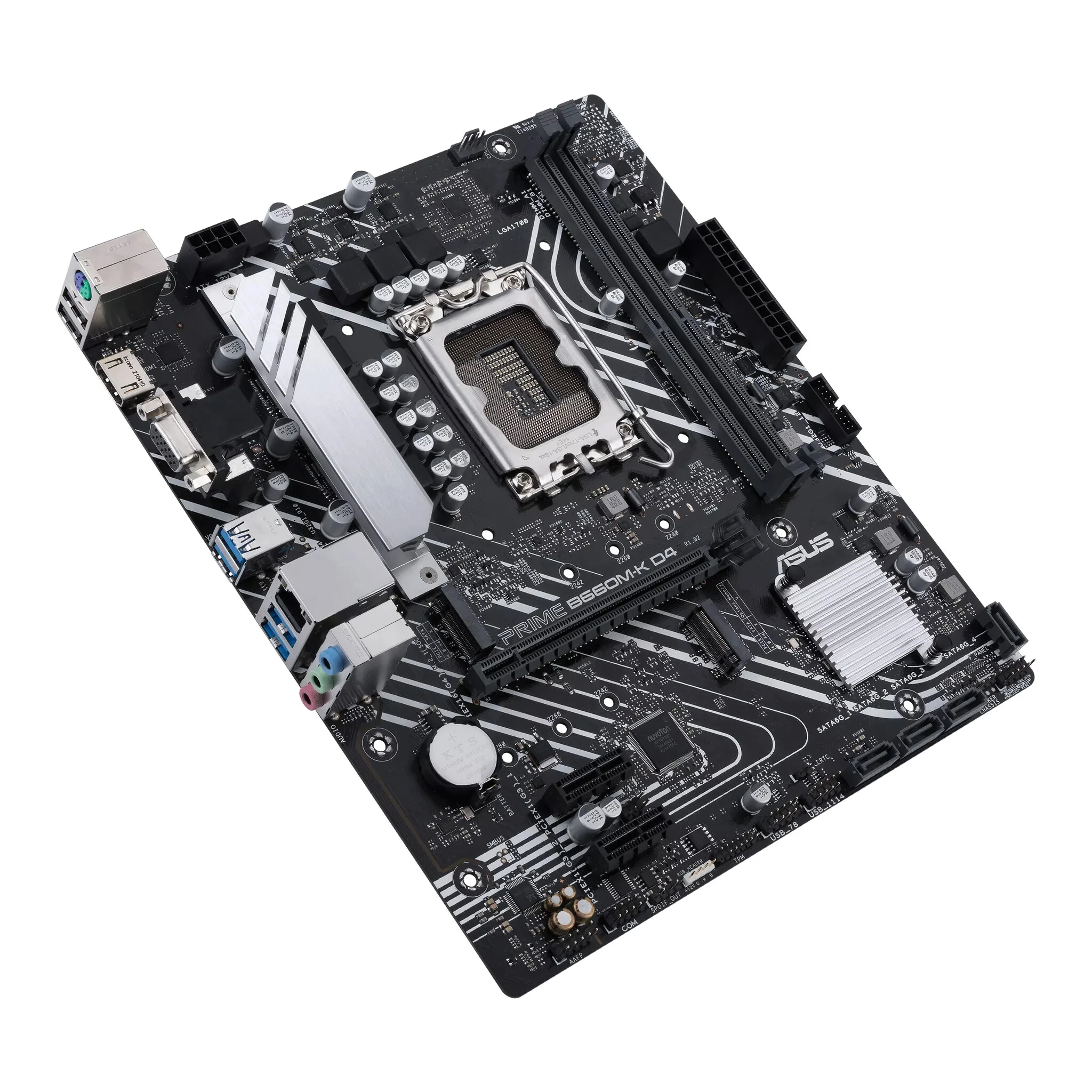

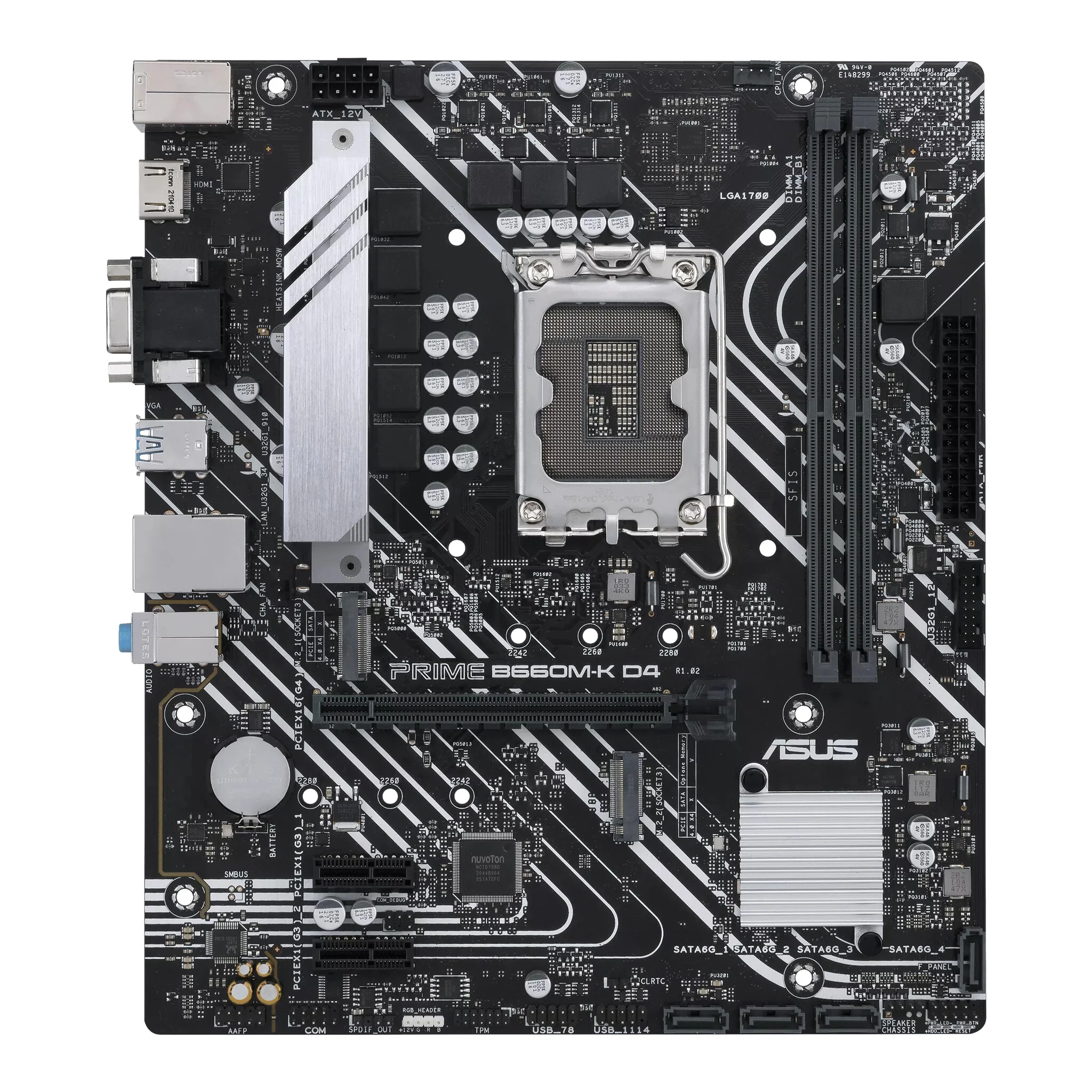

ASUS 1700 PRIME B660M-K D4 M-ATX Intel B660 LGA 1700 micro ATX
Intel B660 (LGA 1700) mATX motherboard with PCIe 4.0, two M.2 slots, DDR4, HDMI, D-Sub, Realtek 1Gb Ethernet, front USB 3.2 Gen 1, ASUS Lighting Control
| Processor | |
|---|---|
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 128 GB |
| Supported memory clock speed (max) | 5333 MHz |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5333 MHz |
| Non-ECC | Yes |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of chassis fan connectors | 2 |
| CPU fan connector | Yes |
| Power fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| USB 2.0 connectors | 3 |
| Rear panel I/O ports | |
|---|---|
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard chipset | Intel B660 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| BIOS | |
|---|---|
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Weight & dimensions | |
|---|---|
| Depth | 244 mm |
| Width | 244 mm |

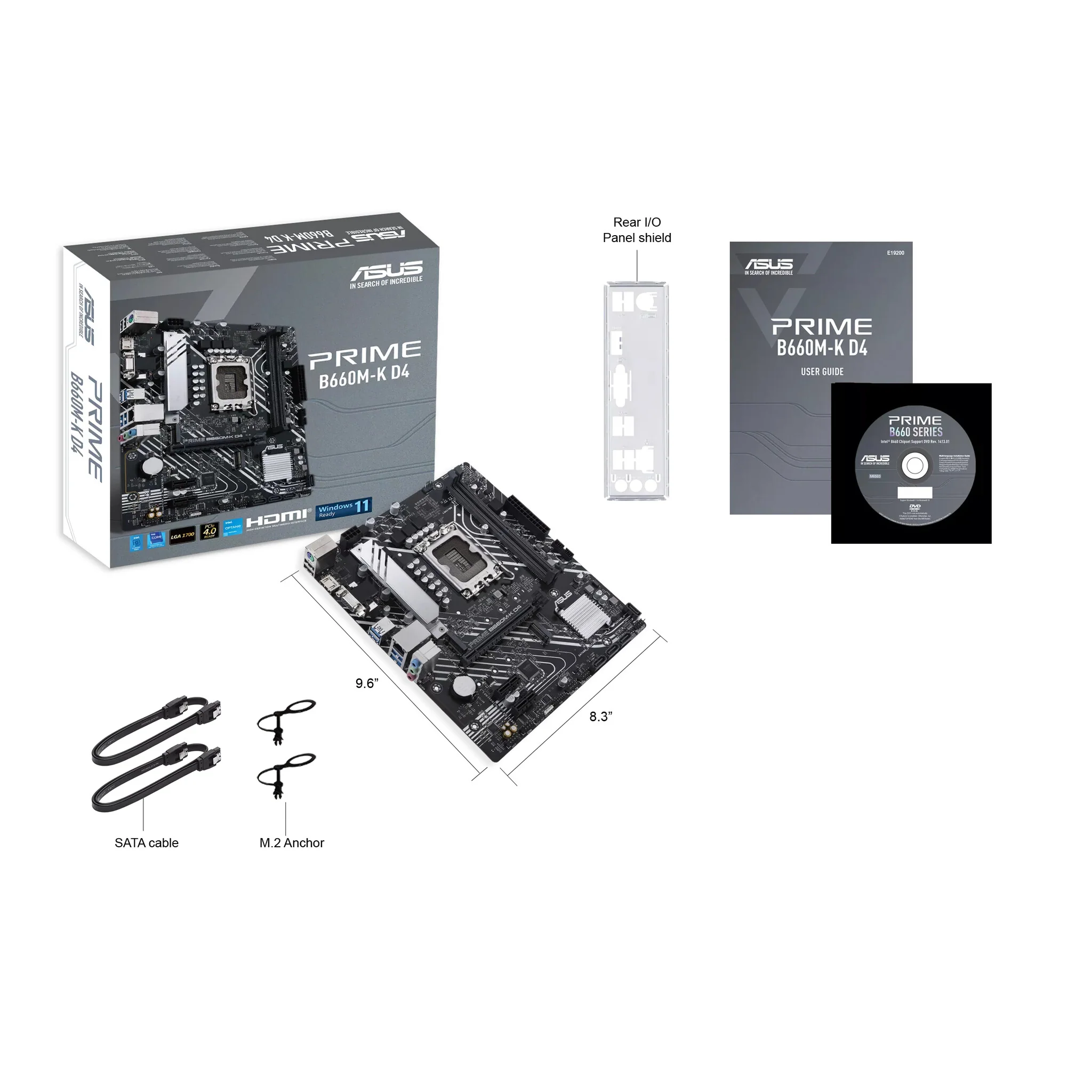

| Packaging content | |
|---|---|
| Cables included | SATA |
