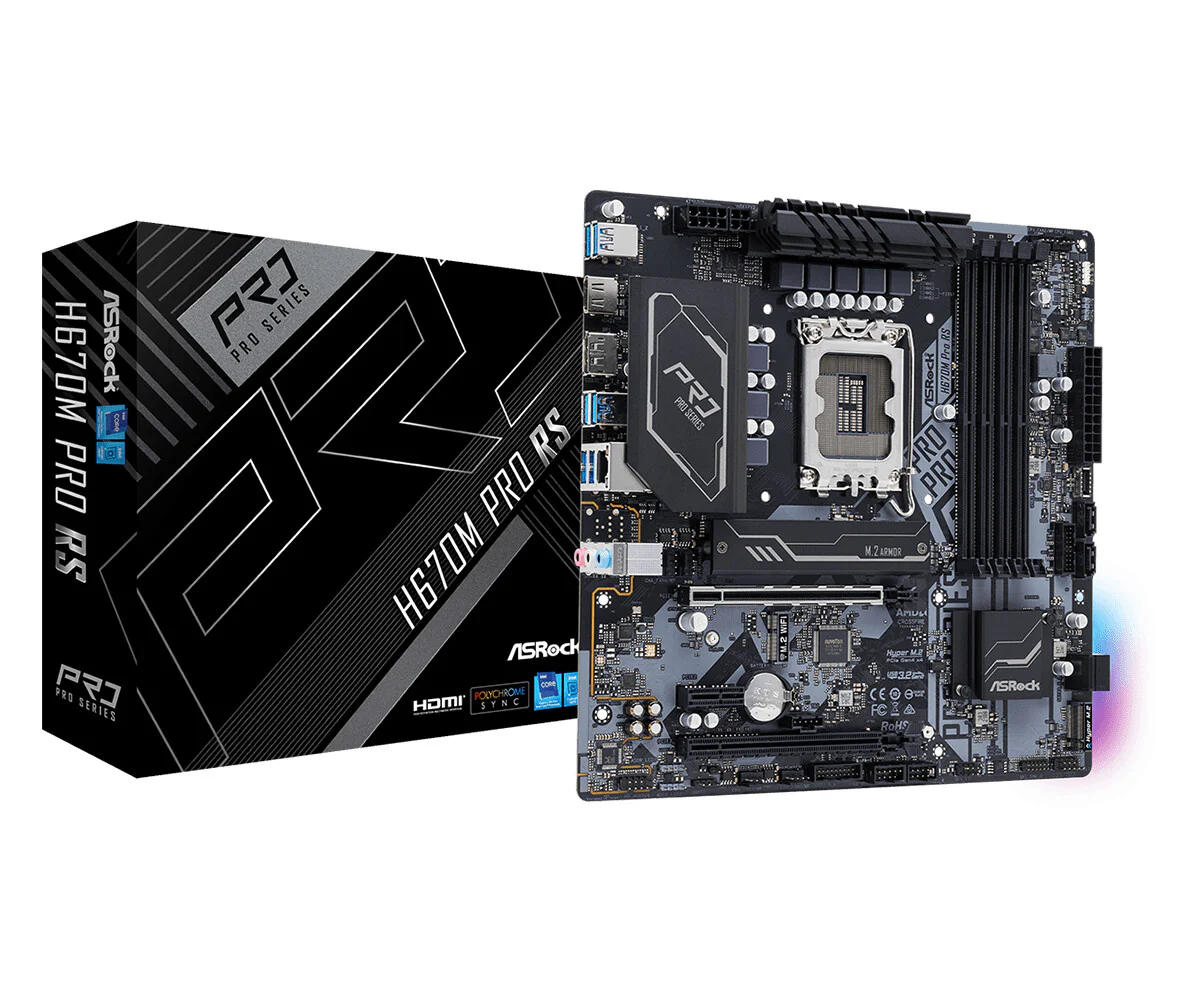

Asrock H670M Pro RS micro ATX motherboard - Intel H670 LGA 1700

Product image 1
1 / 5

Asrock H670M Pro RS micro ATX motherboard - Intel H670 LGA 1700

Intel H670, LGA1700, 4 x DDR4, HDMI, DP, 1G LAN, M.2, SATA III, USB 3.2, Micro ATX, 244x244 mm

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.

Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
- Extra anchor points
- Stronger latch
- Ensure signal stability
- Make sure heavy graphics cards to be well-installed.

Intel Gigabit LAN
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

High Speed M.2 Solution
This motherboard is capable of accomadating multiple PCI Express 4.0 M.2 SSDs, which is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

Processor
Maximum number of SMP processors 1
Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Processor socket LGA 1700
Processor manufacturer Intel
Memory
Unbuffered memory Yes
Maximum internal memory 128 GB
Supported memory clock speeds 4800 MHz
Non-ECC Yes
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory types DDR4-SDRAM
Storage controllers
RAID levels 0, 1, 5, 10
RAID support Yes
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
Graphics
HDCP Yes
Maximum resolution 7680 x 4320 pixels
Internal I/O
RGB LED pin header Yes
Thunderbolt headers 1
TPM connector Yes
12V power connector Yes
Chassis intrusion connector Yes
Number of chassis fan connectors 3
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Front panel audio connector Yes
Number of SATA III connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 2.0 connectors 2
Rear panel I/O ports
DisplayPort version 1.4
DisplayPorts quantity 1
HDMI version 2.1
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Network
Wi-Fi No
Wake-on-LAN ready Yes
LAN controller Intel® I219-V
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Features
PC health monitoring CPU, Fan, Temperature, Voltage
Audio output channels 7.1 channels
Audio chip Realtek ALC897
Motherboard chipset Intel H670
Motherboard chipset family Intel
Motherboard form factor micro ATX
Component for Server
Expansion slots
Number of M.2 (M) slots 2
PCI Express x16 slots 2
PCI Express x1 (Gen 3.x) slots 1
BIOS
System Management BIOS (SMBIOS) version 2.7
ACPI version 6.0
BIOS memory size 128 Mbit
BIOS type UEFI AMI
Logistics data
Harmonized System (HS) code 84733020
Weight & dimensions
Depth 244 mm
Width 244 mm
Packaging content
Drivers included Yes
Cables included SATA
$229.54
