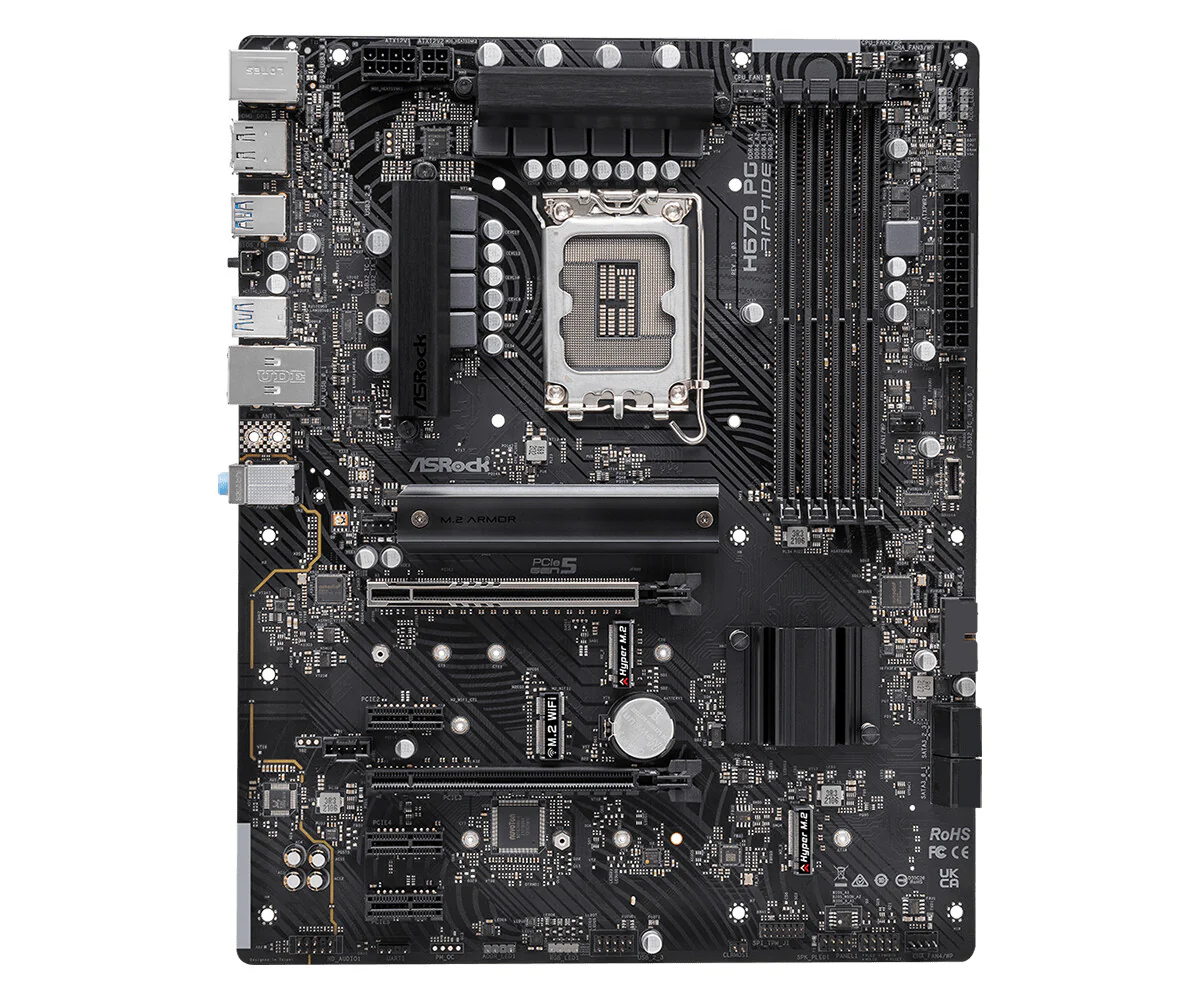

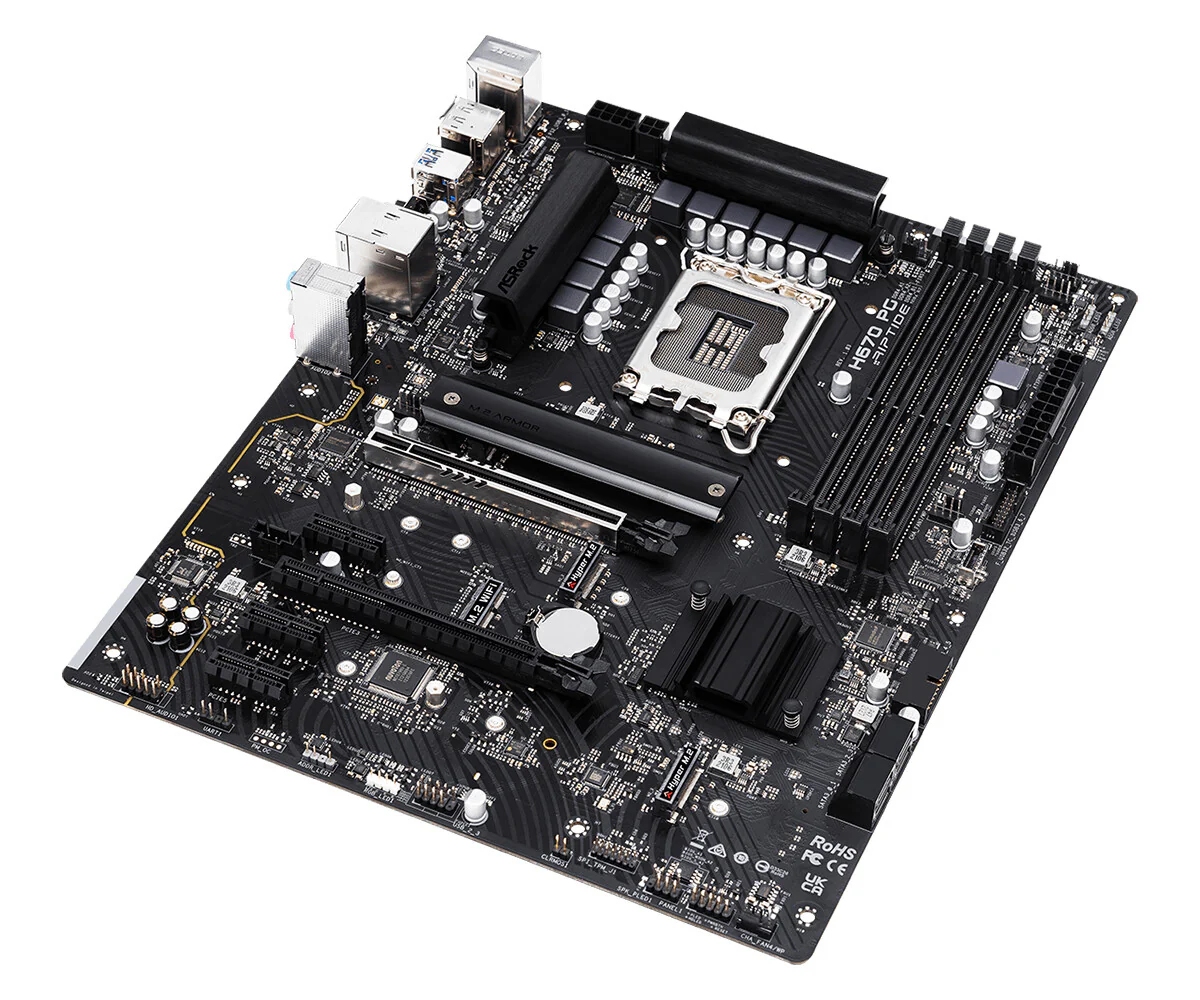

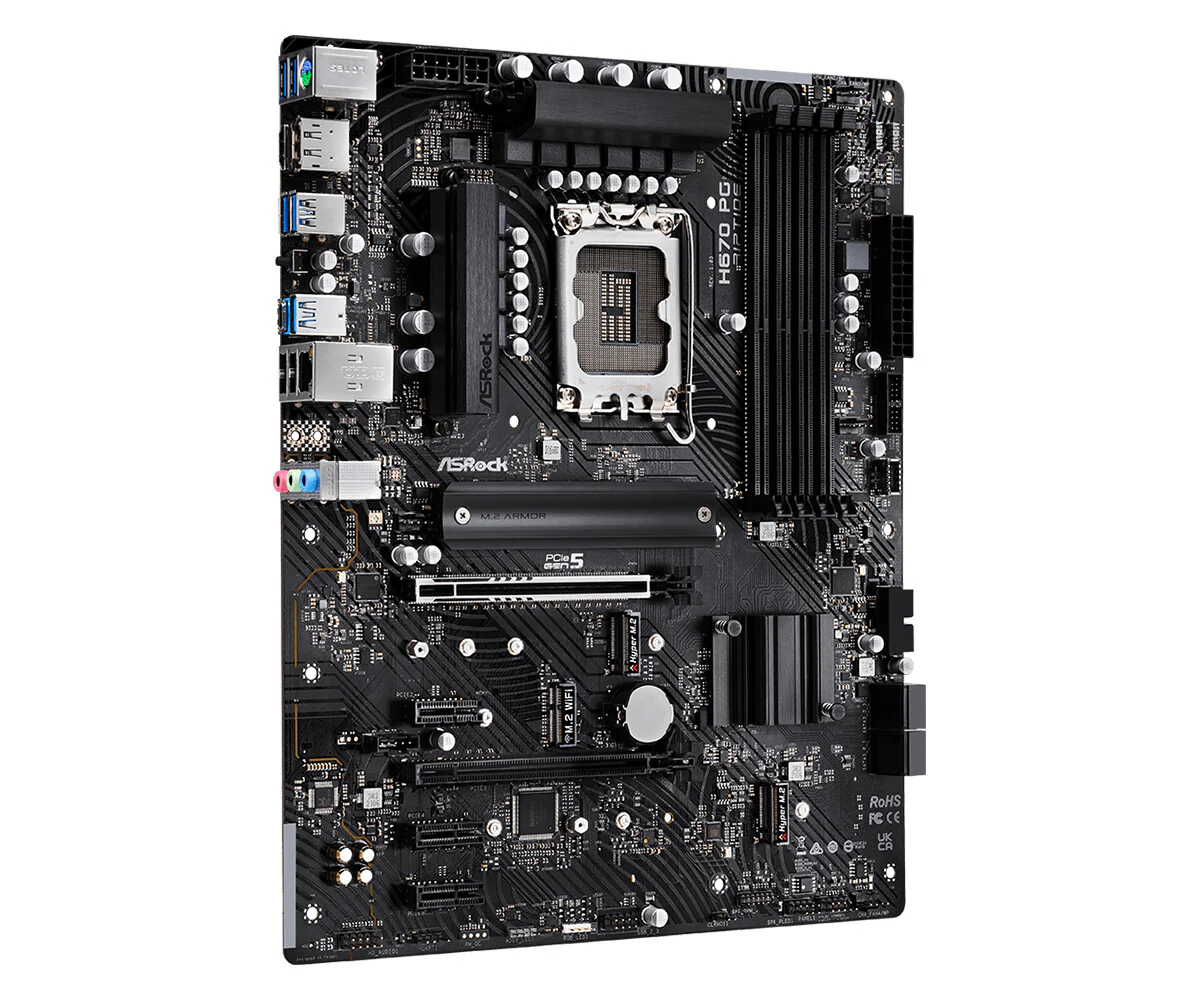

Asrock H670 PG Riptide ATX motherboard - Intel H670 LGA 1700

Product image 1
1 / 5

Asrock H670 PG Riptide ATX motherboard - Intel H670 LGA 1700

Intel H670, LGA1700, 4 x DDR4, HDMI, DP, 1G LAN, M.2, SATA III, PS/2, USB 3.2, ATX, 305x244 mm

Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea’s double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Lightning Gaming Ports
Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!

POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects

High Speed M.2 Solution
This motherboard is capable of accomadating multiple PCI Express 4.0 M.2 SSDs, which is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Front USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

Processor
Maximum number of SMP processors 1
Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Processor socket LGA 1700
Processor manufacturer Intel
Memory
Unbuffered memory Yes
Maximum internal memory 128 GB
Supported memory clock speeds 5000 MHz
Non-ECC Yes
ECC Yes
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory types DDR4-SDRAM
Storage controllers
RAID levels 0, 1, 5, 10
RAID support Yes
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
Graphics
HDCP Yes
Parallel processing technology support Crossfire
Internal I/O
RGB LED pin header Yes
Thunderbolt headers 1
TPM connector Yes
12V power connector Yes
Number of chassis fan connectors 3
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Front panel audio connector Yes
Number of SATA III connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 2.0 connectors 1

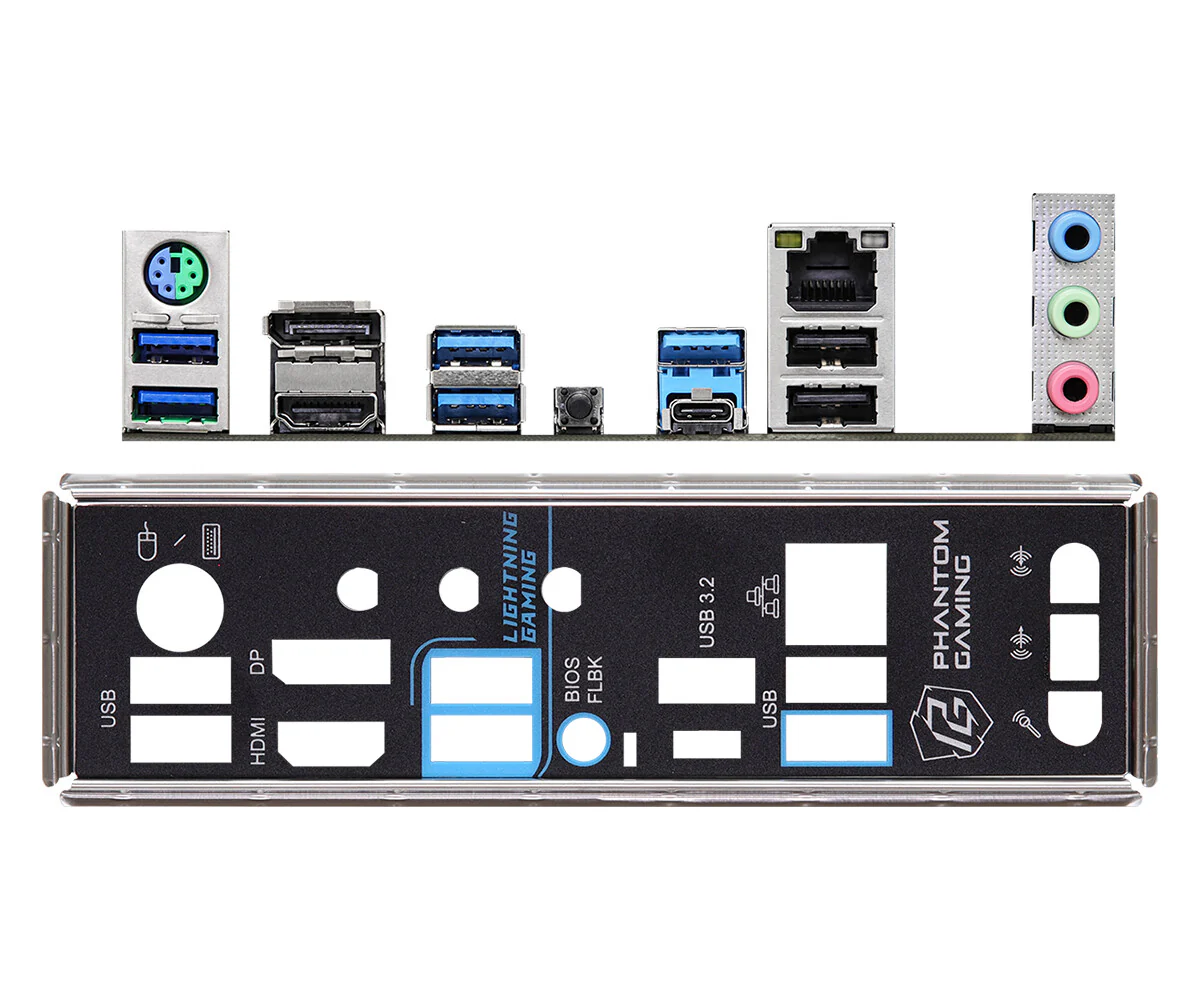

Rear panel I/O ports
DisplayPorts quantity 1
HDMI ports quantity 1
PS/2 ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 2.0 ports quantity 2
Network
Wi-Fi No
Wake-on-LAN ready Yes
LAN controller Intel® I219-V
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Features
Windows operating systems supported Windows 10 x64, Windows 11 x64
PC health monitoring CPU, Fan, Temperature, Voltage
Audio output channels 7.1 channels
Audio chip Realtek ALC897
Motherboard chipset Intel H670
Motherboard chipset family Intel
Motherboard form factor ATX
Component for PC
Expansion slots
Number of M.2 (M) slots 3
PCI Express x16 slots 2
PCI Express x1 (Gen 3.x) slots 3
BIOS
System Management BIOS (SMBIOS) version 2.7
ACPI version 6.0
BIOS memory size 128 Mbit
BIOS type UEFI AMI
Logistics data
Harmonized System (HS) code 84733020
Weight & dimensions
Height 70 mm
Depth 244 mm
Width 305 mm
Packaging content
Drivers included Yes
Cables included SATA
Other features
Weight 1 kg
$83.52

Original: $238.63

-65%
Asrock H670 PG Riptide ATX motherboard - Intel H670 LGA 1700

$238.63

$83.52

Product Information

Shipping & Returns

Description

Intel H670, LGA1700, 4 x DDR4, HDMI, DP, 1G LAN, M.2, SATA III, PS/2, USB 3.2, ATX, 305x244 mm
