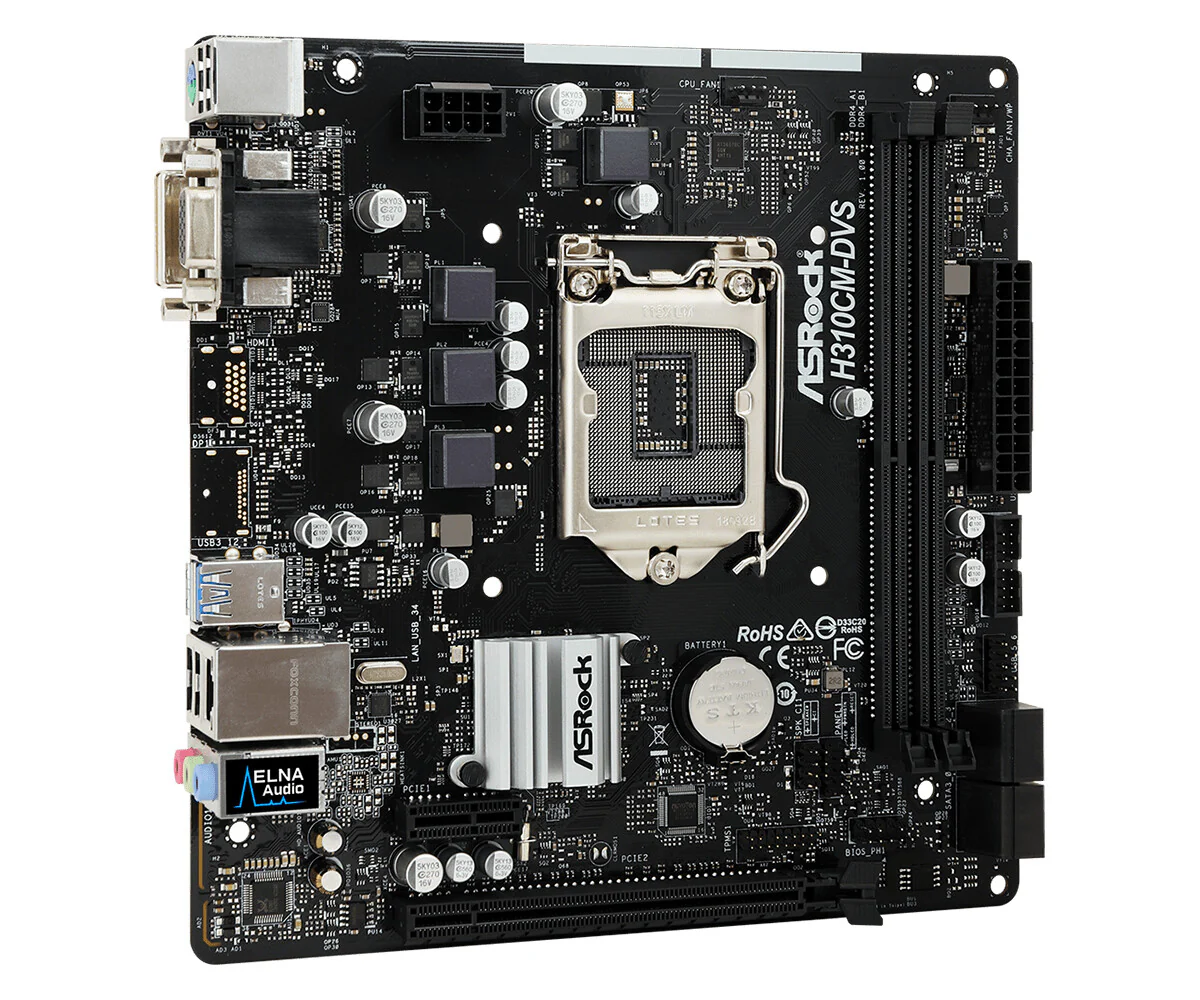

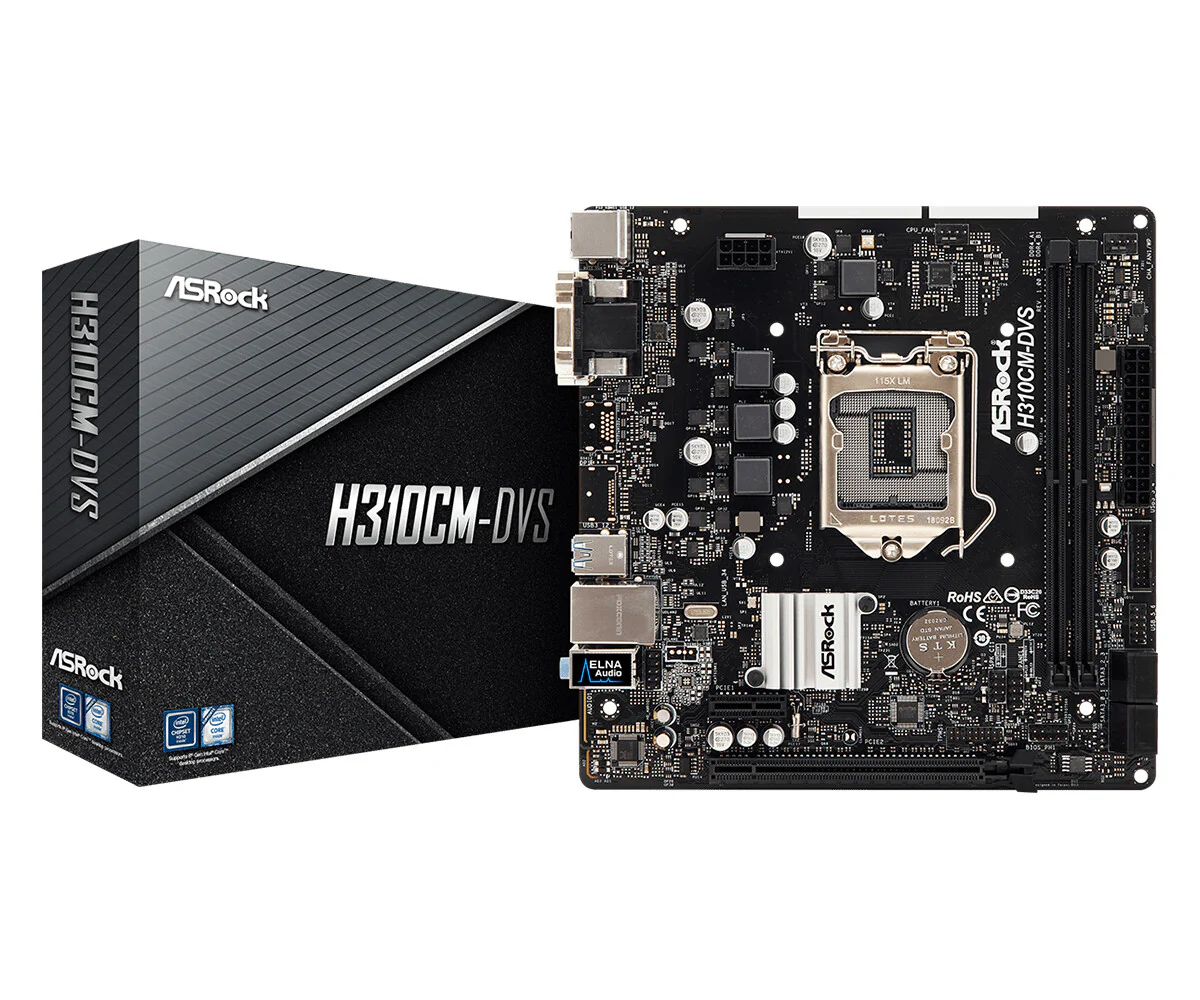

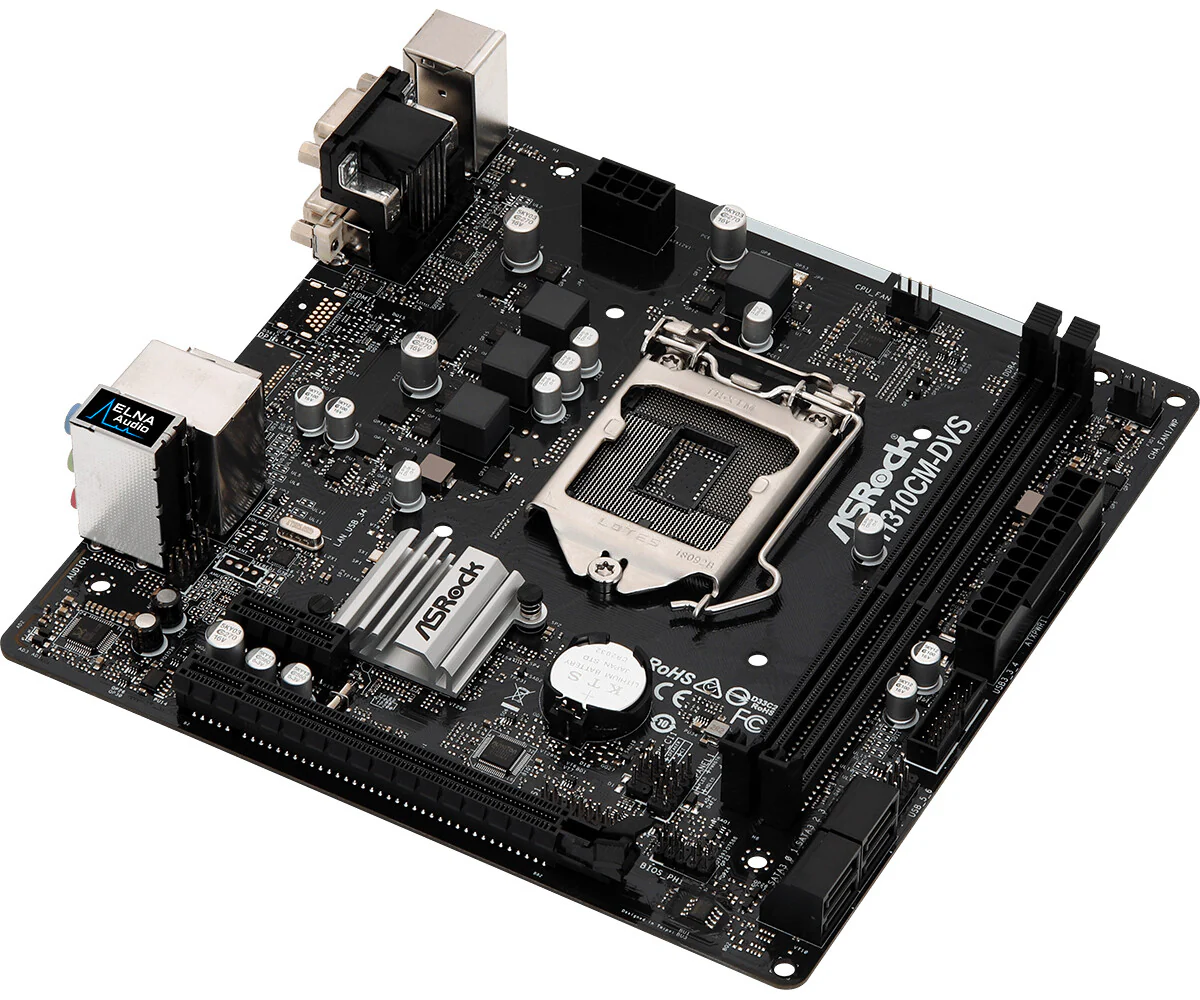

HomeStoreAsrock H310CM-DVS micro ATX motherboard - Intel® H310 LGA 1151
Asrock H310CM-DVS micro ATX motherboard - Intel® H310 LGA 1151
| Processor |
|---|
| Processor thermal power (max) |
95 W |
| Maximum number of SMP processors |
1 |
| Compatible processor series |
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
| Processor socket |
LGA 1151 (Socket H4) |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Unbuffered memory |
Yes |
| Maximum internal memory |
32 GB |
| Supported memory clock speeds |
2133,2400,2666 MHz |
| Non-ECC |
Yes |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Supported memory types |
DDR4-SDRAM |
| Graphics |
|---|
| DirectX version |
12.0 |
| HDCP |
Yes |
| Maximum resolution |
1920 x 1200 pixels |
| Internal I/O |
|---|
| TPM connector |
Yes |
| 12V power connector |
Yes |
| Chassis intrusion connector |
Yes |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| Audio connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
1 |

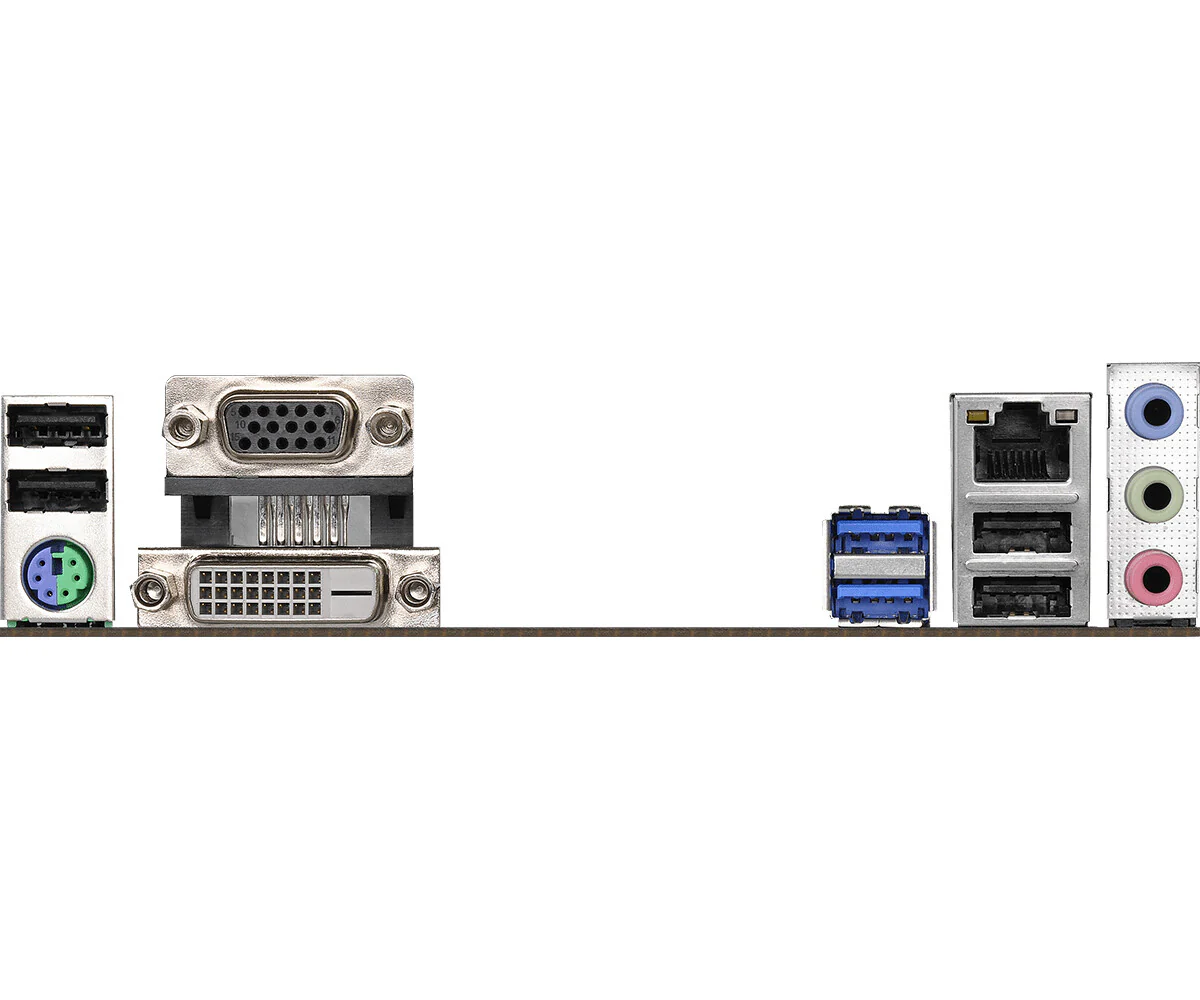

| Rear panel I/O ports |
|---|
| DVI-D ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
4 |
| Network |
|---|
| Wake-on-LAN ready |
Yes |
| LAN controller |
Realtek RTL8111H |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
|---|
| Certification |
FCC, CE, ErP/EuP |
| Windows operating systems supported |
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64 |
| PC health monitoring |
CPU, Fan, Temperature, Voltage |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC887 |
| Motherboard chipset |
Intel® H310 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Expansion slots |
|---|
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express x1 (Gen 2.x) slots |
1 |
| BIOS |
|---|
| System Management BIOS (SMBIOS) version |
2.7 |
| ACPI version |
6.0 |
| BIOS memory size |
128 Mbit |
| BIOS type |
UEFI AMI |
| Processor special features |
|---|
| Intel Extreme Memory Profile (XMP) |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Weight & dimensions |
|---|
| Depth |
188 mm |
| Width |
191 mm |
| Packaging content |
|---|
| Bundled software |
SRock A-Tuning, ASRock XFast LAN |
| Drivers included |
Yes |
| Cables included |
SATA |
| Other features |
|---|
| Utilities included |
Yes |
| Quick installation guide |
Yes |
$39.20Original: $111.99
-65% Asrock H310CM-DVS micro ATX motherboard - Intel® H310 LGA 1151—
