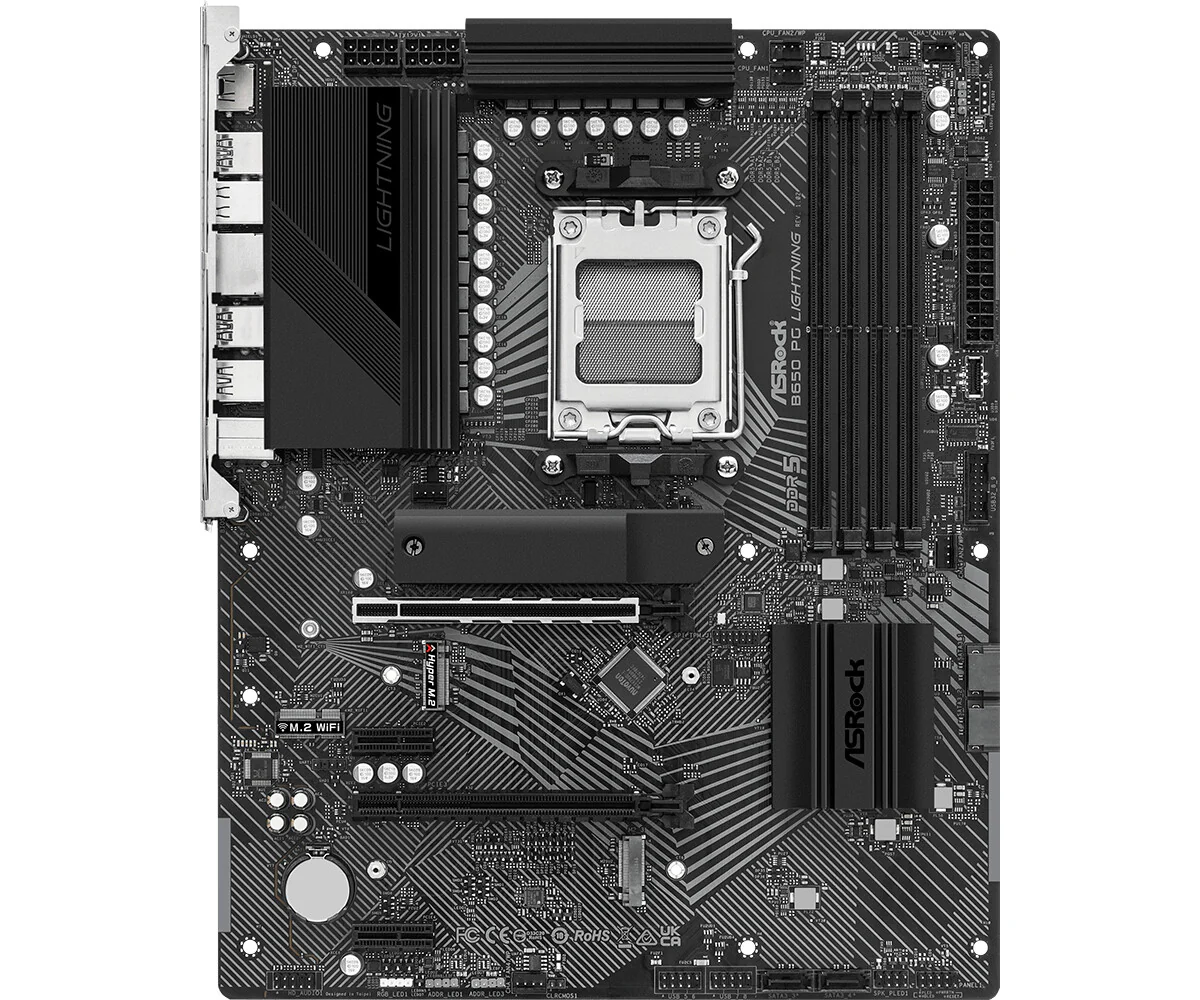

AMD Socket AM5, AMD B650, 4 x DDR5 DIMM, 2.5 Gigabit, 802.11ax Wi-Fi 6E + Bluetooth, ATX

Processor
Processor socket	Socket AM5
Processor manufacturer	AMD

Memory
Unbuffered memory	Yes
Maximum internal memory	128 GB
Supported memory clock speeds	6400,6600,6666,6800 MHz
Non-ECC	Yes
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM

Storage controllers
RAID levels	0, 1, 10
RAID support	Yes
Supported storage drive interfaces	M.2, SATA II
Supported storage drive types	HDD & SSD

Graphics
HDCP	Yes
Graphics card	AMD RDNA 2
Graphics card family	AMD
On-board graphics card	Yes

Internal I/O
RGB LED pin header	Yes
TPM connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Front panel audio connector	Yes
Number of SATA III connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 connectors	2

Rear panel I/O ports
Line-in	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	7
USB 2.0 ports quantity	4

Network
Bluetooth	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi	Yes
LAN controller	Dragon RTL8125BG
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes

Features
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Audio output channels	7.1 channels
Motherboard chipset	AMD B650
Motherboard chipset family	AMD
Motherboard form factor	ATX
Component for	PC

Expansion slots
PCI Express x16 (Gen 5.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 3.x) slots	1

BIOS
BIOS memory size	256 Mbit
BIOS type	UEFI AMI

Weight & dimensions
Depth	244 mm
Width	305 mm

Packaging content
Cables included	SATA
