HomeStoreAsrock B450 Steel Legend ATX motherboard - AMD B450 Socket AM4
Asrock B450 Steel Legend ATX motherboard - AMD B450 Socket AM4
| Processor |
|---|
| Supported processor sockets |
Socket AM4 |
| Maximum number of SMP processors |
1 |
| Compatible processor series |
AMD A |
| Processor socket |
Socket AM4 |
| Processor manufacturer |
AMD |
| Memory |
|---|
| Unbuffered memory |
Yes |
| Maximum internal memory |
128 GB |
| Supported memory module capacities |
4GB, 8GB, 16GB, 32GB |
| Supported memory clock speed (max) |
3533 MHz |
| Supported memory clock speeds |
2133,2400,2667,2933,3200,3533 MHz |
| Non-ECC |
Yes |
| ECC |
Yes |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR4-SDRAM |
| Storage controllers |
|---|
| RAID levels |
0, 1, 10 |
| RAID support |
Yes |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
|---|
| DirectX version |
12.0 |
| HDCP |
Yes |
| Maximum resolution |
4096 x 2160 pixels |
| Parallel processing technology support |
CrossFireX, Quad-GPU CrossFireX |
| Maximum graphics card memory |
2048 MB |
| Internal I/O |
|---|
| RGB LED pin header |
Yes |
| Number of COM connectors |
1 |
| TPM connector |
Yes |
| 12V power connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Chassis intrusion connector |
Yes |
| Number of chassis fan connectors |
3 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel connector |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
2 |

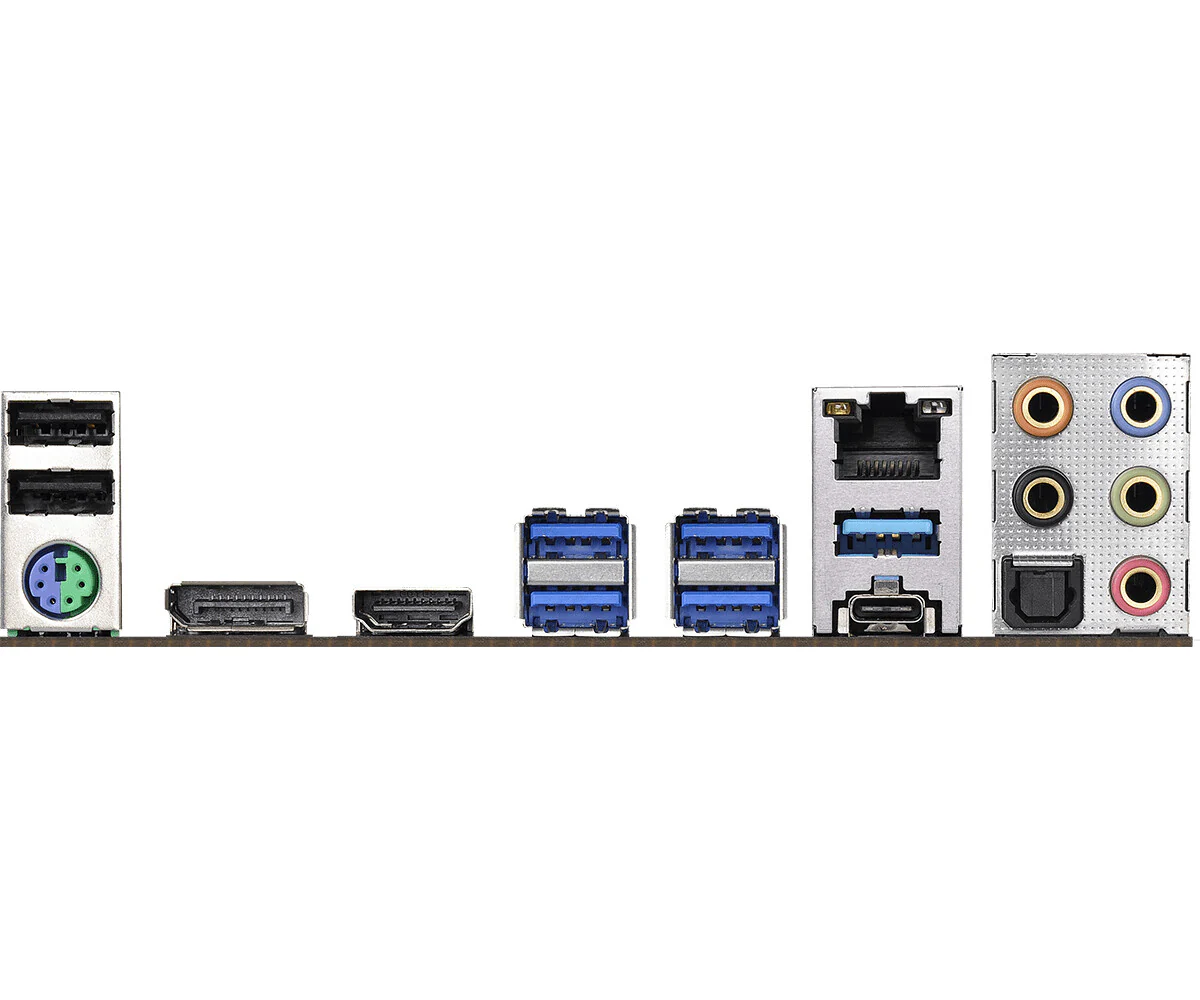

| Rear panel I/O ports |
|---|
| S/PDIF out port |
Yes |
| Microphone in |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
1 |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
2 |
| Network |
|---|
| Wi-Fi |
No |
| Wake-on-LAN ready |
Yes |
| LAN controller |
Realtek RTL8111H |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
|---|
| Certification |
FCC, CE |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| PC health monitoring |
CPU, Fan, Temperature, Voltage |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC892 / Realtek ALC897 |
| Motherboard chipset |
AMD B450 |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
2 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express x16 (Gen 2.x) slots |
1 |
| PCI Express x1 (Gen 2.x) slots |
1 |
| BIOS |
|---|
| System Management BIOS (SMBIOS) version |
2.3 |
| ACPI version |
5.1 |
| BIOS memory size |
128 Mbit |
| BIOS type |
UEFI AMI |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Weight & dimensions |
|---|
| Depth |
244 mm |
| Width |
305 mm |
| Packaging content |
|---|
| Drivers included |
Yes |
| Cables included |
SATA |
- ASRock B450 Steel Legend Series Motherboards
$182.02
Asrock B450 Steel Legend ATX motherboard - AMD B450 Socket AM4—$182.02
